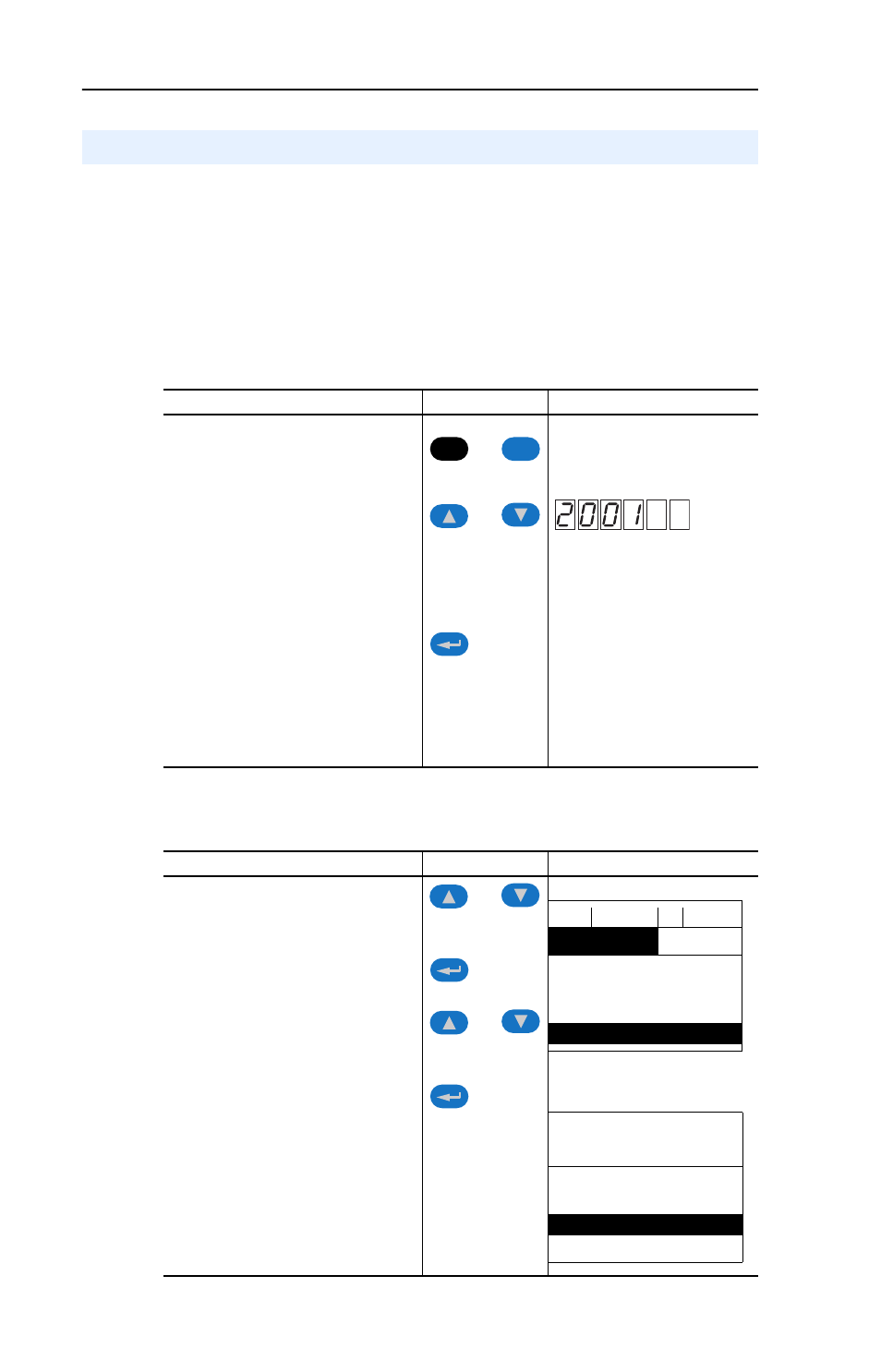

3-14 Configuring the Module
If your drive has either an LED or LCD HIM (Human Interface Module),
access parameters in the 1769-SM1 module as shown below. It is
recommended that you read through the steps for your HIM before
performing the sequence. For additional HIM information, refer to your
PowerFlex Drive User Manual or the HIM Quick Reference card.
Using an LED HIM
Using an LCD HIM
Using the PowerFlex HIM
Step Key(s) Example Screens
1. Press the ALT and then Sel
(Device) to display the Device
Screen.
2. Press the Up Arrow or Down
Arrow to scroll to the 1769-SM1
module. Letters represent files in
the drive, and numbers represent
ports. The module is usually
connected to port 2.
3. Press the Enter key to enter your
selection. A parameter database
is constructed, and then the first
parameter is displayed.
4. Edit the parameters using the
same techniques that you use to
edit drive parameters.
Step Key(s) Example Screens
1. In the main menu, press the Up
Arrow or Down Arrow to scroll to
Device Select.
2. Press Enter to enter your
selection.
3. Press the Up Arrow or Down
Arrow to scroll to the 1769-SM1
module.
4. Press Enter to select the module.
A parameter database is
constructed, and then the main
menu for the module is
displayed.
5. Edit the parameters using the
same techniques that you use to
edit drive parameters.
OR
Sel ALT
Device
OR
OR
F-> Stopped Auto
0.00 Hz
Main Menu:
Diagnostics
Parameter
Device Select
Port 2 Device
1769-SM1
Main Menu:
Diagnostics
Parameter
Device Select
