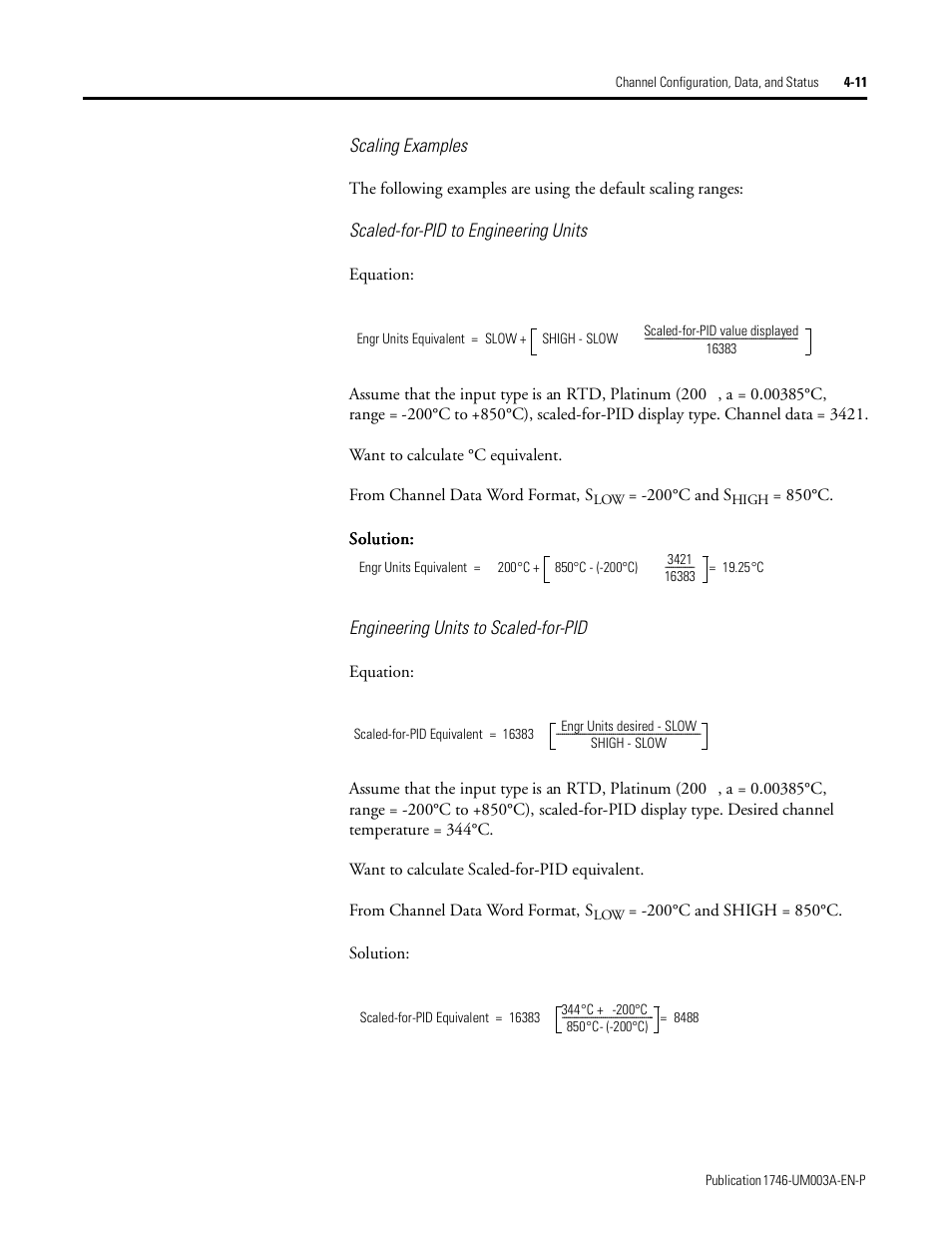

Scaling examples, Scaled-for-pid to engineering units, Engineering units to scaled-for-pid – Rockwell Automation 1746-NR8 SLC 500 RTD/Resistance Input Module User Manual User Manual
Page 59
