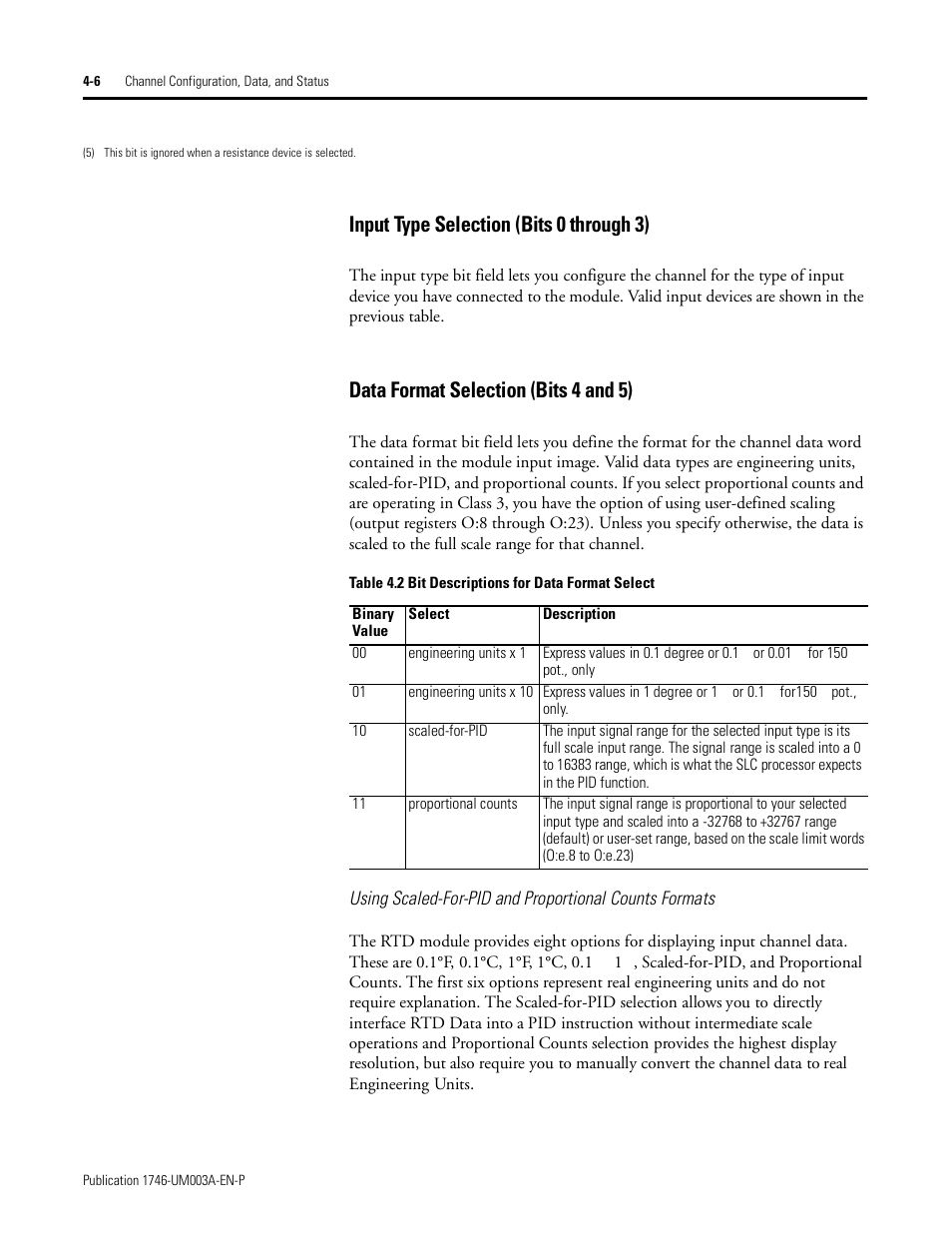

Input type selection (bits 0 through 3), Data format selection (bits 4 and 5) – Rockwell Automation 1746-NR8 SLC 500 RTD/Resistance Input Module User Manual User Manual
Page 54
