1747-ASB Module 1 I/O Mapping Details
Because 1747-ASB module 1 is configured for 2-slot addressing, has
eight logical groups and 16 I/O slots available, all of the slots present
are mapped into the PLC-5/40 image. No extra slots in the chassis or
extra words in the image remain. Each slot is assigned one byte in the
PLC-5/40 input and output images.
1747-ASB module 1 is configured for block transfer specialty I/O
mode. Therefore, all specialty I/O modules are block transfer mapped.
If specialty I/O modules are used, their paired slots can only use
8-point (or smaller) discrete input, discrete output, or block transfer
mapped specialty modules, as shown below. 16-point discrete output
modules can be used if their paired slots have discrete (16-point or
less) input modules in them, as shown below. 32-point modules
cannot be used with 2-slot addressing.

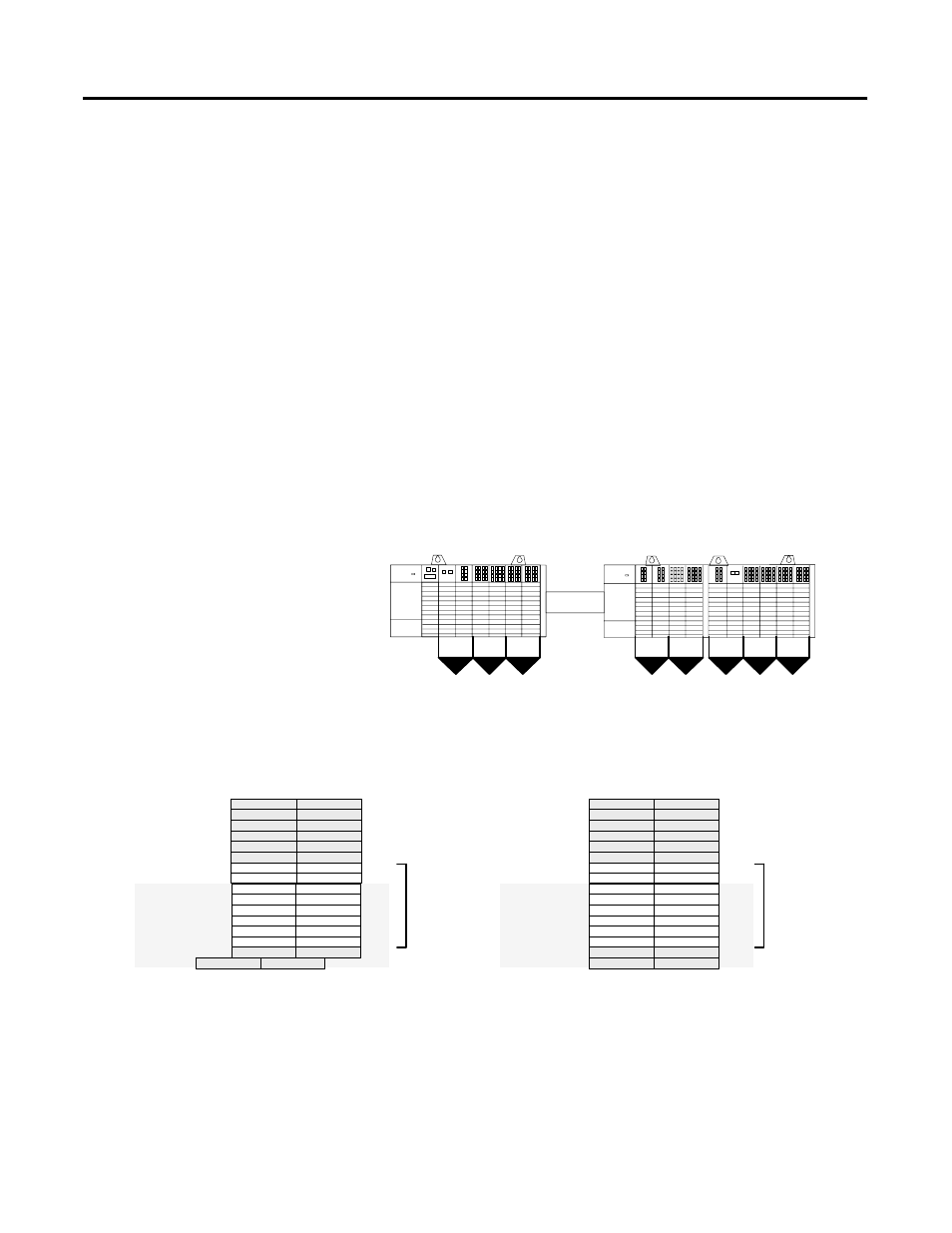

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
