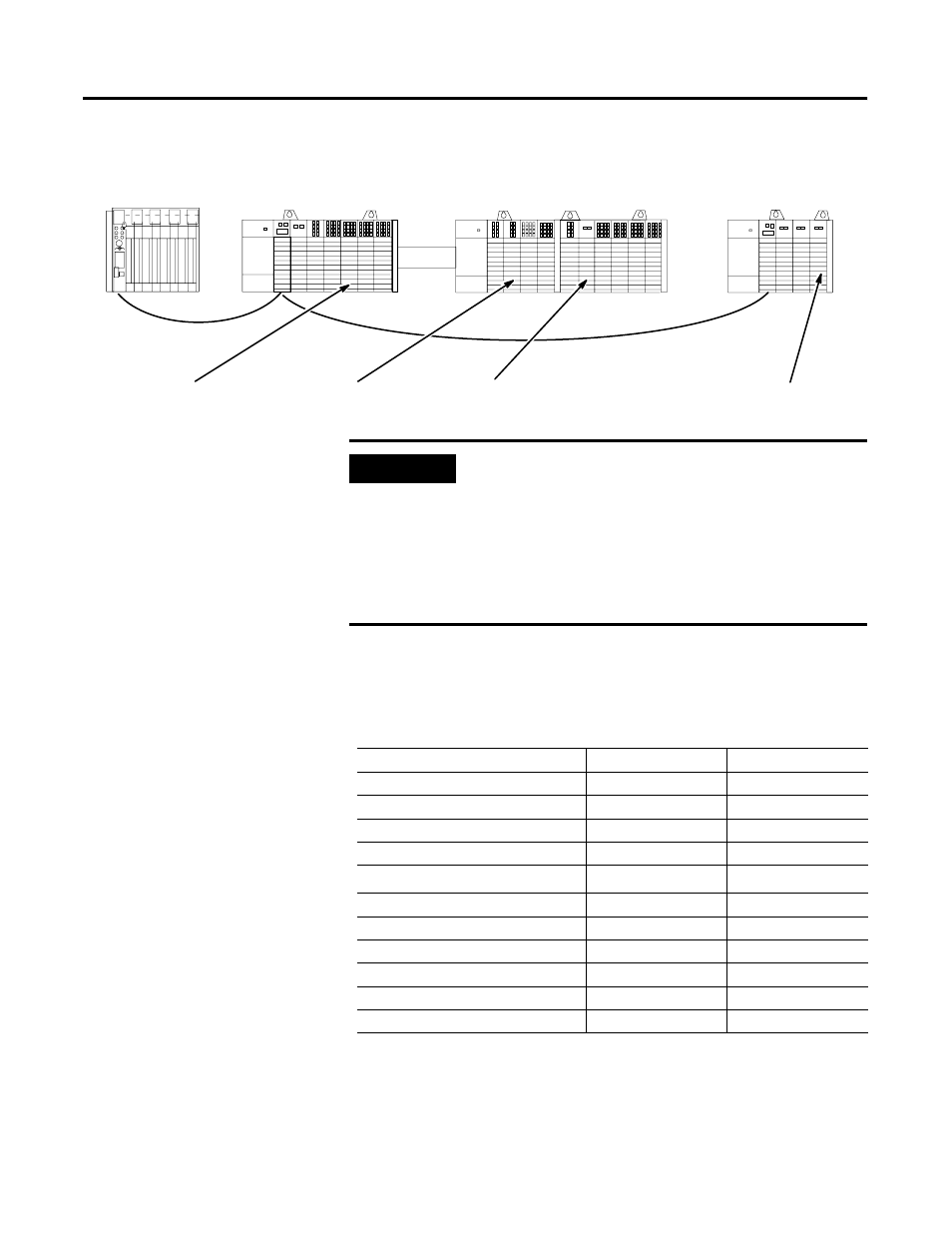

RIO Device Configuration
The 1747-ASB modules are configured in the following manner.
The 1771 chassis is configured for 1-slot addressing. The PLC-5/40 is
configured for scanner mode operation at 57.6K baud.
ASB 1 1746
–NIO4
V
1746
–OW8
1746
–OW16
1746
–IA16
1746
–OG16
1746
–IG16
ASB 2 1746
–NI4
1746
–NO4I
1746
–NIO4I
1746
–OW8
1746
–OV8
1746
–OB16
1746
–IB16
1746
–OA8
1746
–NO4V
1746
–OW16
1746
–IA16
1746
–OV16
1746
–IV16
The switch is connected
to input 12. The bulb is connected
to output 5.
Meter 2 is connected
to output 2. Meter 1 is connected
to output 0.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 0 1 2 3
PLC-5/40
IMPORTANT
All bit numbers in this example are in octal. The
1746 16- and 32-point modules must have their LED
numbers and wiring terminal numbers labeled in
octal. All Series C or later modules include an octal
conversion kit which allows you to convert from
decimal to octal. This kit is also available as a
replacement part through your Rockwell Automation
distributor.
Function 1747-ASB Module 1 1747-ASB Module 2
Starting logical rack number 1 3
Starting logical group number 6 0
Image size (number of logical groups) 8 6
Addressing mode 2-slot 1/2-slot
Specialty I/O mode
Block transfer
(1) Discrete
Baud rate 57.6K 57.6K
Last chassis Yes Yes
Hold last state Yes No
Processor restart lockout Yes No
Link response Unrestricted Unrestricted
Primary/complementary chassis Complementary Complementary
(1) When block transfer mode is selected, all specialty I/O modules are block transfer mapped. Their data is
exchanged on the RIO link using RIO block transfers.
