Remote i/o overview, Remote i/o overview -2, How the scanner interacts with adapters -2 – Rockwell Automation 1747-ASB Remote I/O Adapter User Manual

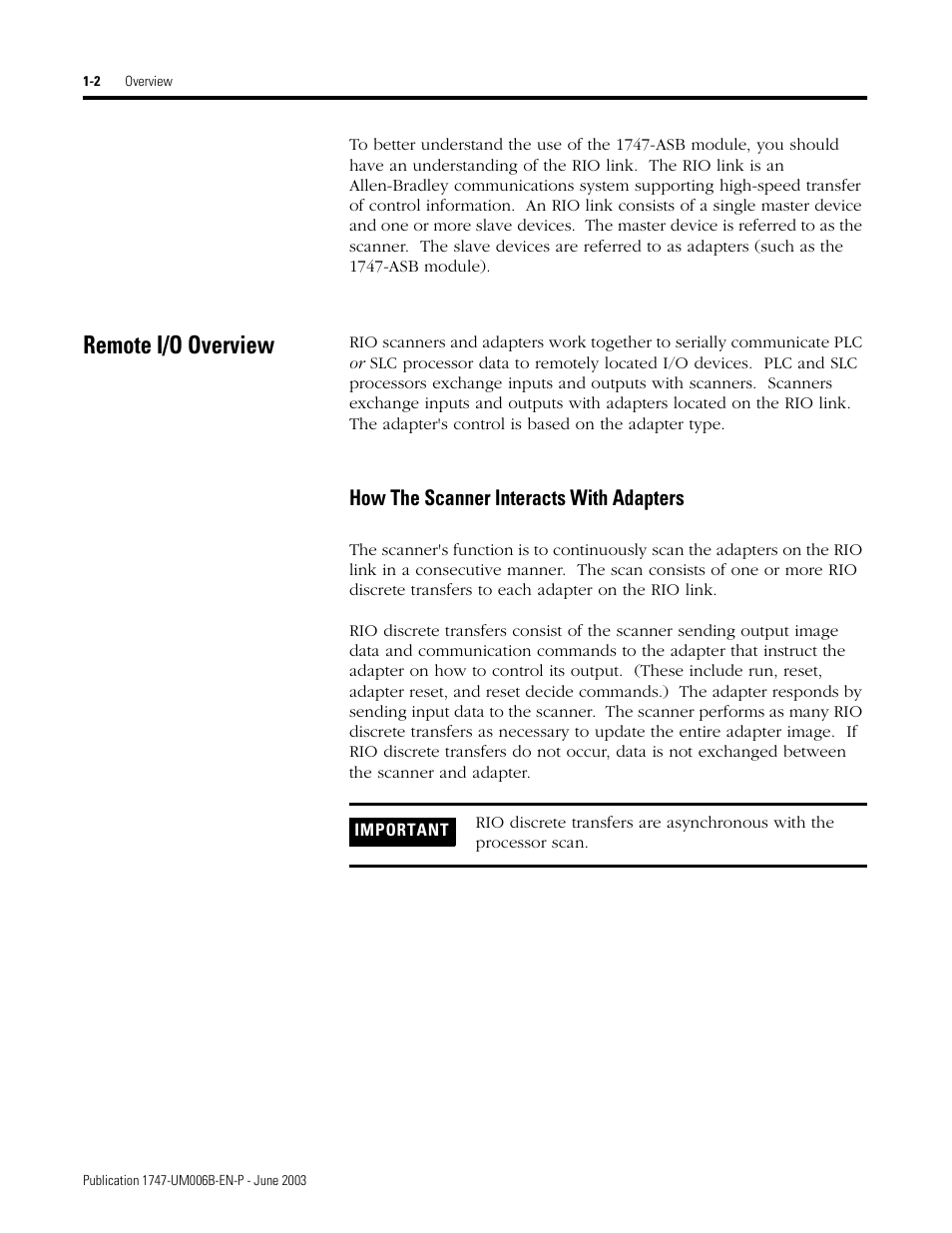

Page 16: How the scanner interacts with adapters
