Configuring and Installing Your Module

Chapter 3

3Ć9

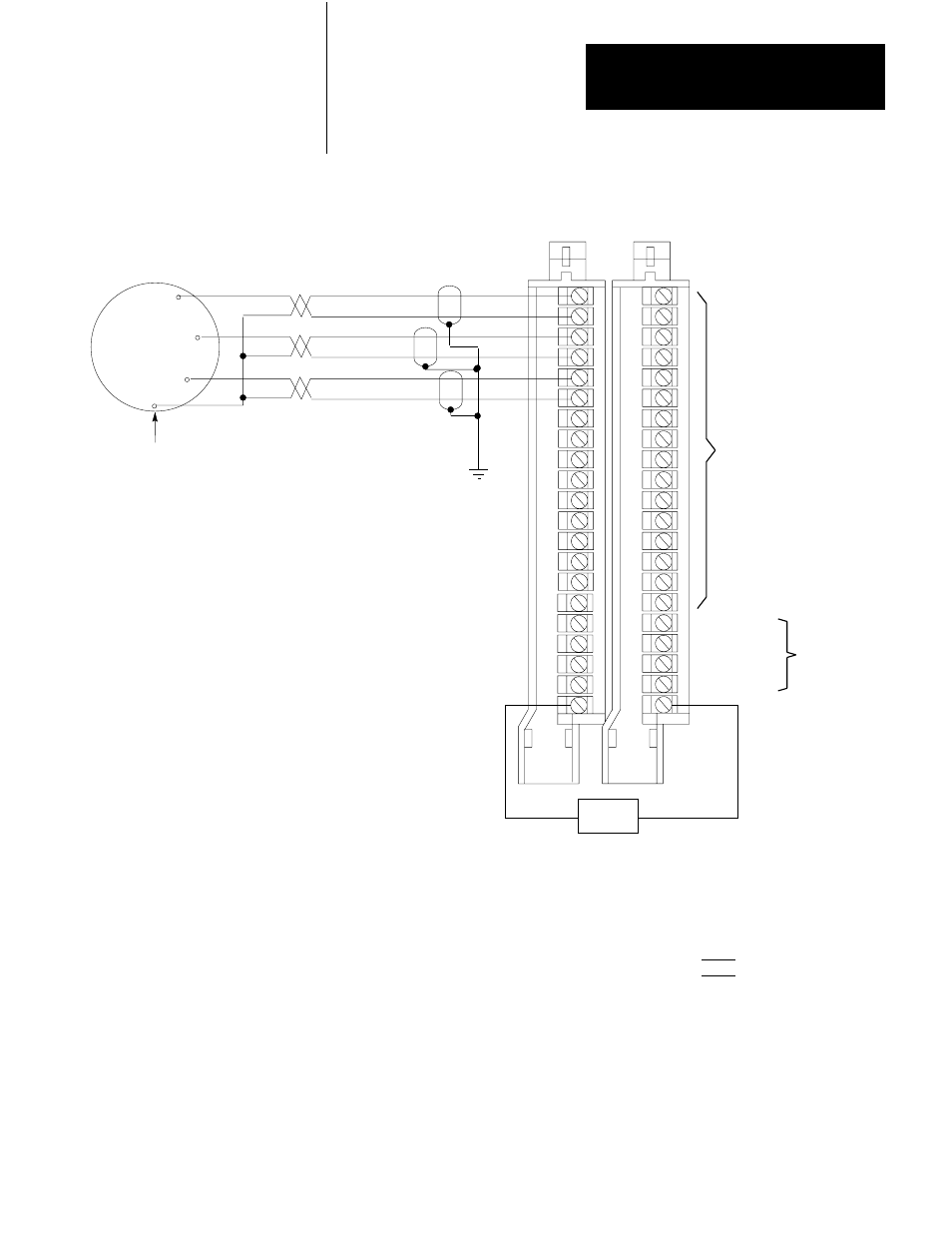

Figure 3.6

SingleĆended Output Encoder Connection Diagram

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

Bit 10
Common
Bit 11
Common

12836

Left

Wiring

Arm

Right

Wiring

Arm

From

Encoder

+5V dc Input Supply

+

-

Power Supply

Common

Single-ended

Ouput Encoder

Bit 0
Common
Bit 1
Common
Bit 2
Common

Other bit connections not shown. Continue in

this manner until you make all bit connections.

Output

Circuitry

If the encoder uses less than 12 bits, jumper the

unused input terminals.

Connecting a Differential Output Encoder

Figure 3.7

is the connection diagram for a differential output encoder.

Connect the bit 0 signal line to terminal 1 and the bit 0 line to terminal 2.
Connect bit 1 to terminal 3 and the bit 1 line to terminal 4. Continue in
this way for all encoder channels.

If the encoder has less than 12 signal bits, jumper the unused input
terminals. For example, if you are using a 10-bit encoder, jumper
terminals 19 and 20 and terminals 17 and 18 on the right wiring arm.
