Configuring and Installing Your Module
Chapter 3
3Ć3

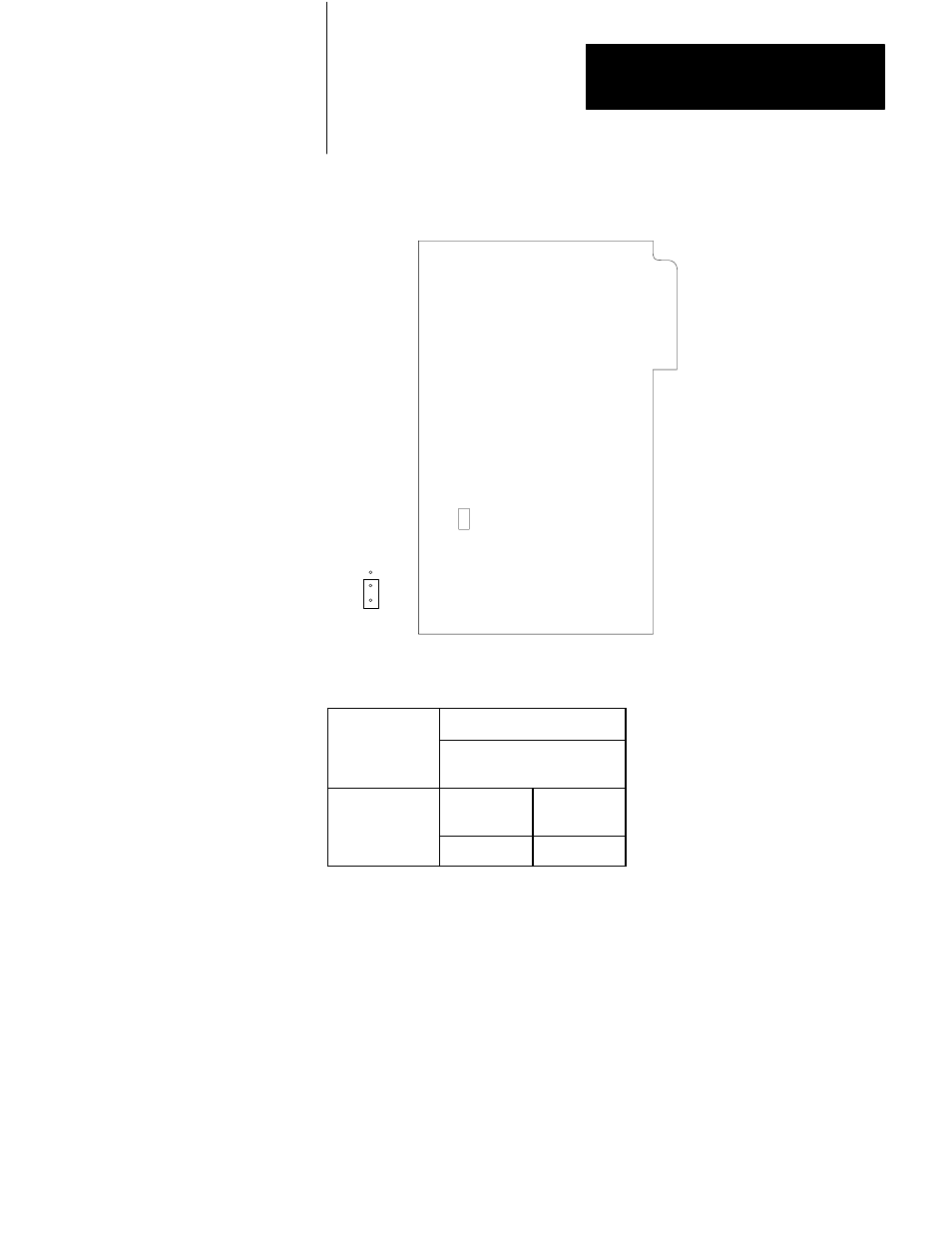

Figure 3.2
Configuration Plug Location and Settings (Right Board)
E1
Right Board
13305
Down
Configuration Configuration Plug Settings
Plug State of Outputs After Loss
of Input Power Supply
E1
Turn
Off
Last
State
Up Down
Selecting Encoder Format and Input Signal Mode
Set configuration plugs E1 through E12 (on the left board) to match the
signal mode of each encoder input channel to the encoder. Set
configuration plugs E13 and E14 (also on the left board) to match the data
format of your encoder.
Selecting Encoder Rotational Direction
Use configuration plug E15 on the left board to indicate the direction of
shaft rotation that causes the absolute position to increase for Gray code
