Publication 1734-UM004F-EN-E - December 2012
Configure Modules in RSLogix 5000 Software 63

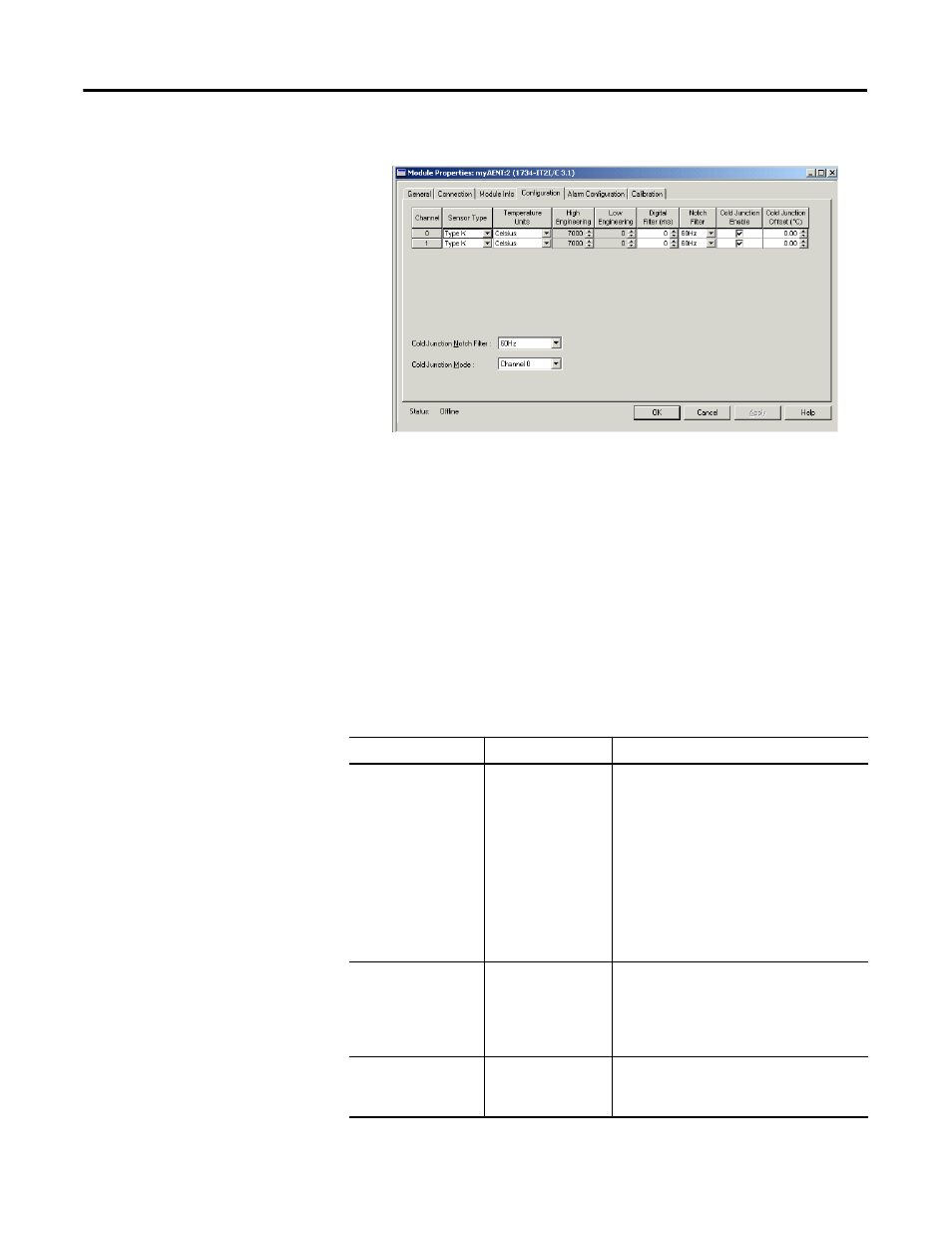

1. Click Configuration to display the dialog.
2. Complete entries for the channel indicated per the table.
For more details about these parameters, see see Configure Your
Thermocouple Input Module on page 24.
3. From the dialog, perform one of the following:
• Click a tab at the top of the dialog to continue making entries.
• Click OK to save changes and close the dialog.
• Click Cancel to return to default values.
• Click Apply to save changes you made on any of the dialogs and
continue to display the dialog, noting that you enable the Apply
button when you make changes to any of the dialogs.
For This Value
Select
Comments
Sensor Type
mV (No
Linearization)
Type B
Type C
Type E
Type J
Type K
Type N
Type R
Type S
Type T
Default is Type K.
Temperature Units
Custom Scale
Celsius
Fahrenheit
Kelvin
Rankine
Default is Celsius
High Engineering
-32,768...32,767.
Default is 7000.
This is enabled when you select Custom
Scale for Temperature Units.
