62 Configure Modules in RSLogix 5000 Software

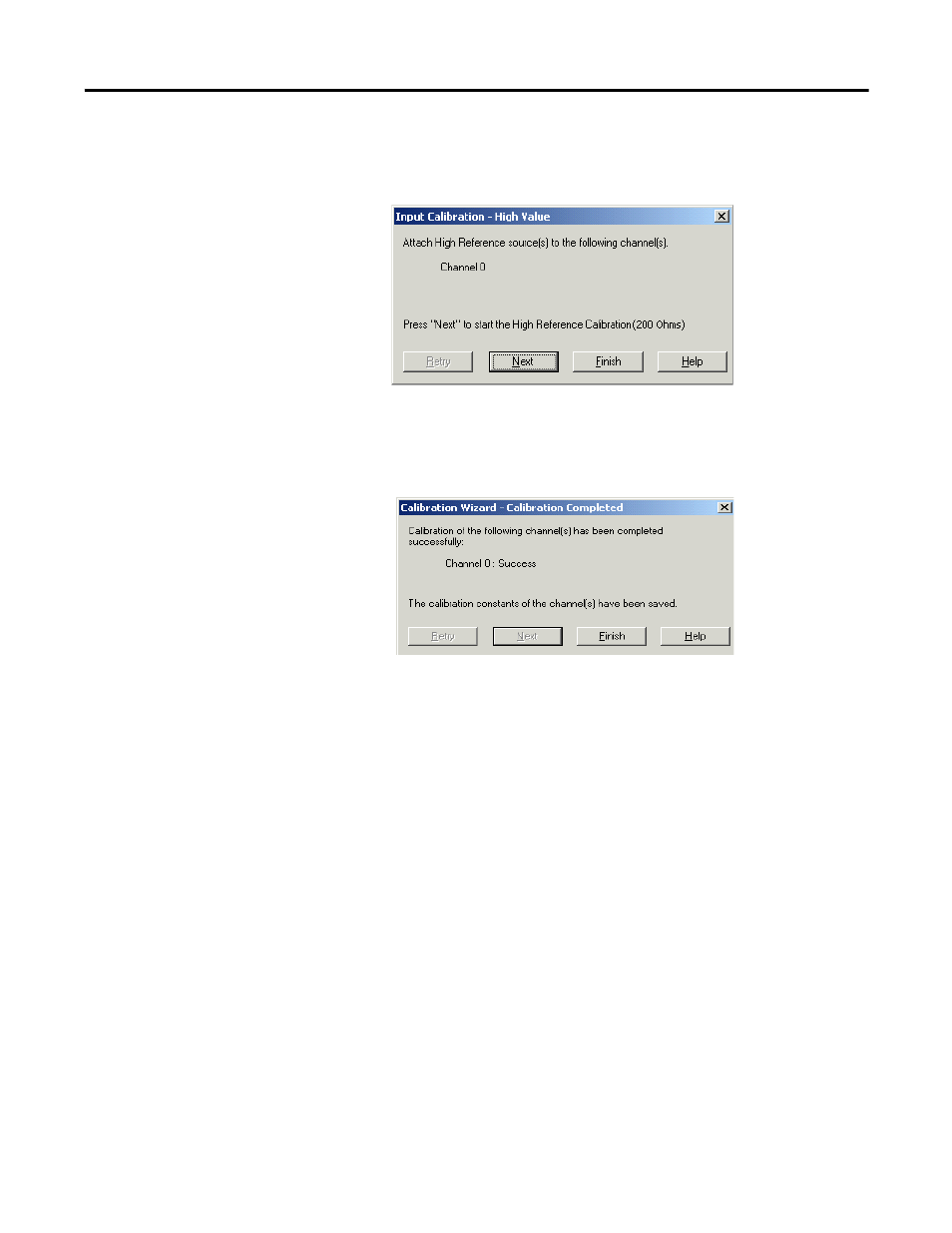

6. From the Low Value dialog, click Next to start calibration.
The High Value dialog appears.
7. From the High Value dialog, click Next to start calibration.
The Calibration Completed dialog appears. It shows that you saved the
changed calibration constants of the channel.
Work with Dialogs for Thermocouple Modules
Complete entries for the following dialogs for thermocouple modules.
• Configuration
• Alarm Configuration
• Calibration
Configuration Dialog
The Configuration dialog displays configuration parameters for each channel
in individual rows on the grid. The 1734-IT2I module has two input channels.
The Configuration dialog does not display for Listen-Only connections. To
complete the entries on this dialog, proceed as follows.
