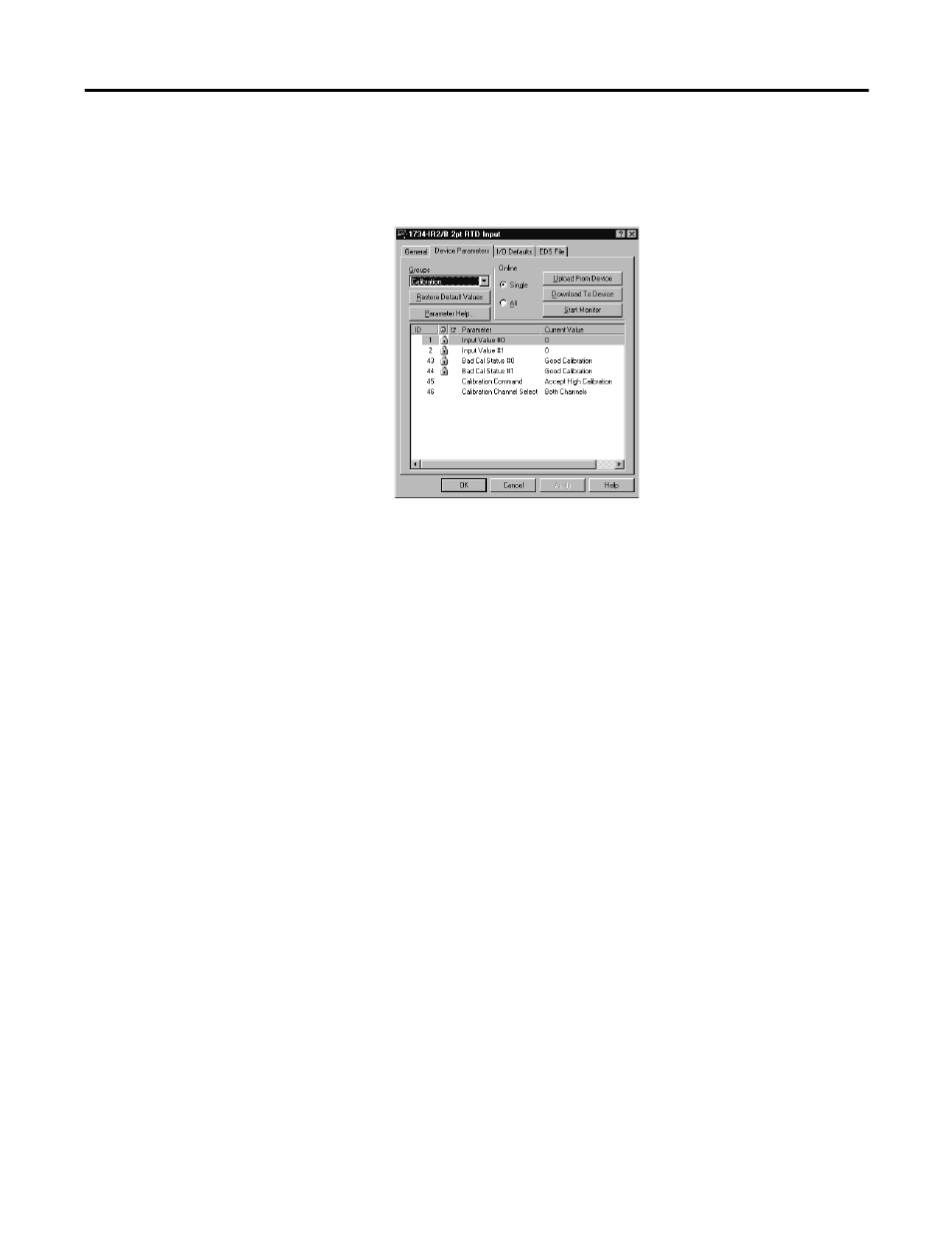

14. From the General Parameters dialog, click the Download to Device
button.
Calibration is done as soon as High and Low calibration for the selected
channels is done successfully.
If you are calibrating each channel separately, repeat the procedure to calibrate
the other channel.
Both high and low inputs must be accepted in order for the module to finish
calibration.
Calibration is now complete.
If the module does not accept calibration (status indicator still blinking), click
Calibration Command, select Abort Calibration and start over.
Chapter Summary
This chapter explained how to calibrate the modules. The next chapter
explains the module status indicators.
