Configuring the 1756-HYD02 Module Chapter 3
Reconfiguring Module
Parameters in Run Mode
Your module can operate in Remote Run mode or Hard Run mode. You can
only change any configurable features that are enabled by RSLogix 5000 in
Remote Run mode.
If any feature is disabled in either Run mode, change the controller to Program
mode and make the necessary changes.
Reconfiguring Module
Parameters in Program
Mode
Follow these steps to change configuration in Program mode.
1.
Make sure the module is in Program Mode.
2.
Make any necessary changes.
3.
Download the new configuration.
4.
Return to Run Mode, if necessary.

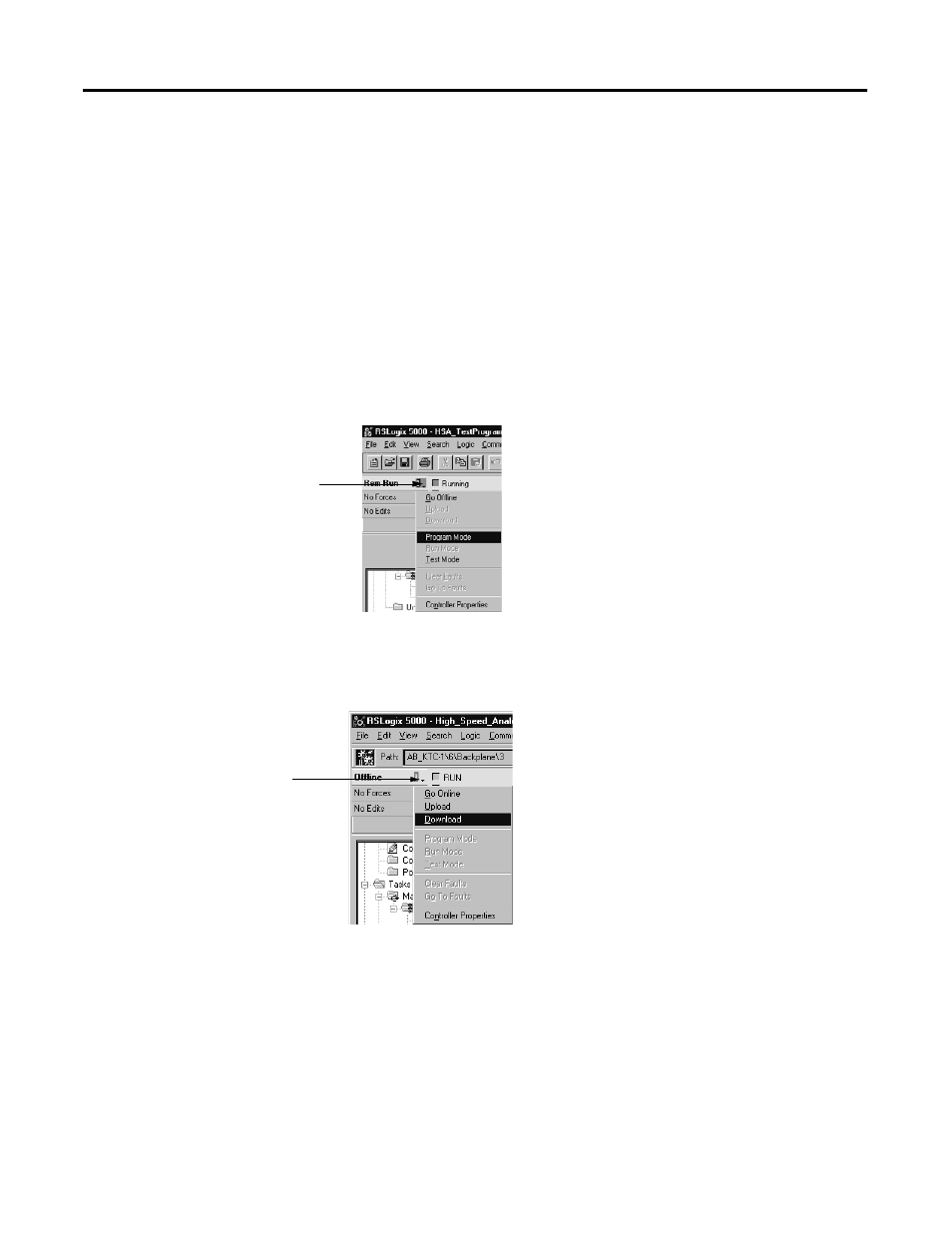

Use this pull-down menu to
switch to Program mode
Use this pull-down
menu to download the
new configuration.
