Rockwell Automation 1756-HYD02 ControlLogix Hydraulic Servo Module User Manual
Page 10
10
Publication 1756-UM525A-EN-P - June 2003
Chapter 1 What is the 1756-HYD02 Module?
Using A ControlLogix
Hydraulic Servo Module in
the ControlLogix System
A ControlLogix Hydraulic Servo module mounts in a ControlLogix chassis
and uses a removable terminal block (RTB) or interface module (IFM) to
connect all field-side wiring.
Before you install and use your module you should have already:
• installed and grounded a ControlLogix chassis and power supply. To
install these products, refer to the publications listed in on page 7.
• ordered and received an RTB or IFM and its components for your
application.

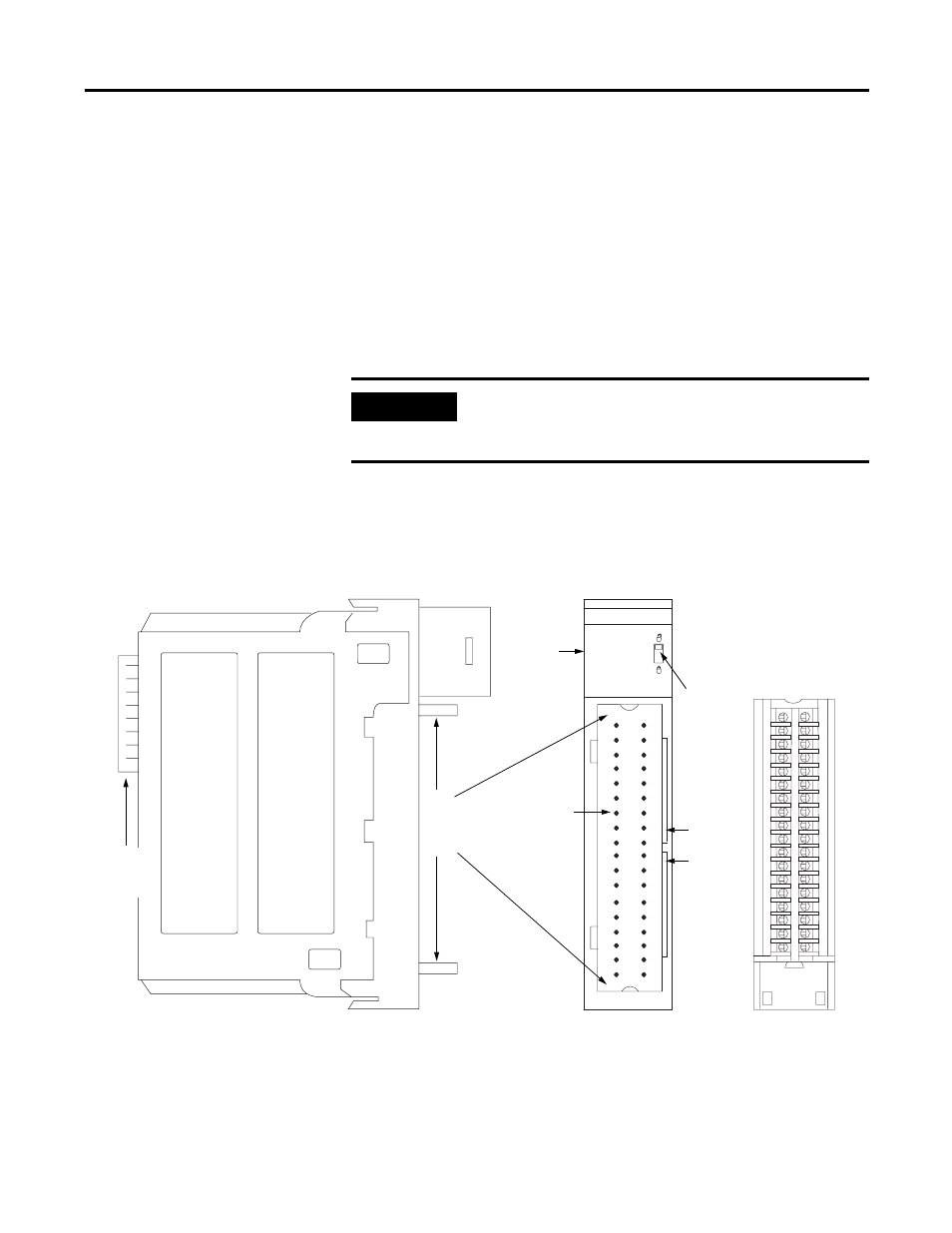

Physical Features of the ControlLogix Hydraulic Servo Module
IMPORTANT
RTBs and IFMs are not included with your module purchase.
You must order them separately. For more information, contact
your local distributor or Rockwell Automation representative.
ControlLogix
Backplane
Connector
Removable
Terminal
Block
Indicators
Locking tab
Slots for
keying the
RTB
Connector
pins
Top and
bottom
guides
41623
