Chapter 2 Install Your ArmorPOINT I/O Adapter
Mount the Adapter and I/O
Base
To mount the adapter on a wall or panel, use the screw holes provided in the
adapter. A mounting illustration for the adapter with several attached I/O bases is
shown below.

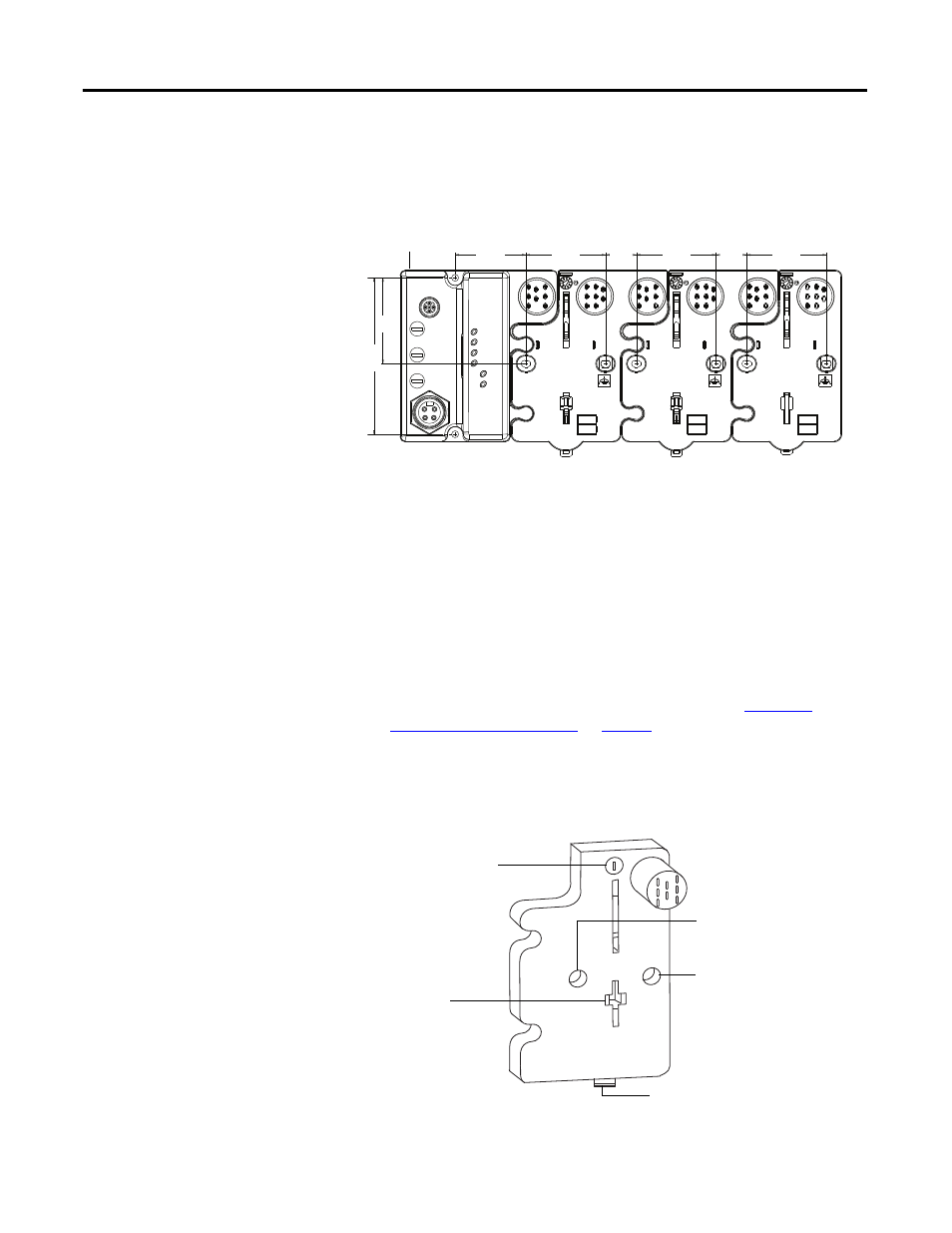

Mounting illustration for the ArmorPOINT adapter and I/O Mounting bases
Install the adapter and its I/O mounting base as follows:
1. Lay out the required points as shown above in the drilling dimension
drawing.
2. Drill the necessary holes for M4 (#8) machine or self-tapping screws.
3. Mount the adapter using M4 (#8) screws.
4. Ground the system using the ground lug connection in the adapter’s I/O
Mounting base. (The ground lug connection is also a mounting hole).
5. Add one or more I/O modules and their respective I/O Mounting bases to
the adapter and its I/O Mounting base as required. See
for details.
6. Mount the terminating base shipped with the adapter as the last base in the
backplane instead of the I/O Mounting base shipped with the I/O
module.
43769
52 mm
(2.05 in)
52 mm
(2.05 in)
52 mm
(2.05 in)
20 mm
(0.79 in)
20 mm
(0.79 in)
56 mm
(2.20 in)
Adapter
46.2 mm
(1.82 in)
102 mm
(4.02 in.)
43787
Mounting hole
Ground lug connection
Keyswitch
Latching
mechanism hole
Terminating Base
Latching mechanism
