Page 104
92
Rockwell Automation Publication 1738-UM005A-EN-P - July 2013
Appendix B Adapter Web Dialogs

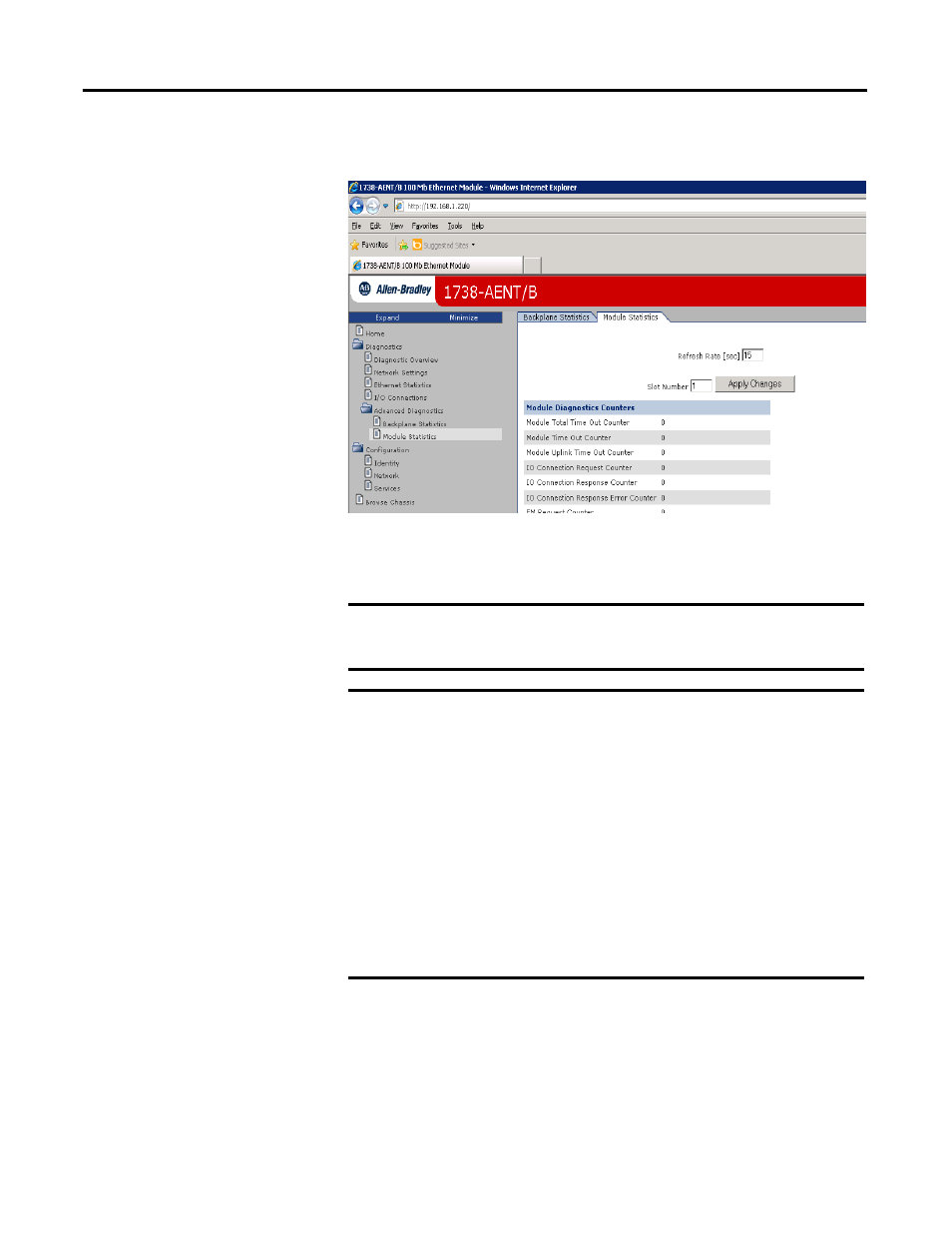

3. From the Advanced Diagnostics page, select Module Statistics to see values
similar to those shown.
Work with the
Configuration Pages
To work with the
Configuration pages, follow these procedures.
IMPORTANT
The values on these pages are in non-volatile memory. Changes to
these parameters do not take effect until you reset or cycle power
through the I/O adapters.
IMPORTANT
If you set the value of the I/O adapters switch to 888
and then
power cycle the module, the following occurs:
·
The DHCP Enabled function is enabled (set to True).
·
The Ethernet link is negotiated automatically. The Auto Negotiate
function is set to True.
·
The web server is enabled. The Disabled Web Server function is
disabled.
·
The Ethernet port are disabled. Both ports are re-enabled once the
switches are returned to their previous value and power is cycled.
·
The password for this page resets to the factory default whih is
"password".
Note the value of the switches before you enter the 888 value
because you must return the adapter to those values once this
process is complete.
