Download the eds file, Embedded in the module – Rockwell Automation 193-DNENCATR EtherNet/IP Communications Auxiliary User Manual User Manual
Page 24

24
Rockwell Automation Publication 193-UM014B-EN-P December 2011
Chapter 2
• embedded in the module OR
• the Allen-Bradley EDS file download website.
Download the EDS File
Embedded in the Module
The EDS file for the EtherNet/IP Communications Auxiliary is embedded
within the module. After the IP address for the module has been configured,
connect the module to same Ethernet network as a personal computer. Using a
web browser on the personal computer, a user can download the EDS file using a
web browser by following these steps:

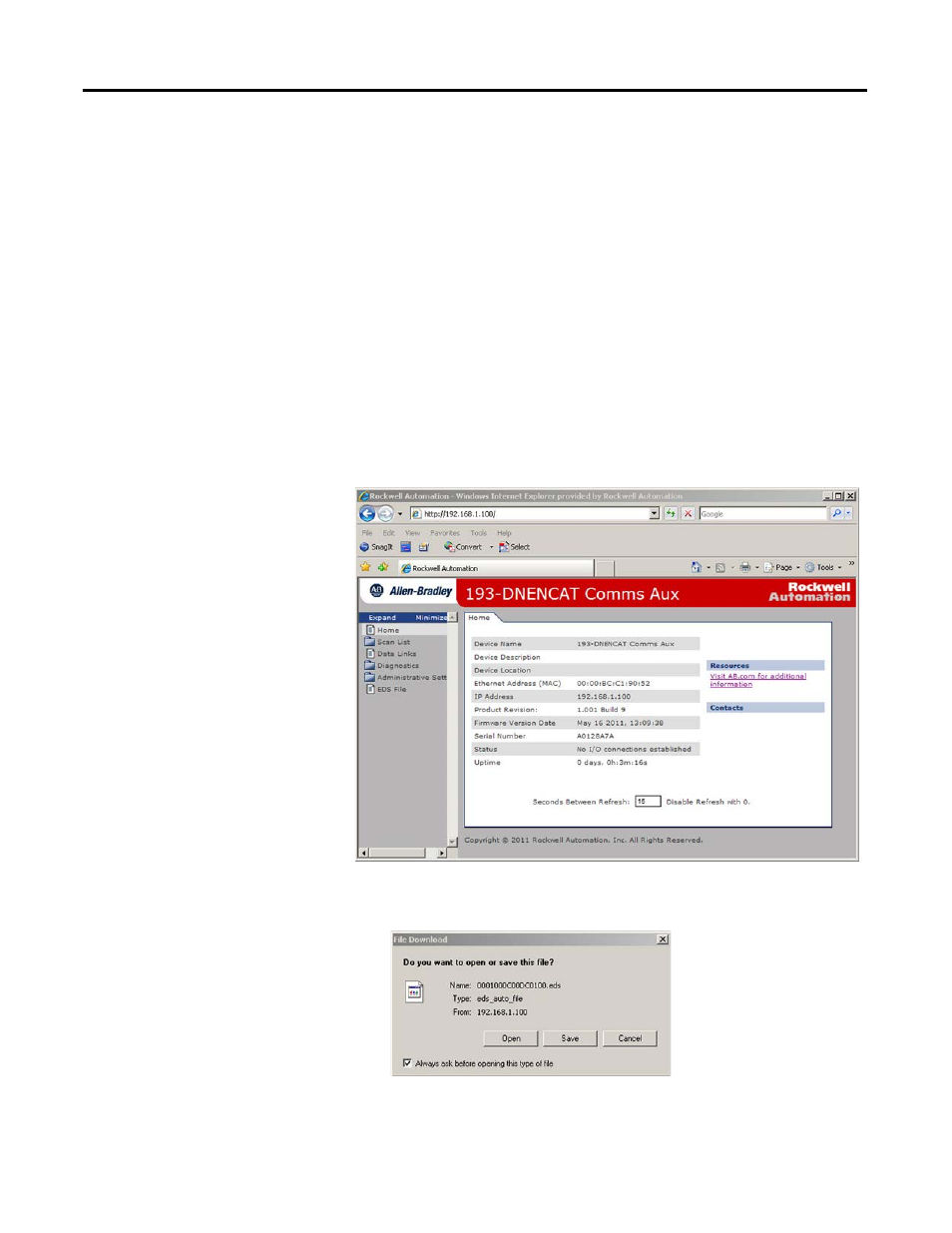

1.
Type the IP address of the EtherNet/IP Communications Auxiliary on the
address line of the web browser.
2.
Select EDS File link
3.
Click Save to save the EDS file to the personal computer.
