Rockwell Automation Publication 750COM-UM005B-EN-P - June 2014 59
Viewing Option Module Web Pages Chapter 6
Device Information Pages
Device information pages are viewed by clicking on the respective links in the
navigation pane.
(1) Information shown only when supported by the device.

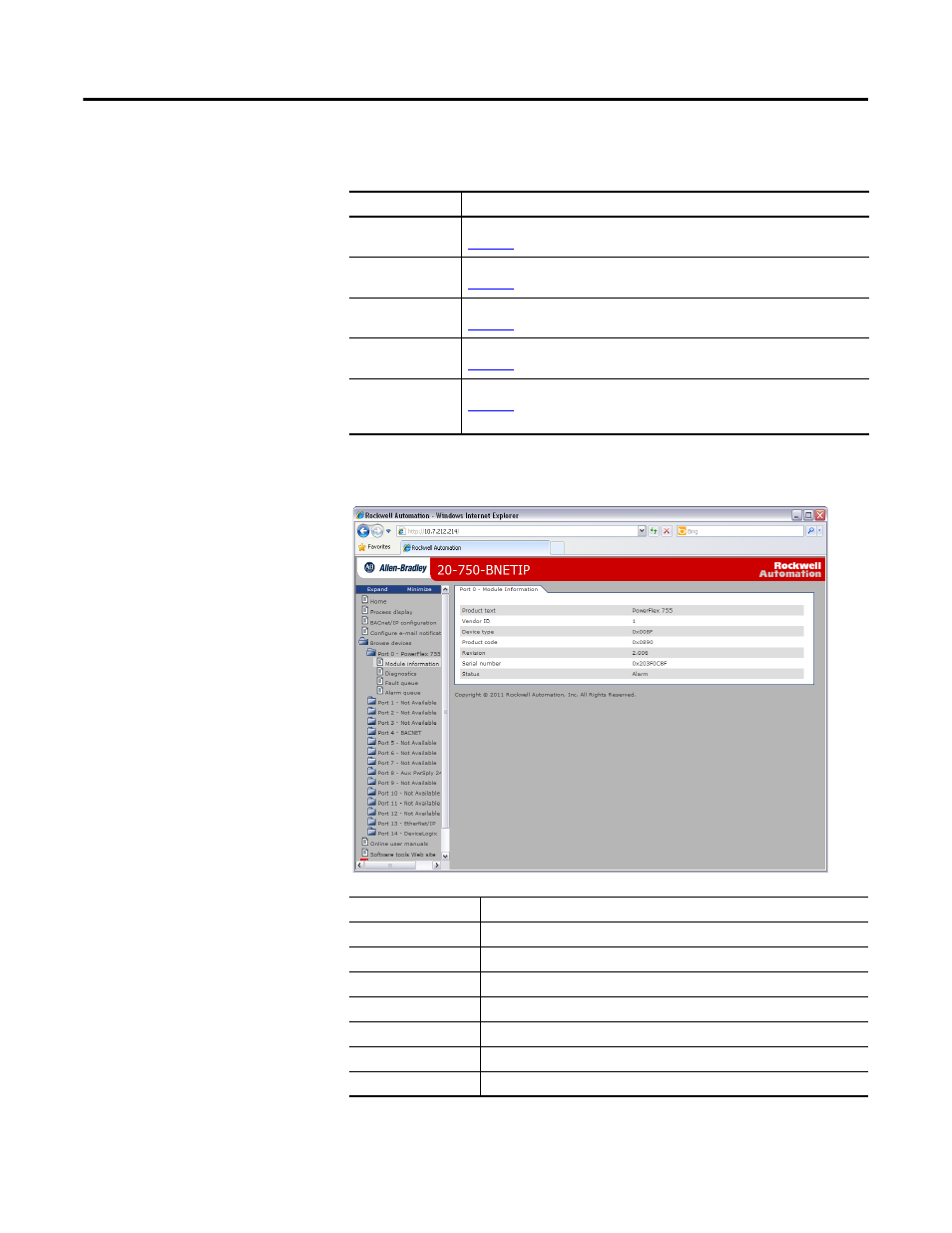

Figure 12 - Example of Port 0 (PowerFlex 750-Series Drive) Module Information Page
Web Page Description
Module Information Shows module information for the respective Port device. For example,
Figure 12 shows module information for the Port 0 device (host drive).
Diagnostic Items Shows diagnostic item information for the respective Port device. For example,
Figure 13 shows diagnostic items for the Port 0 device (host drive).
Fault Queue Shows fault queue information for the respective Port device. For example,
Figure 14 shows the fault queue for the Port 0 device (host drive).
Alarm Queue Shows alarm queue information for the respective Port device. For example,
Figure 15 shows the alarm queue for the Port 0 device (host drive).
Event Queue (1) Shows event queue information for the respective Port device. For example,
Figure 16 shows the event queue for the Port 4 device (BACnet/IP option
module).
Information Description
Product text Text identifying the device
Vendor ID 1 = Allen-Bradley
Device type 0x008F (143 decimal)
Product code Code for the product name and its rating
Revision Firmware revision used by the device
Serial number Serial number of the device
Status Operating status of the device (for example, Alarm)
