Chapter 3 Configuring the Option Module
Restoring Option Module
Parameters to Factory
Defaults
As an alternate reset method, you can restore the option module parameters by
using a MEMORY folder menu item instead of using
Device Parameter 03 -
[Reset Module] described in Resetting the Option Module on page 33 . The
MEMORY folder method provides two ways to restore the option module
Device and Host parameters:
• ALL—restores ALL option module Device and Host parameters to their
factory default values.
• MOST—restores MOST option module Device and Host parameters—
except the following parameters which are used for network setup:
–
Device Parameters 04 through 07 - [IP Addr Cfg 1-4]
–
Device Parameters 08 through 11 - [Subnet Cfg 1-4]
–
Device Parameters 12 through 15 - [Gateway Cfg 1-4]
–
Device Parameter 16 - [DHCP]
Follow these steps to restore option module
Device and Host parameters to their
factory default values.

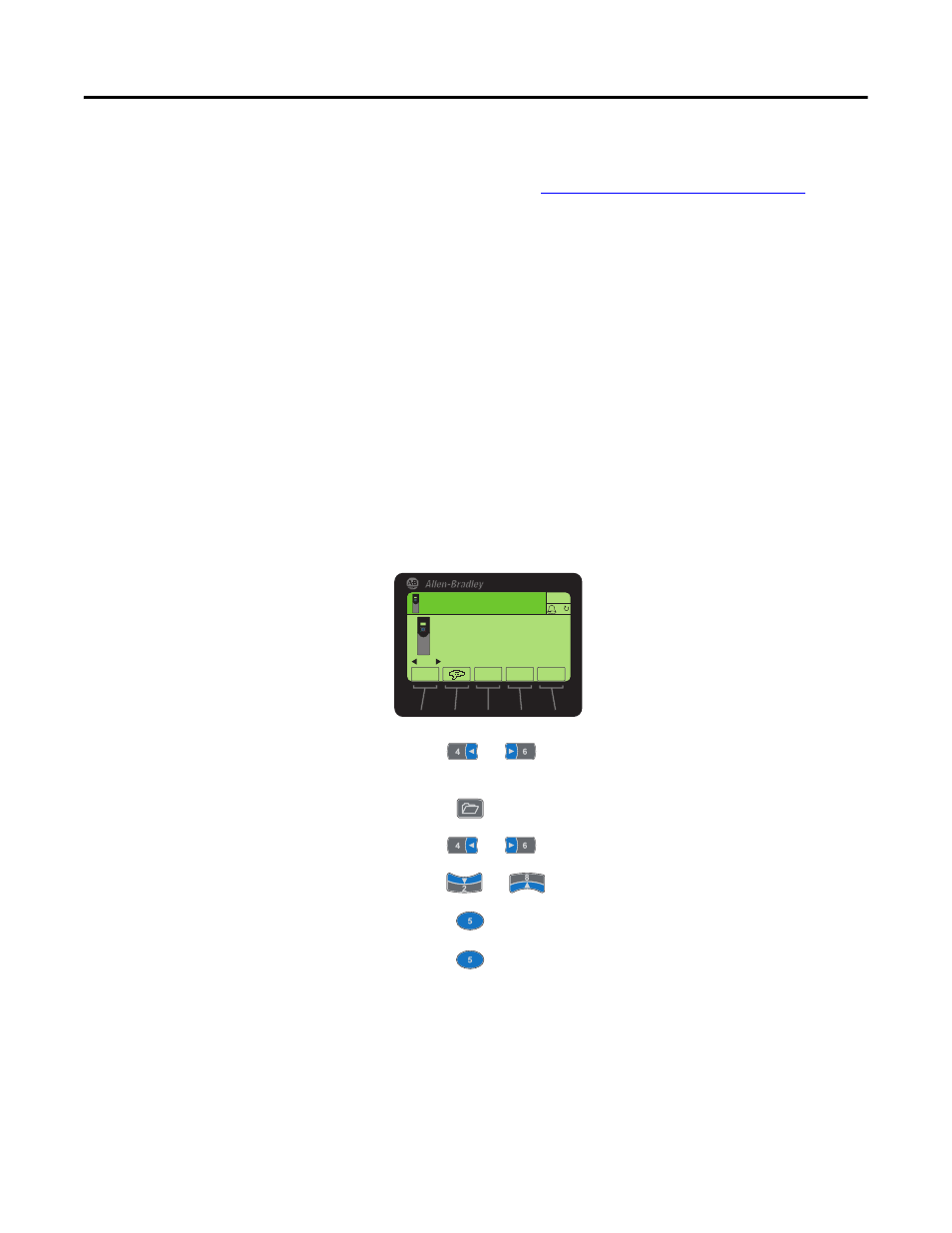

1. Access the Status screen, which is displayed on HIM powerup.
2. Use the or key to scroll to the Port in which the option
module is installed.
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the MEMORY folder.
5. Use the or key to select Set Defaults.
6. Press the (Enter) key to display the Set Defaults pop-up box.
7. Press the (Enter) key again to display the warning pop-up box to
reset
Device and Host parameters to their factory default values.
8. Press the MOST
soft key to restore MOST Device and Host parameters to
factory defaults, or press the ALL
soft key to restore ALL parameters. Or
press the ESC
soft key to cancel.
00
ESC TEXT
Stopped
0.00 Hz
AUTO
Host Drive
240V 4.2A
Rev 3.002 Ser. A
F
REF PAR#
