Multiple VLANs with Tagging Adapters
Figure 6 illustrates a network topology described in Note – and the configuration example on page
page 97 .

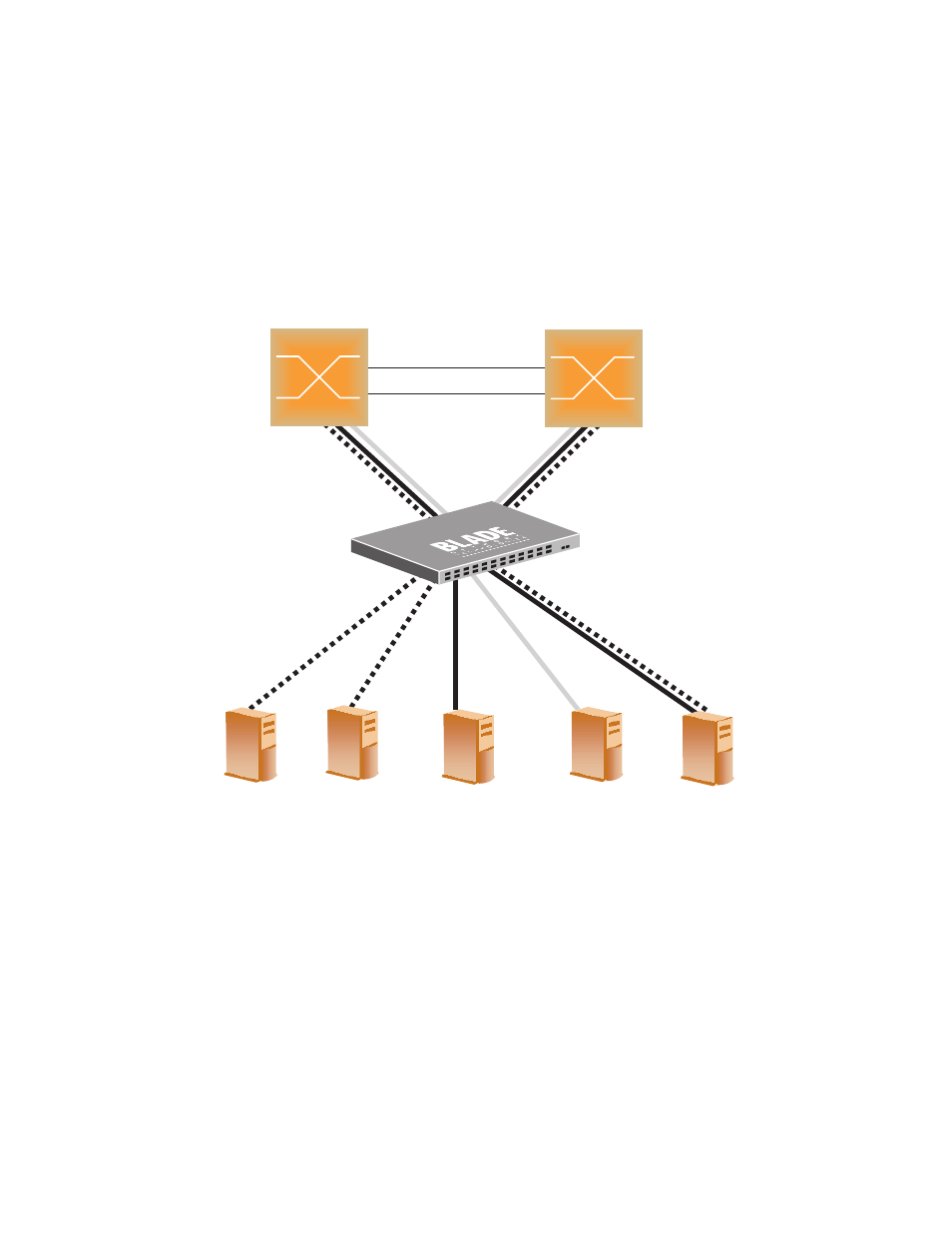

Figure 6 Multiple VLANs with VLAN-Tagged Gigabit Adapters
Server 1
VLAN 1 Server 2
VLAN 1
Server 3
VLAN 2 Server 4
VLAN 3 Server 5
VLAN 1, 2
Enterprise
Routing Switch Enterprise
Routing Switch
