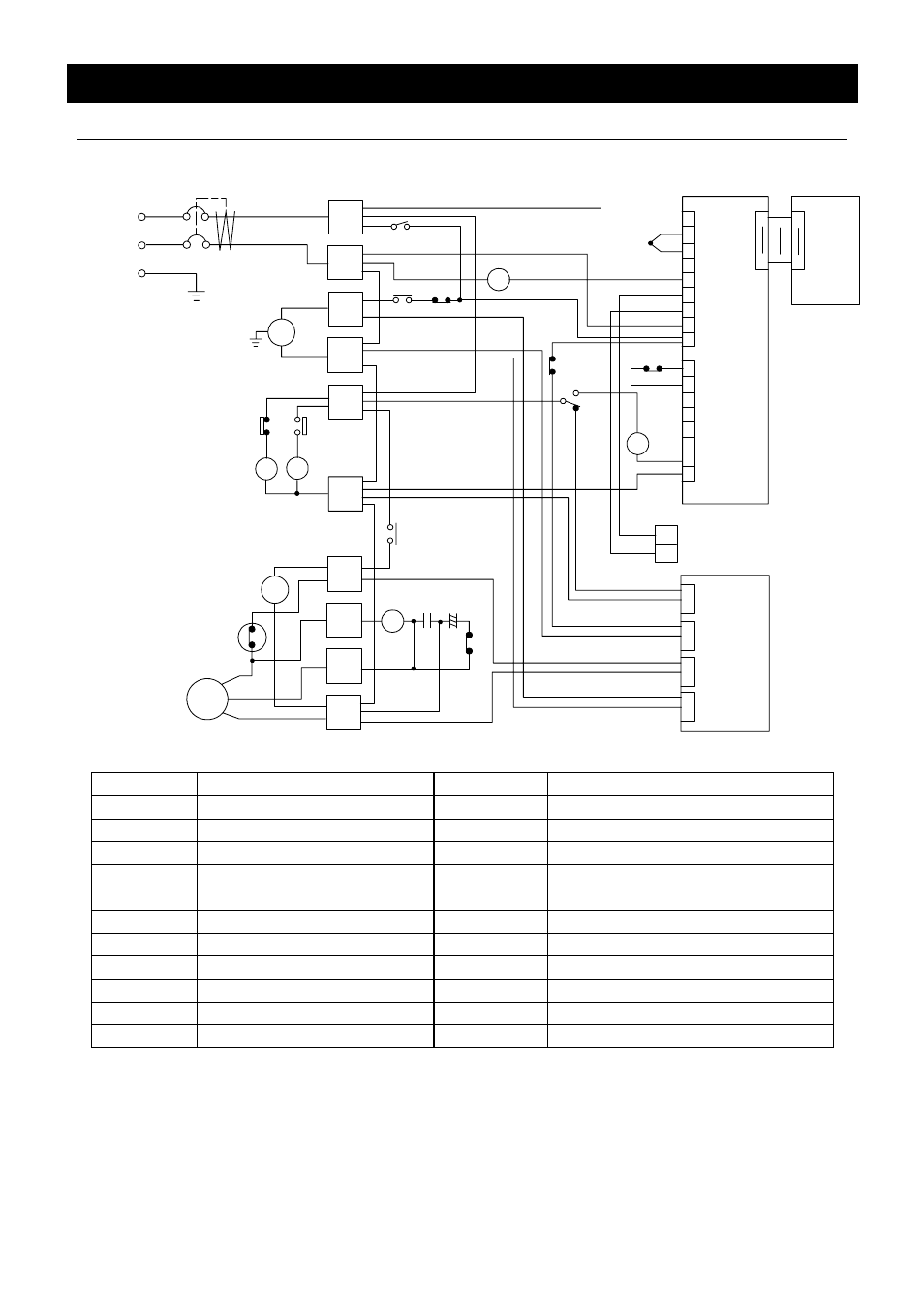

Wiring Diagram
CLS600
FM
R
S
C
OVR
RF
1
T1 ELB
2
3
5
4
AC100V
6
X1
X2
PLB
1
2
TB1
PIO
1
20
CN1 CN1
20
1
3
4
5
6
7
8
9
10
11
TB2
12
13
14
15
16
17
X3-2
X2
PSW
X3-1
PS
X3
X4-1
FS
X4
X4-2
+
-
2
1
4
3
X5
C1 C2
X1
X5
T2
P
T3
1
2 +
-
PV伝送出力(4-20mA)
TH
WIB
2
3
1
2
3
1
2
3
1
2
3
1
CN1
CN2
CN4
CN6
Symbol Part name Symbol Part name
ELB Earth leakage breaker C2 Start condenser
T1 Terminal block X5 Start relay
T2 Terminal block WIB Operation display board
T3 Terminal block PSW Power switch
PLB PLANAR board P Magnet pump
PIO Display board X1 Electromagnetic Contact(refrigerator)
TH Temperature sensor (T) X2 Relay (error)
FM Fan motor X3 Relay (pressure)
RF Compressor X4 Relay (flow)
OVR Overload relay PS Pressure switch
C1 Operation condenser FS Flow sensor
PV transmission output
