Description and Function of Each Part

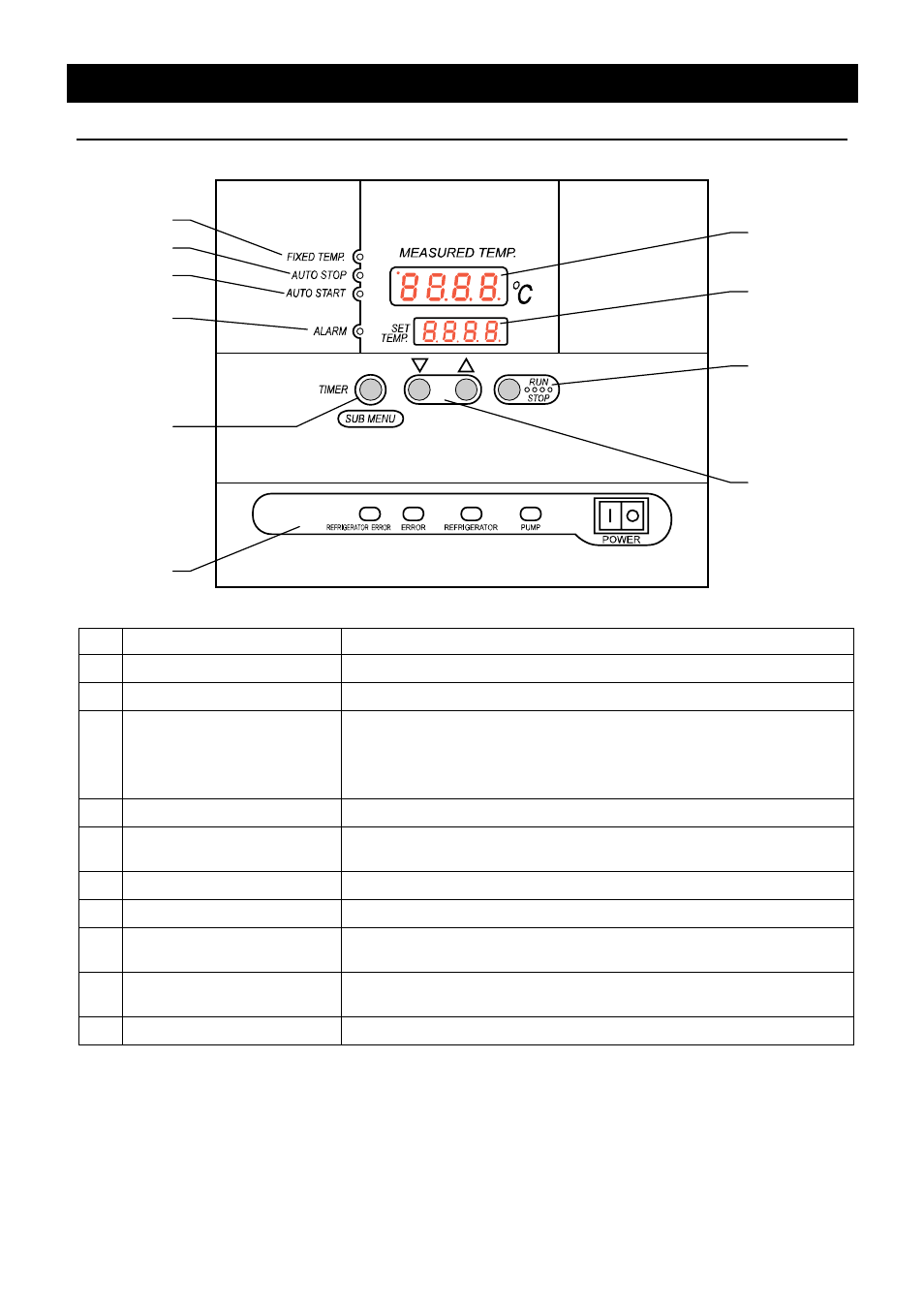

Control Panel
No. Name Function
① RUN/STOP Key Used for operation Start/Stop.
② ▲▼ Key Selects setting value.
③ TIMER Key
(SUB MENU Key)
Selection key for timer operation. Selects Quick Auto Stop operation,
Auto Stop operation, and Auto Start operation.
Carries out the settings for Calibration Offset Temperature, Key rock
function, and power failure compensation function.
④ FIXED TEMP Lamp Lights during Fixed Temp. operation.
⑤ AUTO STOP Lamp Lights during Quick Auto Stop timer operation and Auto Stop timer
operation.
⑥ AUTO START Lamp Lights during Auto Start timer operation.
⑦ ALARM Lamp Lights when an error occurs.
⑧ Measurement Temperature
Screen
Displays Inner bath measurement temperature, Setting character,
and Alarm information.
⑨ Setting Temperature
Screen
Displays Setting temperature, Timer setting value, and Remaining
time. (Temperature can be set up to the 1st decimal place.)
⑩ Operation Monitor Refer to page 11.
