Operation Method

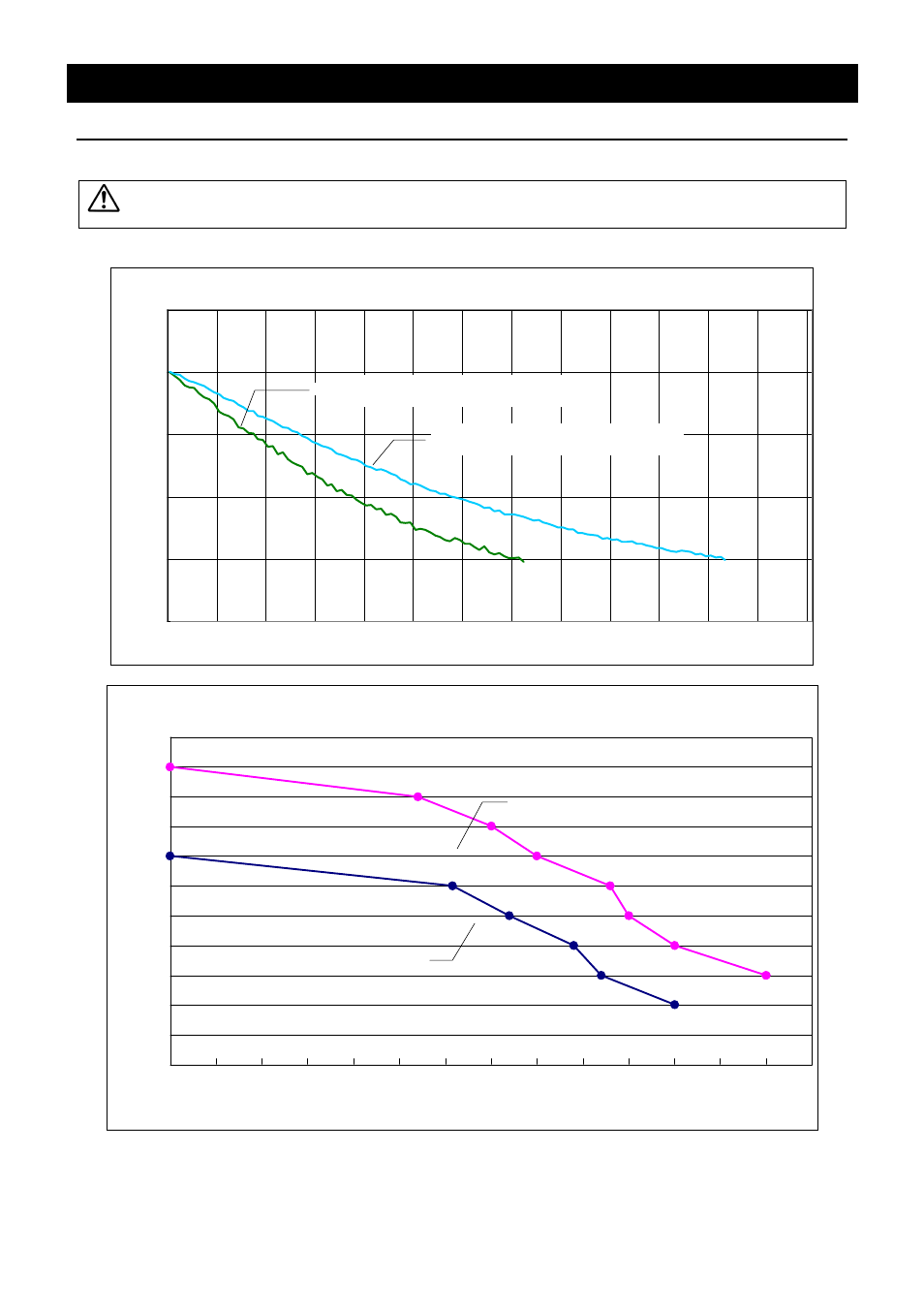

Cooling curve, cooling capacity curve (reference data)
The graphs show the cooling and cooling capacity curves of each model below. Use the values
just for reference because they depend on the sample volume, the ambient temperature, etc.
CLS300冷却曲線 室温20℃
-20.0
-10.0
0.0
10.0
20.0
30.0
0
30
60
90
120
経過時間（分）
温度
（
℃
）
外部槽液量 エチレングリコール50％5L
外部槽液量 エチレングリコール50％10L
CLS300/CLH300流量楊程
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
6.5
7
流量（L/min）
楊程（ｍ）
60Hz
50Hz
CLS301 heating and cooling curves at a room temperature of 20°C
Te
mperat
ure (
°C)
Elapsed time (minutes)
Fluid quantity in external water tank:
10 litters of ethylene glycol 50%
Fluid quantity in external water tank:
5 litters of ethylene glycol 50%
CLS301/CLH301 Flow rate and head
Head (m)
Flow rate (L/min)
