SDC Z7800 SERIES MORTISE LOCK User Manual
Page 4
P:\INSTALLATION INST\Electrified Lockset\INST-Z7800 03/05 Page 4

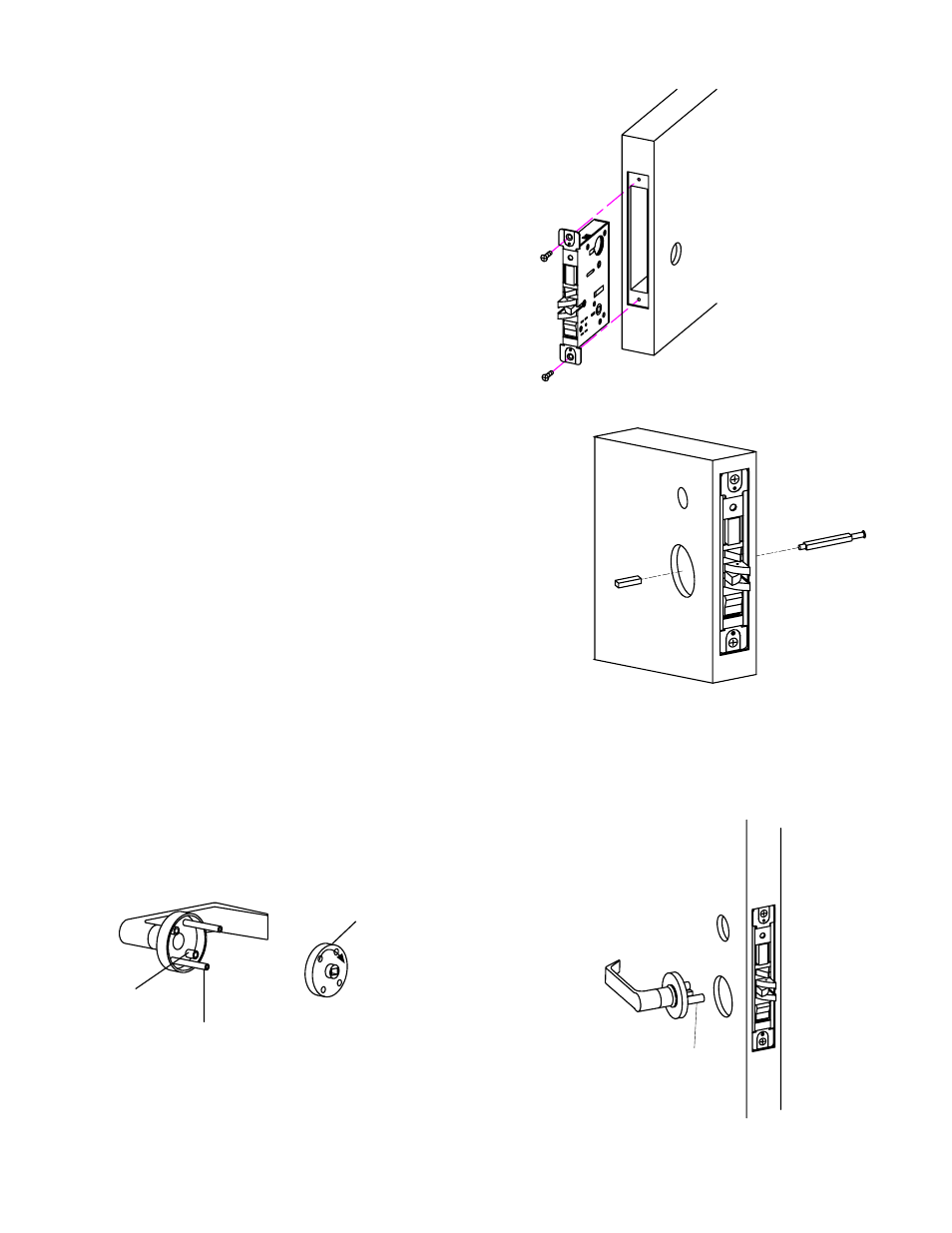

4. Connect wires as shown on the lock cover diagram.
5. Insert lockcase into mortise cut-out and fasten screws to door.
1. Insert spindle into outside hub of lock.
2. Insert inside spindle and tighten screw into outside spindle.
E. Install Lever trim
1. Place the reversible spring cage onto the ferrules with arrow pointing in direction of lever rotation.
2. Install outside trim with mounting posts through door and position lever onto the spindle.
D. Install Spindles
C. Install Lockcase (Continued)
Screw post
Reversible spring cage
Ferrule
Mounting post
