SDC Z7800 SERIES MORTISE LOCK User Manual
Page 2
P:\INSTALLATION INST\Electrified Lockset\INST-Z7800 03/05 Page 2
B. Strike Installation:

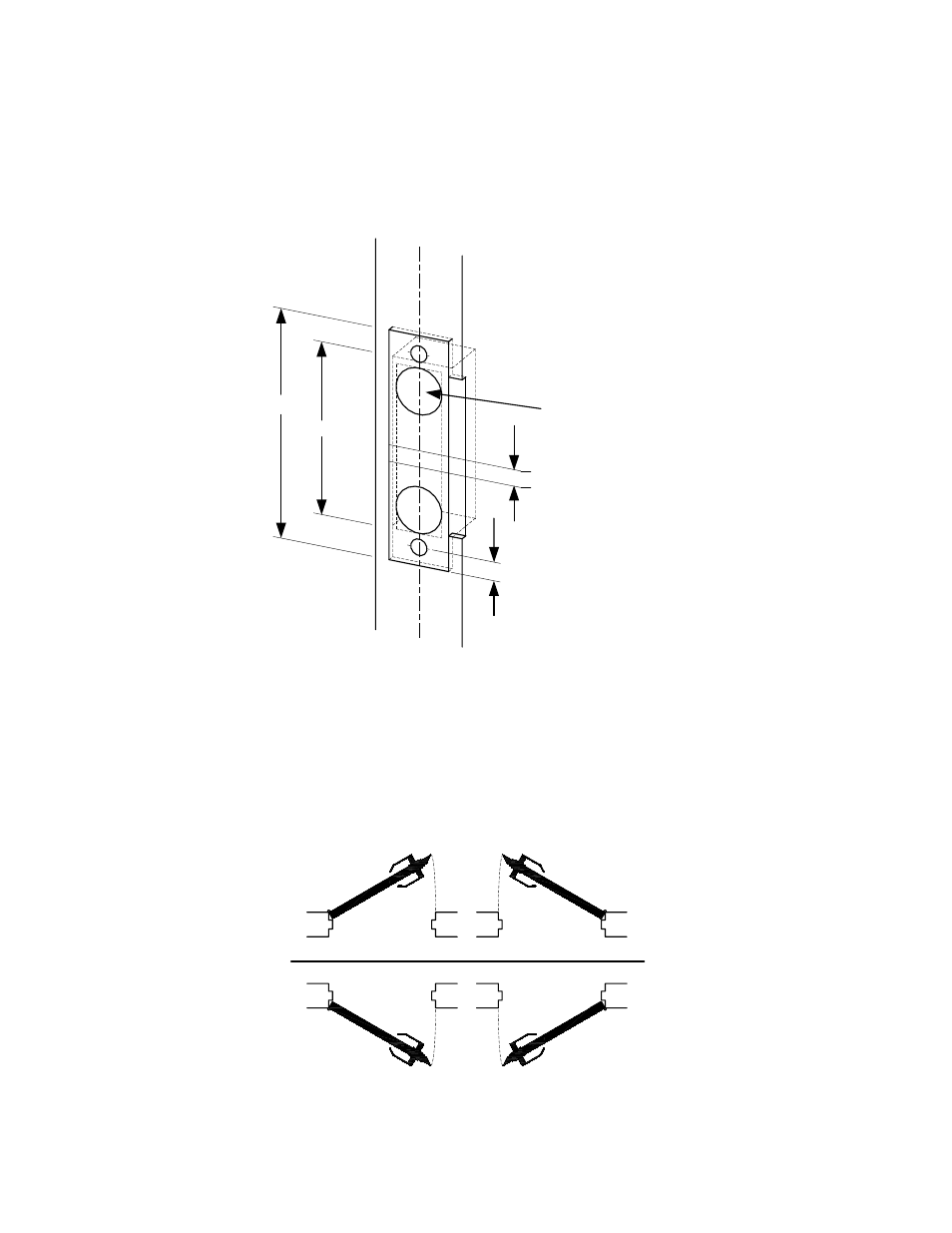

1. Align strike template on jamb. Be sure to keep 3/8" distance between lock centerline and strike
centerline. Recess 5/32" for flush fit of strike and dust box.
2. Mortise jamb according to measurement of strike template. Then fit strike and dust box into frame
and secure into place with supplied screws.
C. Install Lockcase
Make sure the lock hand matches the door hand, use the following diagram to determine the hand of door.
4-7/8"
3-17/32"
CL
Strike
Lock CL
3/8"
3/8"
1" Holes
1-1/8" Deep
CL
Jamb
LH
Left Hand
LHRB
Left Hand
Reverse Bevel
INSIDE OF DOOR
OUTSIDE OF DOOR
RH
Right Hand
RHRB
Right Hand
Reverse Bevel
INSIDE OF DOOR
OUTSIDE OF DOOR
