SDC Z7800 SERIES MORTISE LOCK User Manual
Page 3
2. Change hand of lock
For RH and RHRB, the catch screw will be on the lock case side. For LH and LHRB, the catch screw will be on the
lock cover side.
P:\INSTALLATION INST\Electrified Lockset\INST-Z7800 03/05 Page 3
3. Check for proper hub position. Locate the hub with the reference mark in the downward position as shown.
Pull out and turn

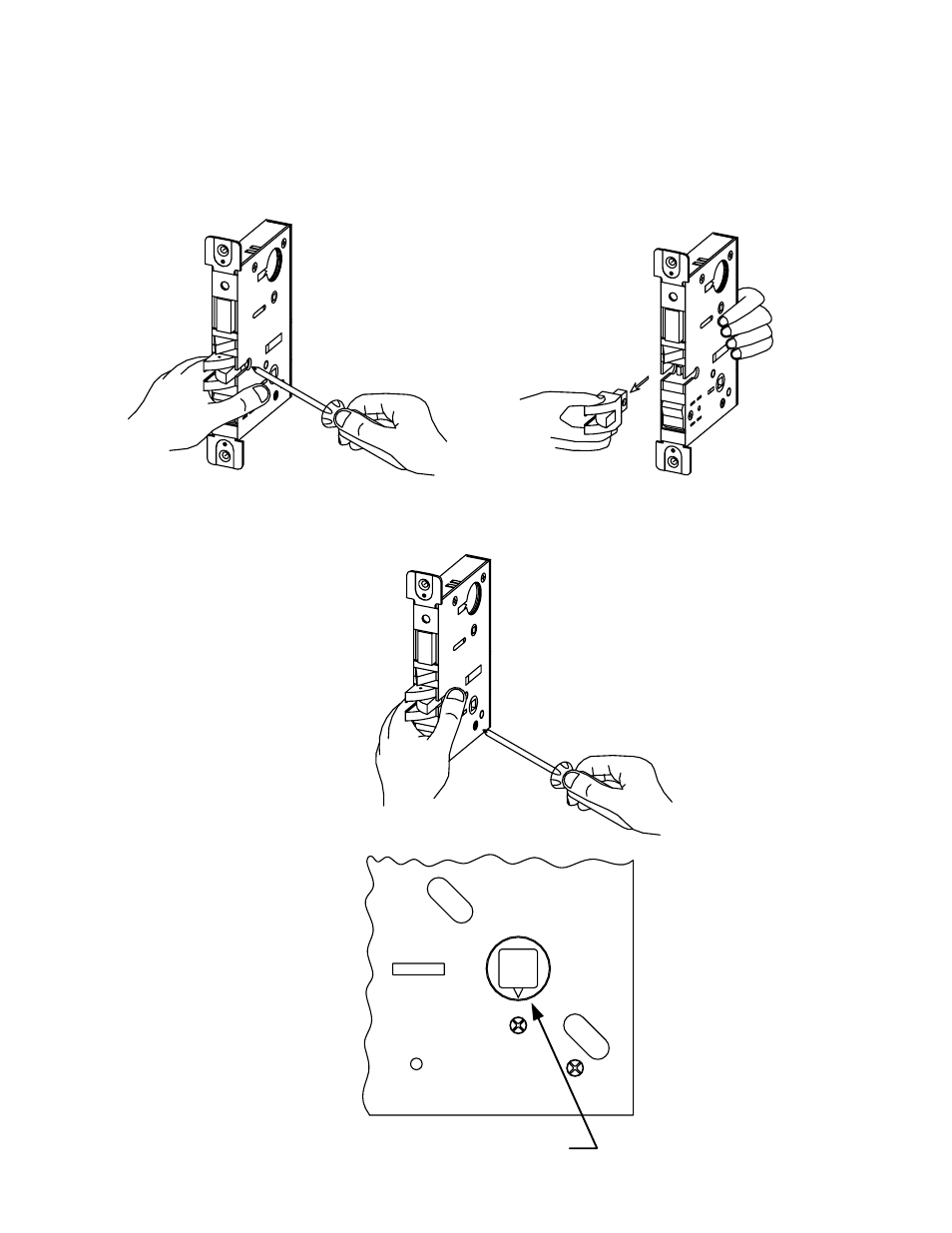

1. Change latchbolt handing
If the hand of the latchbolt doesn’t match the door hand, remove the fixing screw and pull the latchbolt out from
lock case. Turn the latchbolt 180 ° to change the handling. Position latchbolt back, into case and fasten it.
Instructions for changing lock hand:
C. Install Lockcase (Continued)
REFERENCE MARK
Remove screw
