‎Chapter 4 PAS Application Software Configuring Billing Energy and TOU Registers
BFM136 Branch Feeder Monitor 49
The meter tariff structure supports six different tariffs using an arbitrary tariff
schedule. A total of four types of days and four seasons are supported with
up to eight tariff changes per day.
The meter can provide automatic daily profile recording for total and tariff
energy and maximum demand registers. The device memory is sufficient to
store daily profile data for 120 days.
By default, the first billing register in your meter is linked to the kWh IMPORT
accumulator, and the daily profile recording is enabled for the kWh register.
Other billing registers are not operational. To activate the remaining registers
or to change the profile for the first billing register:
1. Link the Summary/TOU registers to the respective energy sources, and
then configure the options for these registers like whether the only
totalization or both total and tariff registers would be used, and whether
daily profiling should be enabled for the energy usage and maximum
demand registers.
2. Configure the daily tariff schedule for all types of days and seasons
using the TOU daily profiles.
3. Configure the season tariff schedule using the TOU calendar.
Setting up Total and Tariff Registers

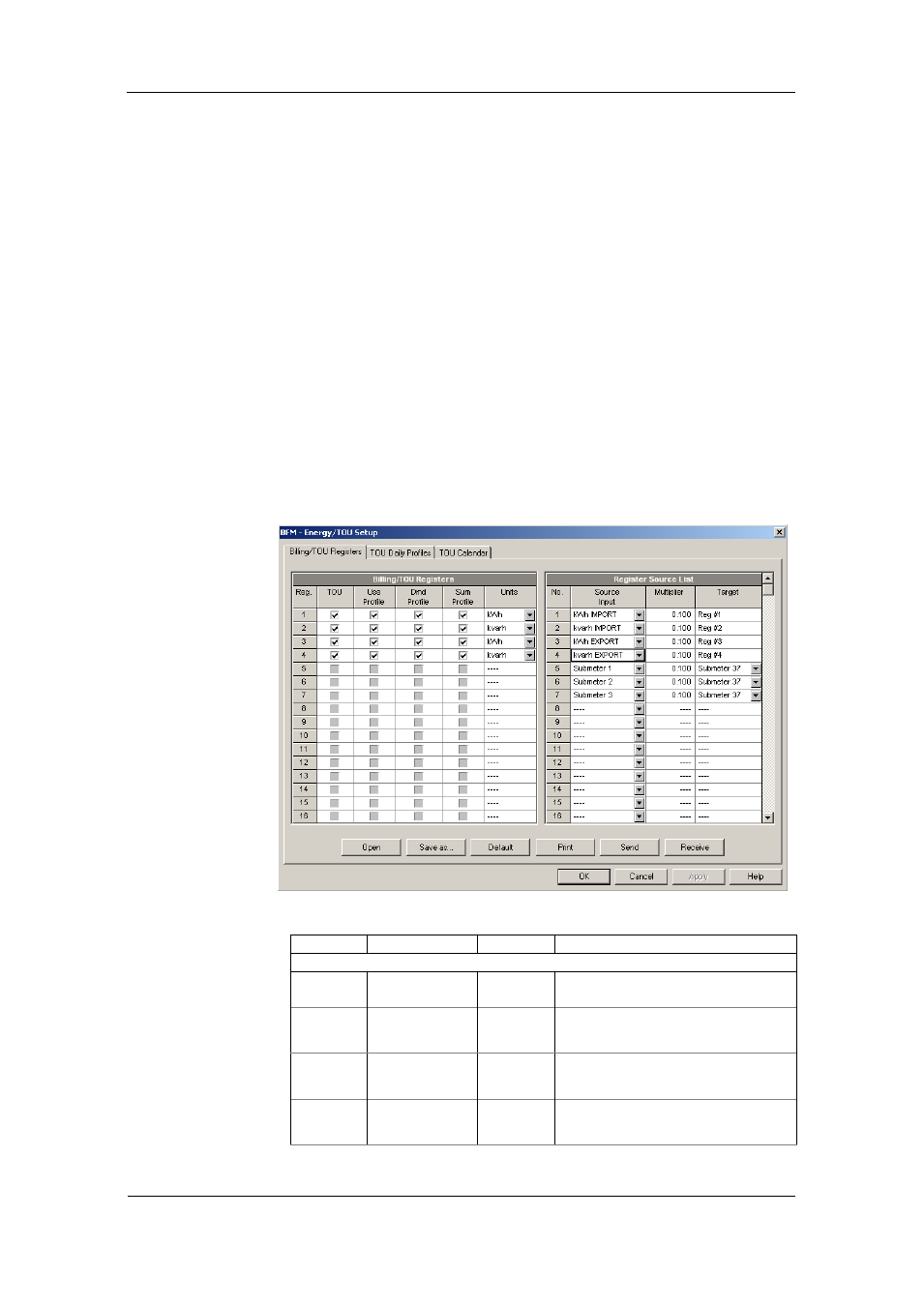

To configure the device total (summary) and TOU registers, select
Energy/TOU from the Meter Setup menu.
The available options are shown in the following table:
Parameter Options Default Description
Billing/TOU Registers
TOU Unchecked
Checked Unchecked Links tariff registers to the selected energy
source
Use Profl Unchecked
Checked Unchecked Enables automatic daily profiling for
energy usage registers (both total and
tariff registers if TOU is enabled)
Dmd Profl Unchecked
Checked Unchecked Enables automatic daily profiling for
maximum demand registers (both total
and tariff registers if TOU is enabled)
Sum Profl Unchecked
Checked Unchecked Enables daily profiling for summary
registers (total of all tariffs). Automatically
set when profiling is enabled.
