MAINTENANCE/SERVICE

Form # 169053

84

Model Year - 2009

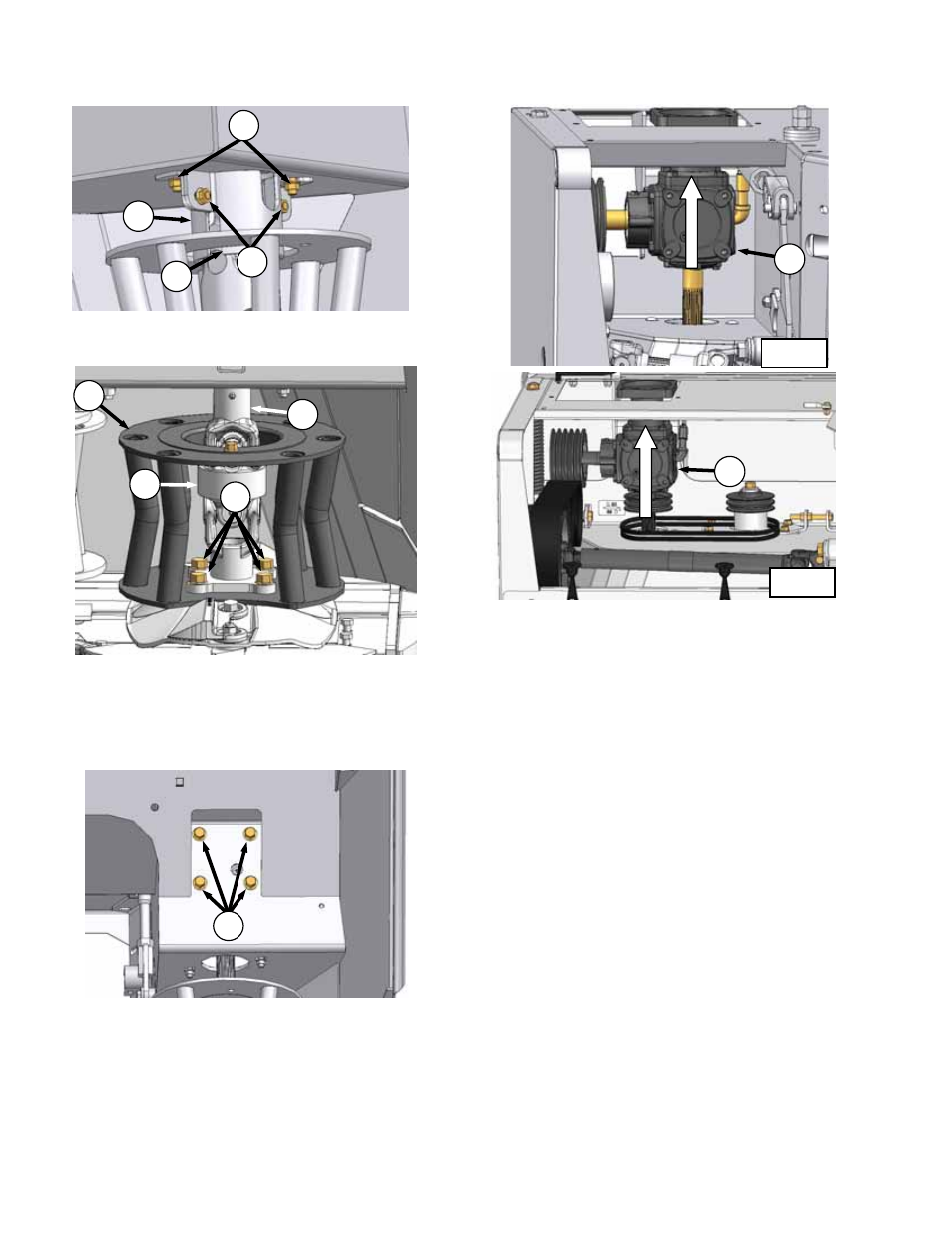

g. Remove two bolts (P) and remove guard (Q).
h. Loosen two bolts (R) and remove guard (S).

i. Rotate deflector (T) so that wider space between

bars face forward.

j. Remove four bolts (U).
k. Pull driveline (V) through deflector and slide U-

joint (W) off drive shaft.

l. Remove four bolts (X). Support gearbox (Y)

when removing last bolt.

m. Lift gearbox (Y) and manoeuvre from drive area,

top end first.

X

P

Q

R

S

Y

13 FT

Y

16 FT

U

V

W

T
