MAINTENANCE/SERVICE

Form # 169053

57

Model Year - 2009

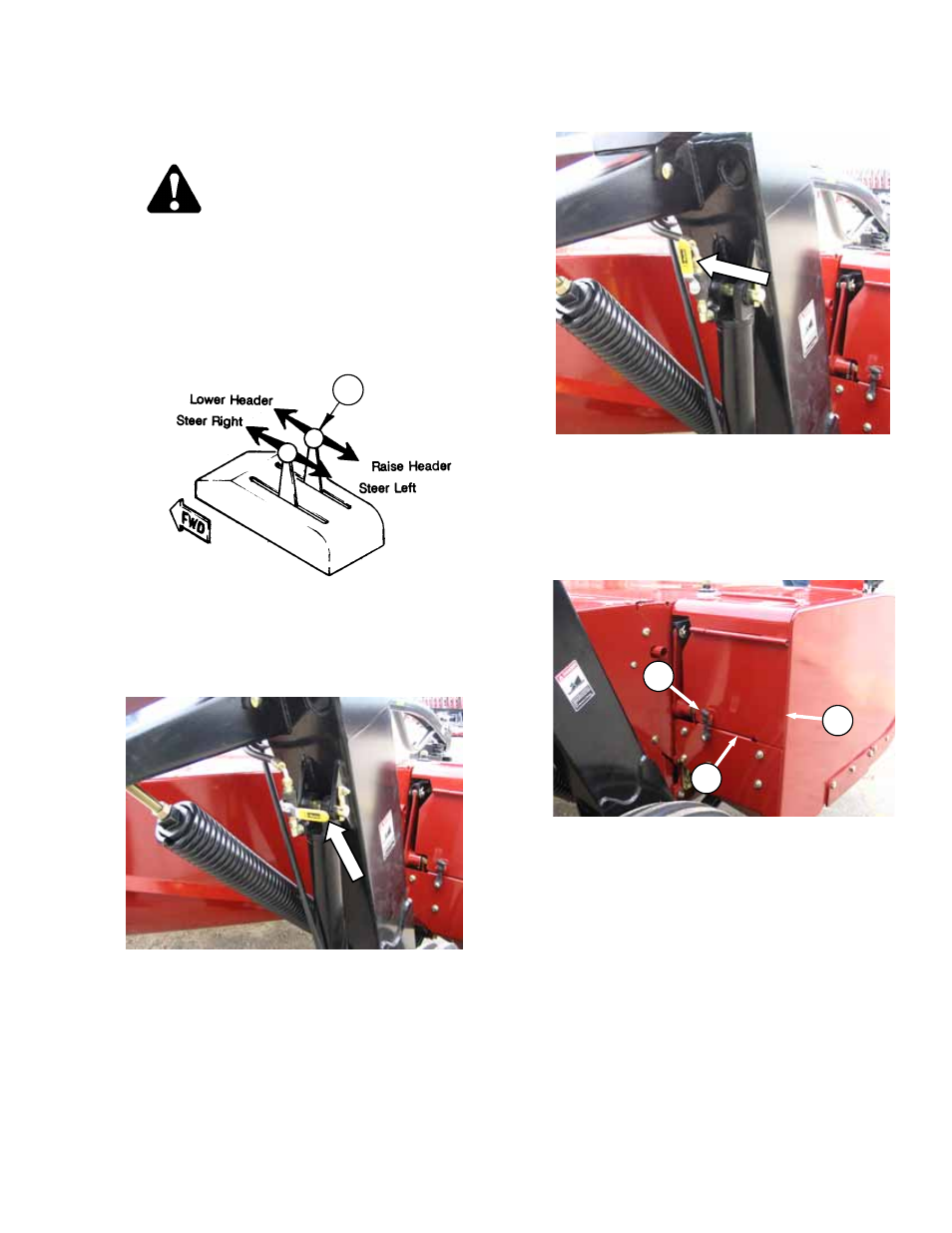

7.4 LIFT CYLINDER LOCK-0UT

VALVES

WARNING

To avoid bodily injury or death from fall of
raised machine, always lock-out lift cylinders
before going under mower conditioner for
any reason.

Lockout the lift cylinders as follows:

a. Raise machine to maximum height by activating

remote cylinder control valve in tractor.

IMPORTANT

Hoses should be connected so that
moving control lever (A) backward raises
the header. See Section 6.4.3 Hydraulic
Connections for more information.

b. Close the lock-out valve on each lift cylinder by

turning the handle to the horizontal position.

Return to normal operation as follows:

a. Turn the handle on the lock-out valves to the

vertical position.

b. Lower machine by activating the remote cylinder

control in tractor.

7.5 DRIVE

SHIELDS

a. To open the left and right drive shields on the

header, pull rubber latch (B) off hook and lift
cover (C) to open position.

b. To close, lower shield and engage bolt (D) in

frame.

c. Place rubber latch (B) in hook.

B

C

D
