MacDon R80 Rotary Disc Pull-Type Windrower User Manual
Page 82
MAINTENANCE/SERVICE
Form # 169053
80
Model Year - 2009

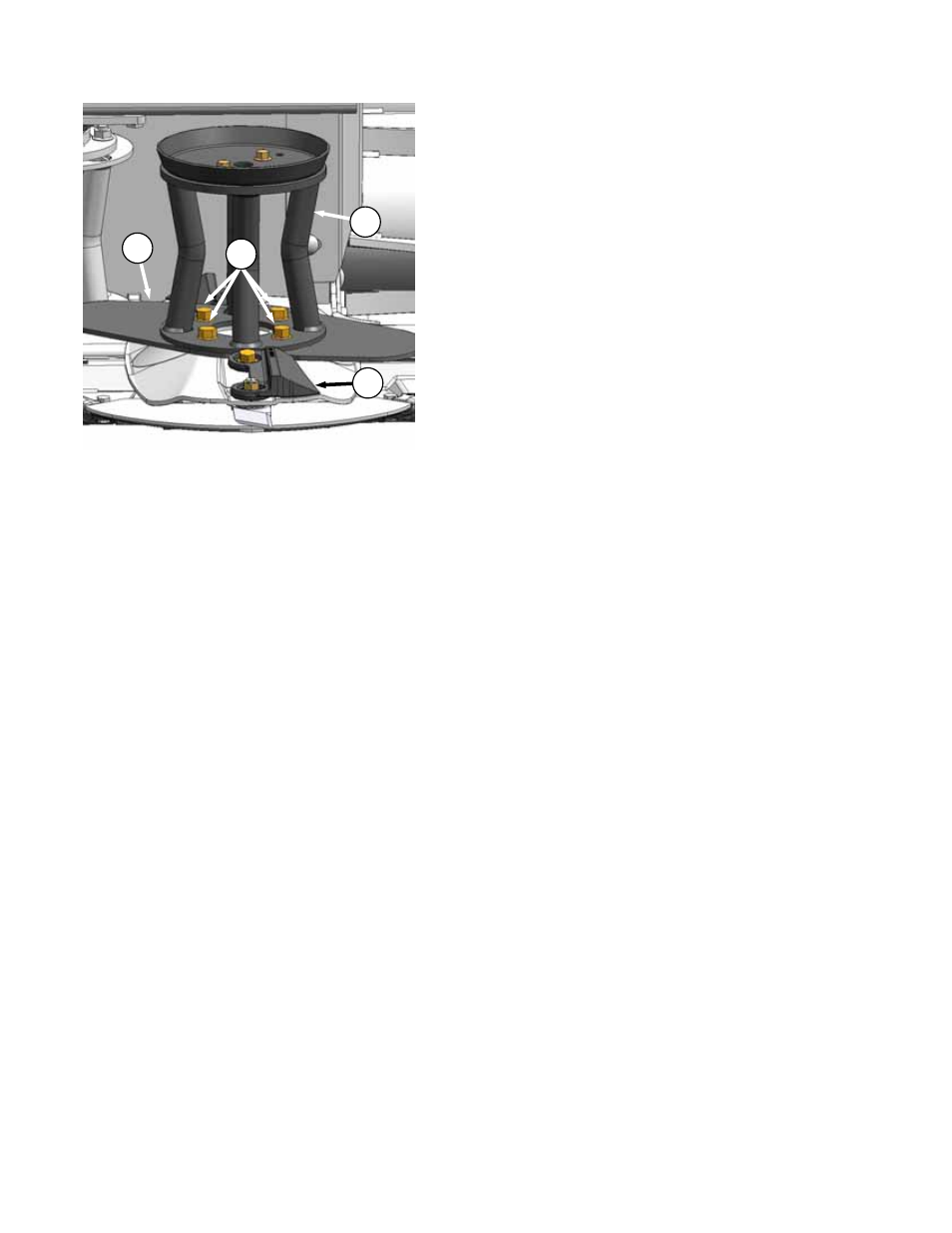

g. Locate feed pate (D) on the disc ensuring that
hole in feed plate registers on disc. Position
plate as shown and align holes.
IMPORTANT
Feed plate should be located so that when
holes are aligned, it is closer to the
accelerator leading edge (E) than the
trailing edge.
h. Re-position deflector (C) and align holes.
i. Re-install bolts (B) and tighten to 92 ft·lbf (125
N·m).
j. Repeat above steps for opposite side.
k. Manually rotate discs to check for interference of
feed plate and adjacent parts.
B
C
D
E
