MAINTENANCE/SERVICE
Form # 169053
76
Model Year - 2009
7.8.6 Hourglass Deflectors
Check daily that hourglass deflectors are not
damaged or bent by rocks. The deflectors are
not repairable and must be replaced if severely
damaged or worn.
DANGER
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.
a. Raise header fully, shut off engine and remove
key.
b. Engage lift cylinder lock-out valves.
c. Open cutterbar door(s) and inspect deflectors.
CAUTION
Cutter blades have two cutting edges.
Exercise caution when working around the
blades. Blades are sharp and can cause
serious injury. Wear gloves when handling
blades.

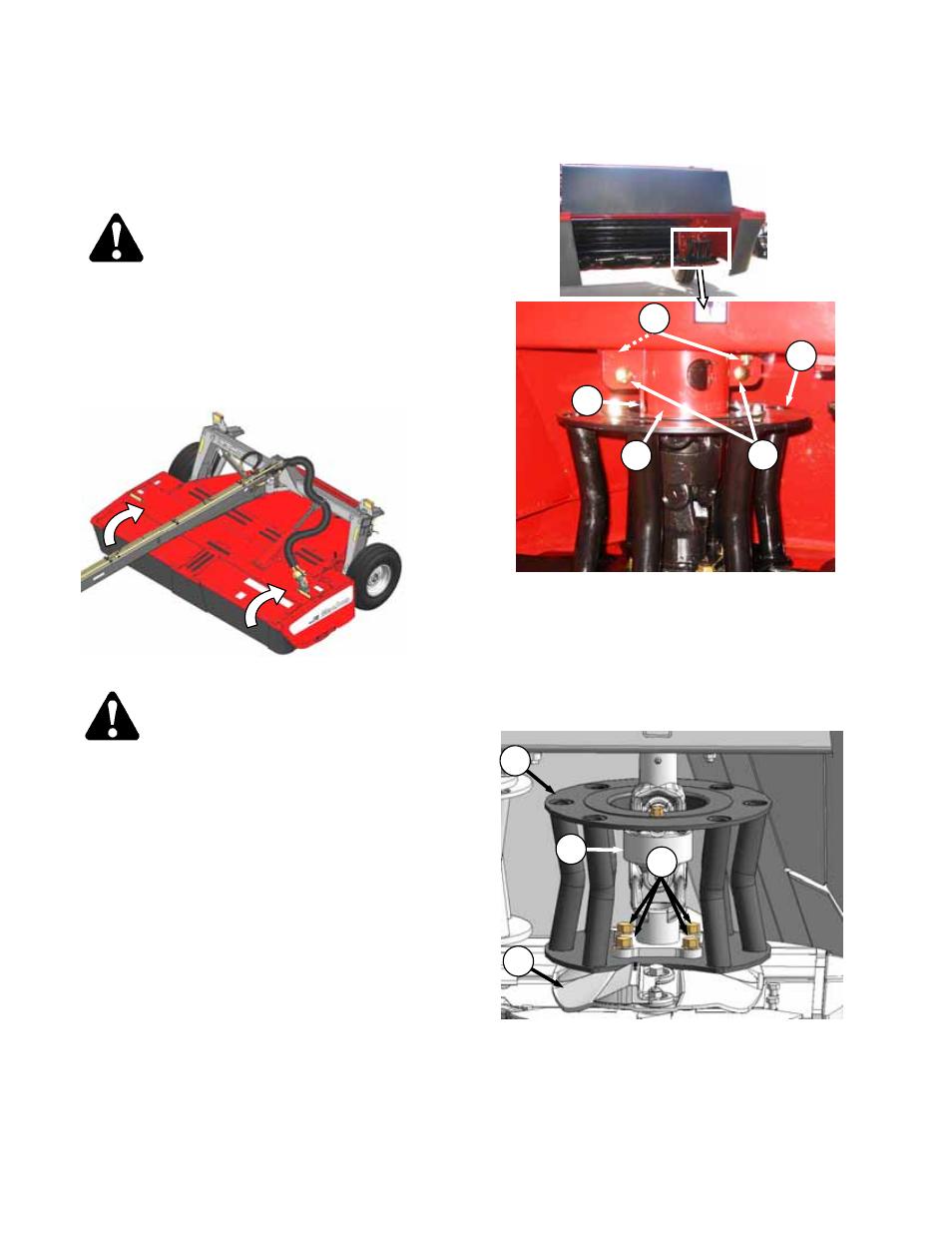

7.8.6.1 Driveline Deflector – 13 & 16 Ft
a. Remove driveline deflector (A) as follows:
1. Remove two bolts (B) and remove guard
(C).
2. Loosen two bolts (D) and remove guard (E).
3. Rotate deflector (A) so that wider space
between bars faces forward.
4. Place a block of wood between two discs to
prevent deflector from turning.
5. Remove four bolts (F).
6. Lift driveline (G) off deflector (A) base and
slide lower end of deflector off disc (H).
(continued next page)
F
G
H
A
B C
D
E
A
