MAINTENANCE/SERVICE

Form # 169053

78

Model Year - 2009

7.8.6.3 Driven and Suspended Deflectors - 16

Ft

DANGER

Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

CAUTION

Exercise caution when working around the
blades. Blades are sharp and can cause
serious injury. Wear gloves when handling
blades.

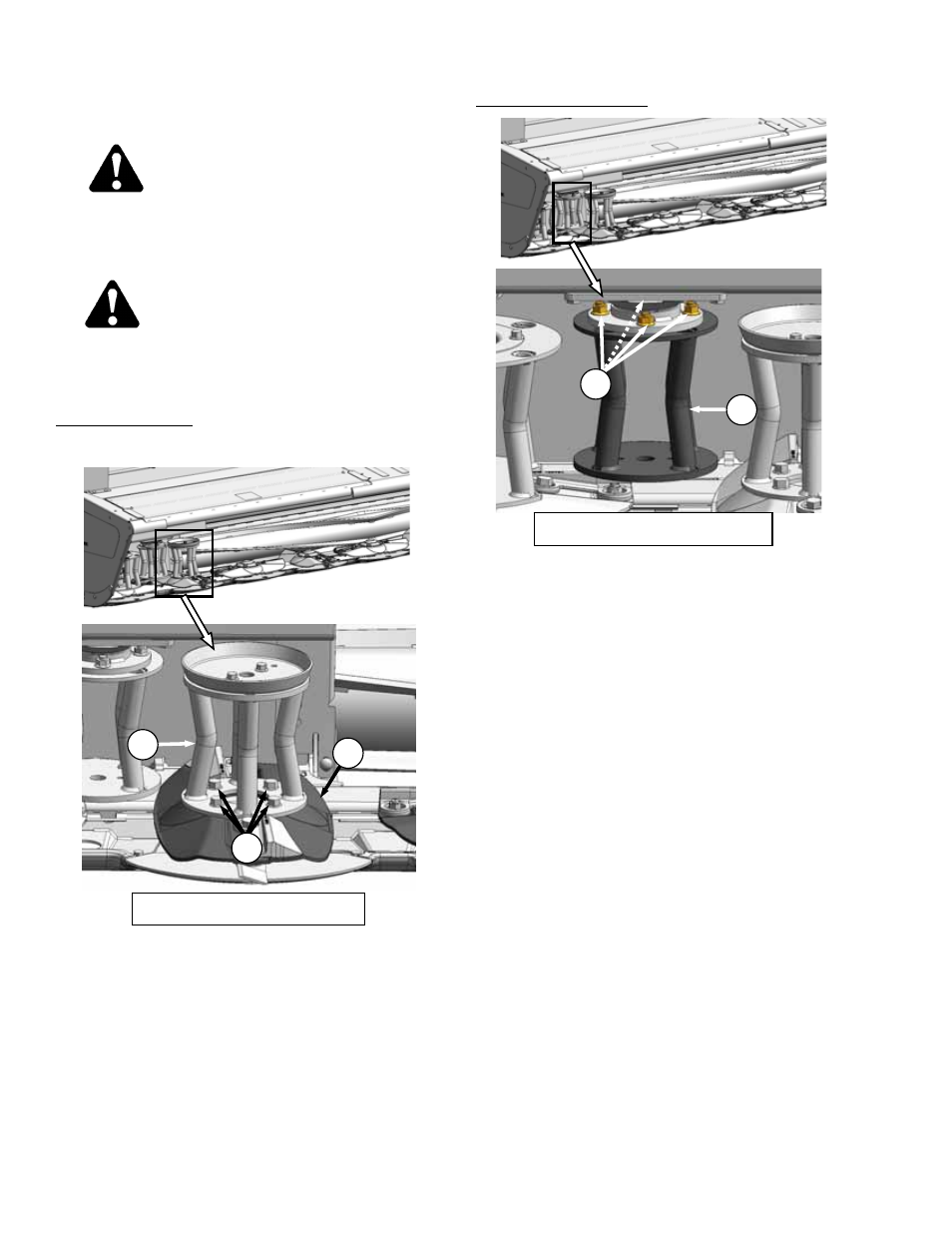

Driven Deflector (A)
a. Place a block of wood between two discs to

prevent deflector from turning.

b. To remove driven deflector (A), remove four

bolts (B) and remove deflector.

c. To install deflector (A), position deflector on disc

(C) and install bolts (B) and torque to 92 ft·lbf
(125 N·m).

d. Remove block of wood if used.

Suspended Deflector (D)

a. Place a block of wood between two discs to

prevent deflector from turning.

b. To remove suspended deflector (D), remove

four bolts (E) and nuts, and remove deflector.

c. To install deflector (D), position deflector on

flange (F) and install bolts (E) and nuts. Tighten
to 92 ft·lbf (125 N·m).

d. Remove block of wood if used.
e. Close

doors.

RH SHOWN – LH OPPOSITE

B

A

C

D

E

RH SHOWN – LH OPPOSITE
