MAINTENANCE/SERVICE

Form # 169053

107

Model Year - 2009

7.11 ELECTRICAL

a. Use electrical tape and wire clips as required to

prevent wires from dragging or rubbing.

b. Keep lights clean and replace burnt bulbs.

7.11.1 Light Bulb Replacement

a. Using a phillips screwdriver, remove screws

from fixture and remove plastic lens.

b. Replace bulb and reinstall plastic lens and

screws.

7.11.2 Fixture Replacement

7.11.2.1 Hazard Lights

a. Cut plastic cable ties (A) securing harness

covering to light (B).

b. Retrieve connections (C) from inside harness

covering approximately 6 inches (150 mm) from
light and disconnect wires. Remove tape if
necessary.

c. Remove the two nuts (D) securing light to

bracket and remove light. Pull wires through
hole in bracket.

d. Feed connectors of new light (B) through hole in

bracket and position light onto bracket.

e. Install nuts (D) and tighten.
f. Connect wires to connectors (C) in harness and

re-secure harness covering with tape and plastic
tie (A) as required.

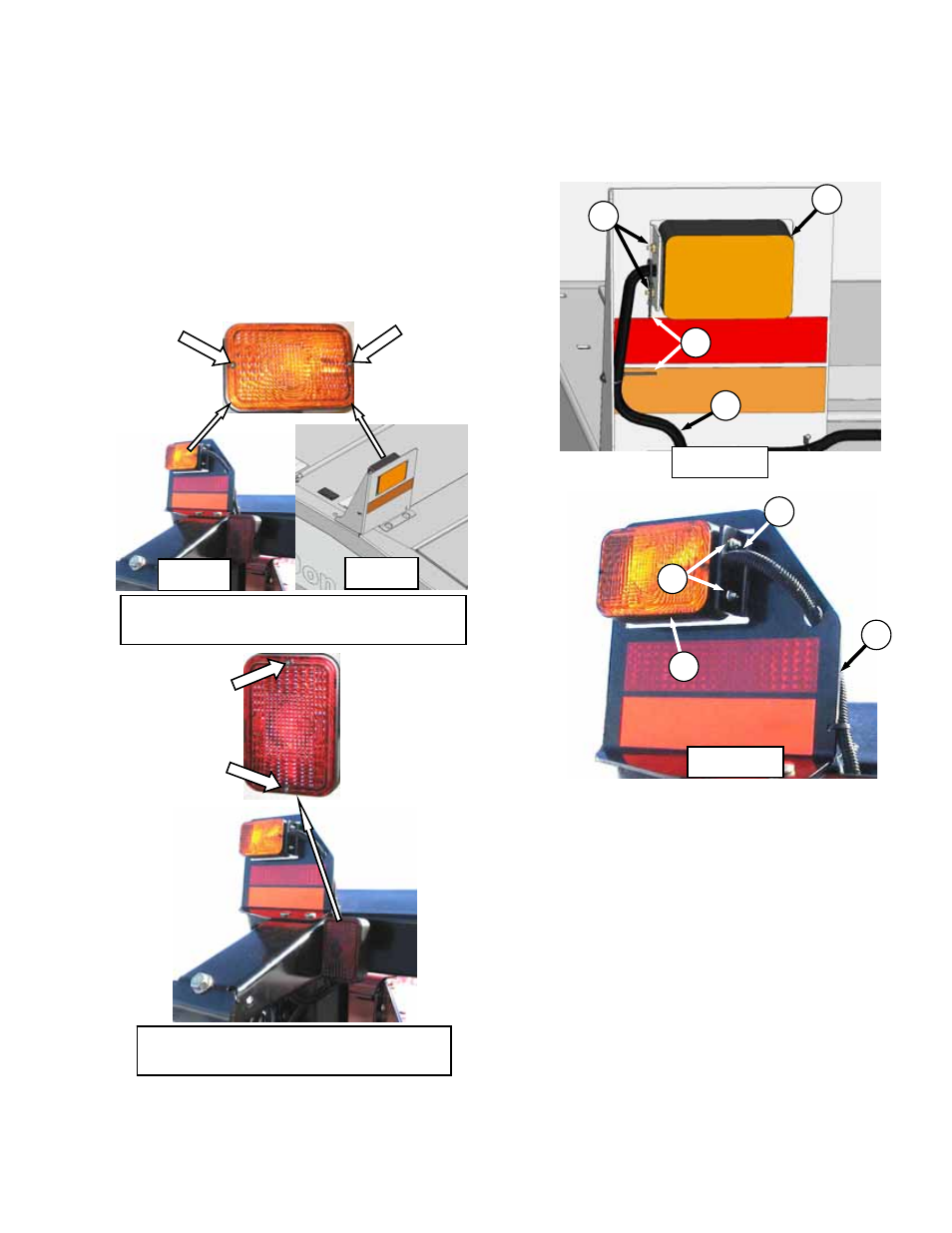

AMBER HAZARD LIGHT – BOTH SIDES

Bulb – Trade #1156

13 FT

16 FT

RED TAIL/BRAKE LIGHT – BOTH SIDES

Bulb – Trade #1157

A

D

B

C

13 FT

B

D

C

A

16 FT
