OPERATION

Form # 169053

20

Model Year - 2009

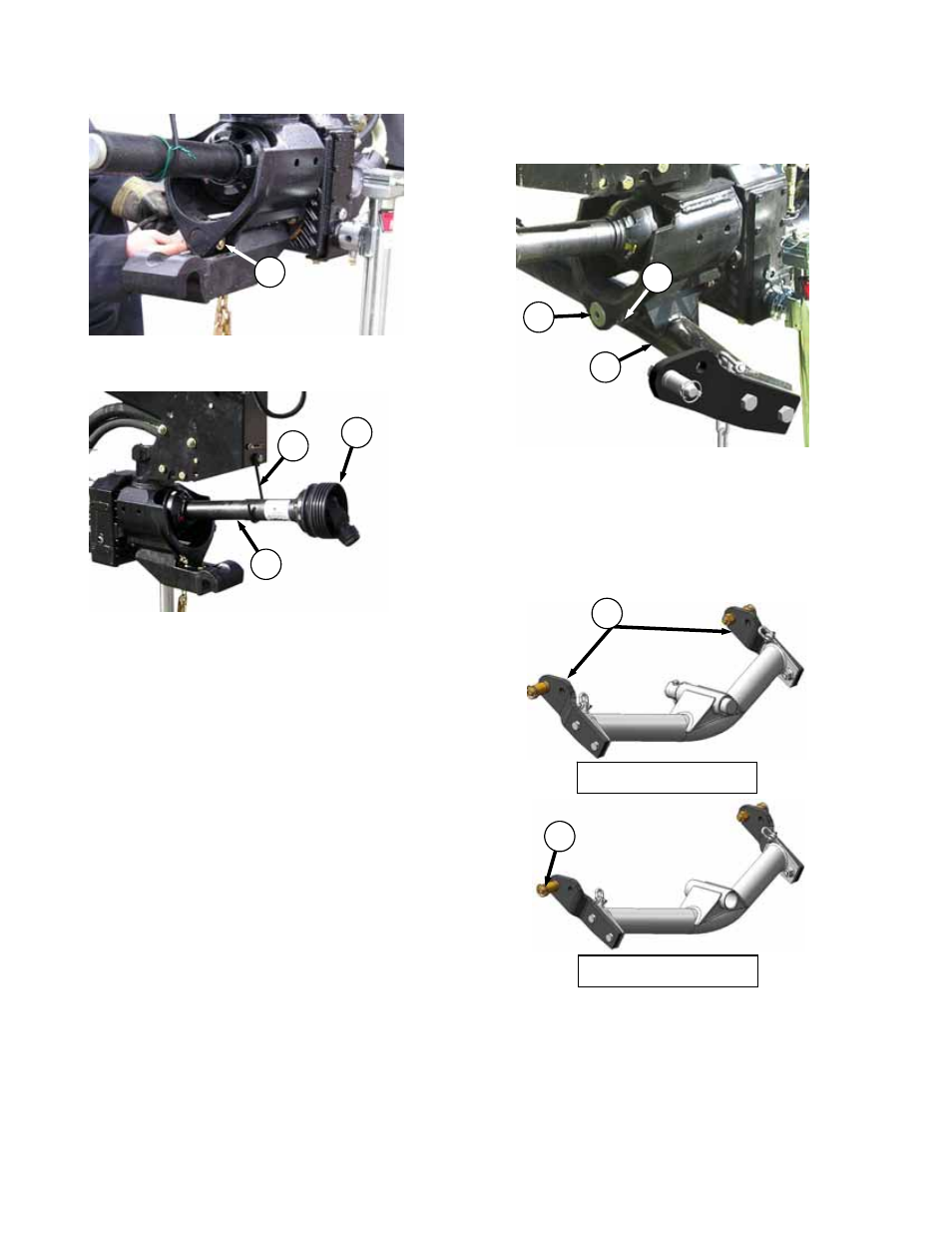

f. Secure pin with clevis pin (F), washers, and

cotter pin.

g. Assemble PTO driveline male half (G) onto PTO

shaft (H) on APT. Push male half so that PTO
shaft is at its fully compressed length.

h. Locate PTO shaft in hook (J).

6.3.4 3 Point Hitch (Cat. II, III, or IIIN) Set-

Up

a. Attach the 3 point hitch yoke (K) to the APT with

pin (L). The installation is similar to that
described in the previous section.

b. Secure pin (L) with clevis pin (M), washers, and

cotter pin.

c. The arms (N) on APT yoke can be set up to suit

the tractor hitch arms:

1. Remove pins (O) from arms.
2. Remove arms (N) from APT yoke.
3. Re-install arms on opposite ends of yoke as

shown.

4. Re-install pins (O) in arms.

(continued next page)

CATEGORY II or IIIN

N

CATEGORY III

O

F

L

M

K

H

G

J
