OPERATION
Form # 169053
19
Model Year - 2009

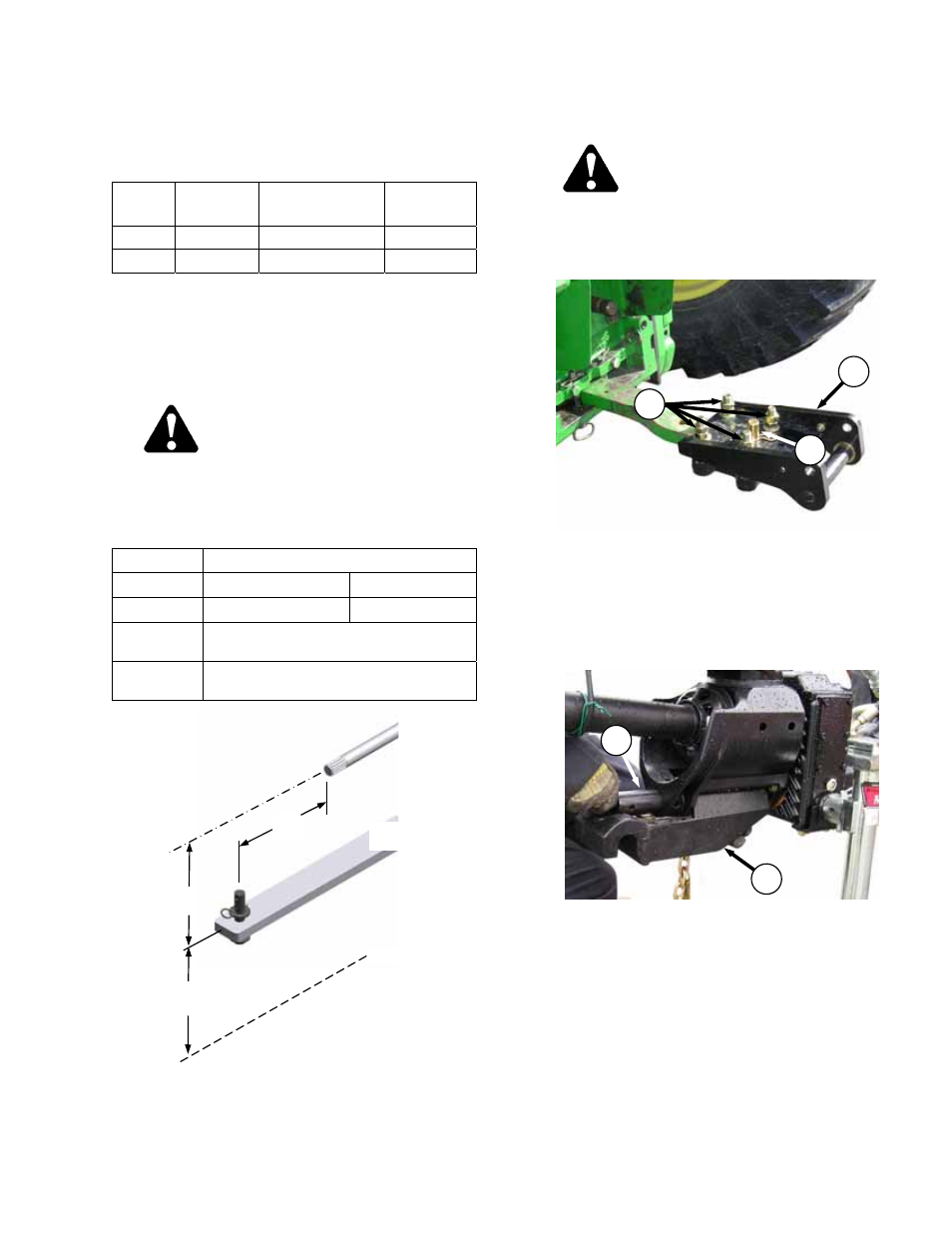

6.3 TRACTOR SETUP
6.3.1 Tractor Requirements
R80
MODEL
MIN POWER
HP (kW)
MINIMUM DRAWBAR
CAPACITY
MINIMUM
HYDRAULICS
psi (MPa)
13 FT 120 (90) As per ASAE 2000 (13.7)
16 FT 150 (112) As per ASAE 2000 (13.7)
NOTE
Tractor must be equipped with a seven
terminal outlet to supply power to the
mower conditioner's hazard lights.
6.3.2 Drawbar Adjustment
CAUTION
Shut off tractor, engage parking brake and
remove key before working around hitch.
Adjust tractor drawbar to meet ASAE Standard
specifications as listed below.
DIMENSION 1000 RPM PTO
1.37 INCH DIA. 1.75 INCH DIA.
X 16 in. (406 mm) 20 in. (508 mm)
Y
6-12 in. (152-305 mm)
8 in. (203 mm) Recommended
Z
13-17 in. (330-432 mm)
16 in. (406 mm) Recommended
6.3.3 Drawbar Hitch Set-Up
CAUTION
Shut off tractor, engage parking brake and
remove key before working around hitch.
a. Secure the tractor drawbar so the hitch-pin hole
is directly below the driveline.
b. Loosen bolts (B) on extension assembly (A) and
slide onto drawbar.
c. Install pin (C) through drawbar and extension
from underside and secure with hairpin.
d. Gradually tighten the four bolts to 265 ft·lbf (359
N·m).
e. Attach the swivel APT member (D) with pin (E)
onto the APT.
(continued next page)
