OPERATION

Form # 169053

39

Model Year - 2009

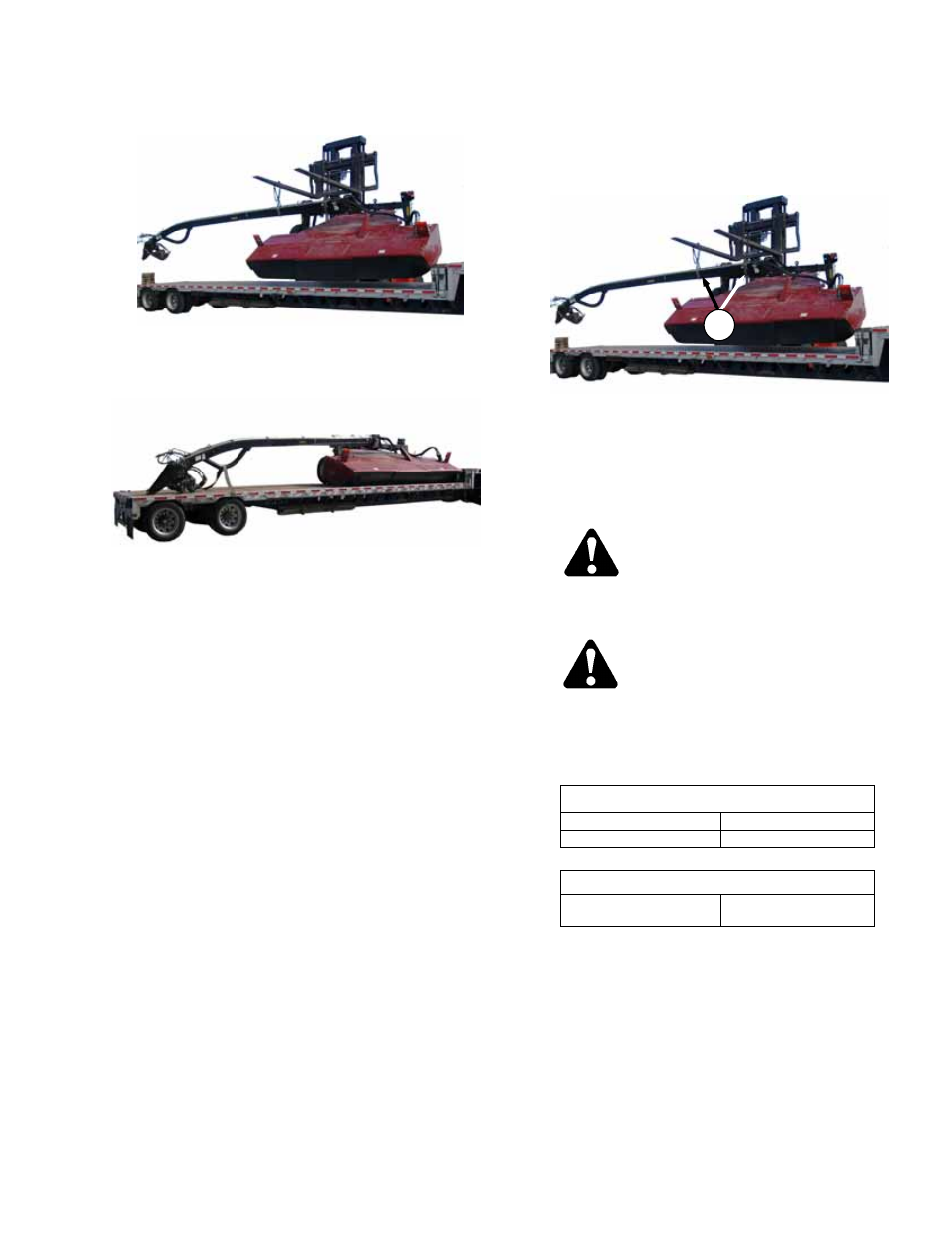

l. Slowly drive to flatbed and raise mower

conditioner.

m. Lower mower conditioner onto flatbed. Blocking

is not required. Remove slings from mower
conditioner.

n. Secure mower conditioner to flatbed with straps.

6.12.4.2 Unloading

a. Remove tie downs.
b. Approach mower conditioner from backside with

forklift.

c. Locate two lifting slings (A) around APT and

frame approximately as shown and attach to fork
lift with chains.

NOTE

Adjust position of slings so that mower
conditioner is lifted evenly.

CAUTION

To avoid injury to bystanders from being
struck by machinery, do not allow persons to
stand in loading area.

CAUTION

Equipment used for unloading must meet or
exceed the requirements specified below.
Using inadequate equipment may result in
chain breakage, vehicle tipping or machine
damage.

LIFTING VEHICLE

Min. Lifting Capacity

8000 lb. (3630 kg)

Min. Lifting Height

15 ft. (4.5 m)

CHAIN

Overhead Lifting

Quality (1/2 Inch)

5000 lb. (2270 kg)

Min. Working Load

(continued next page)

A
