MAINTENANCE/SERVICE

Form # 169053

67

Model Year - 2009

7.8.1.2 Installation

DANGER

Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

DANGER

To avoid bodily injury or death from
unexpected start-up or fall of raised
machine; stop engine, remove key and
engage lift cylinder lock-out valves before
going under machine for any reason.

CAUTION

Exercise caution when working around the
blades. Blades are sharp and can cause
serious injury. Wear gloves when handling
blades.

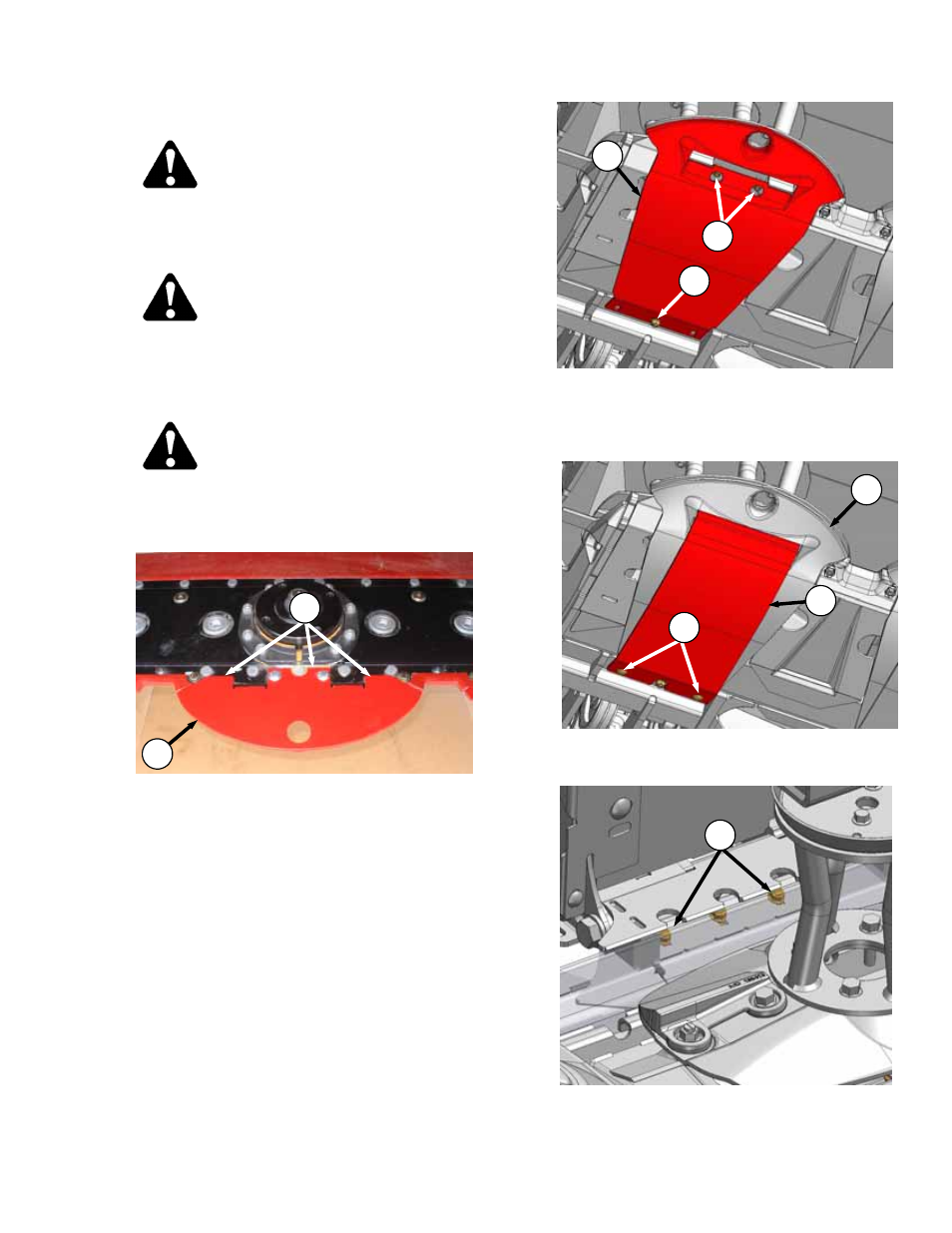

a. Locate forward end of rock guard (D) onto

cutterbar and engage tabs (F) onto cutterbar.

b. Raise aft end of rock guard (D) and install the

long bolt (E) and nut.

c. Install the two shorter forward bolts (C) and nuts.

Tighten bolts.

d. Slip forward end of skid shoe (B) into forward

end of rock guard (D).

e. Lift aft end and install two bolts (A) and nuts.

Tighten bolts from topside of cutterbar.

C

D

E

D

F

A

B

D

A
