MAINTENANCE/SERVICE
Form # 169053
77
Model Year - 2009
b. Install driveline deflector as follows:
CAUTION
Cutter blades have two cutting edges.
Exercise caution when working around the
blades. Blades are sharp and can cause
serious injury. Wear gloves when handling
blades.

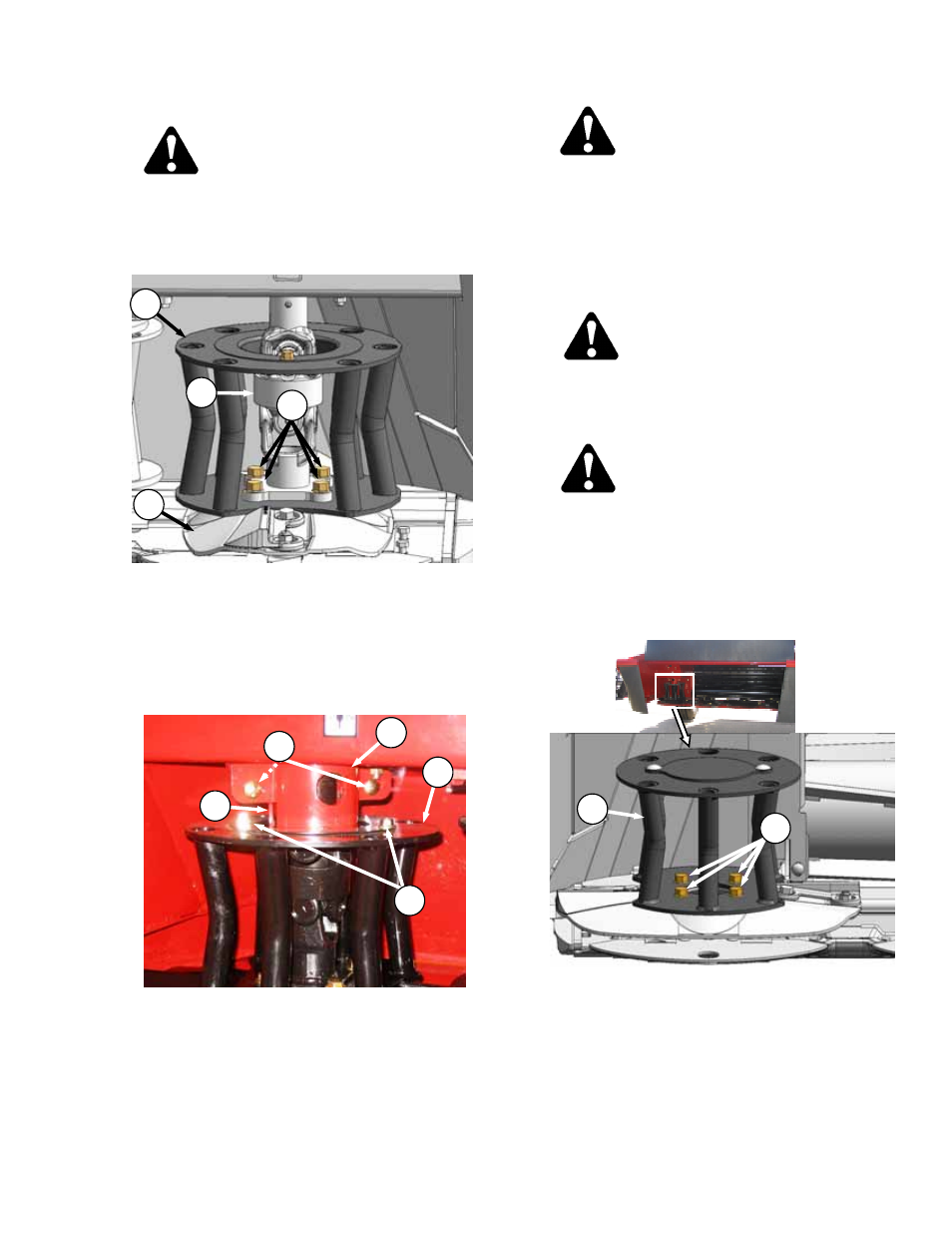

1. Slide driveline (G) upward onto shaft, locate
deflector (A) over driveline, and position
deflector on disc (H).
2. Align cut-outs in base of deflector with cutter
blades.
3. Install four bolts (F), and torque to 92 ft·lbf
(125 N·m).
4. Position guard (E) and tighten bolts (D).
5. Position guard (C) and attach with two bolts
(B).
6. Remove block of wood if used.
WARNING
Ensure cutterbar is completely clear of
foreign objects. These objects can be
ejected with considerable force when the
machine is started and may result in serious
injury or machine damage.
7. Close cutterbar doors.
7.8.6.2 Driven Deflector – 13 Ft
DANGER
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.
CAUTION
Exercise caution when working around the
blades. Blades are sharp and can cause
serious injury. Wear gloves when handling
blades.
a. Remove driven deflector as follows:
1. Place a block of wood between two discs to
prevent deflector from turning.
2. Remove four bolts (K) attaching deflector (J)
to disc and remove deflector.
b. Install deflector as follows:
1. Position deflector (J) on disc and install bolts
(K) and torque to 92 ft·lbf (125 N·m).
2. Remove block of wood if used.
3. Close cutterbar doors.
F
G
H
A
B
C
D
E
A
J
K
