MAINTENANCE/SERVICE

Form # 169053

71

Model Year - 2009

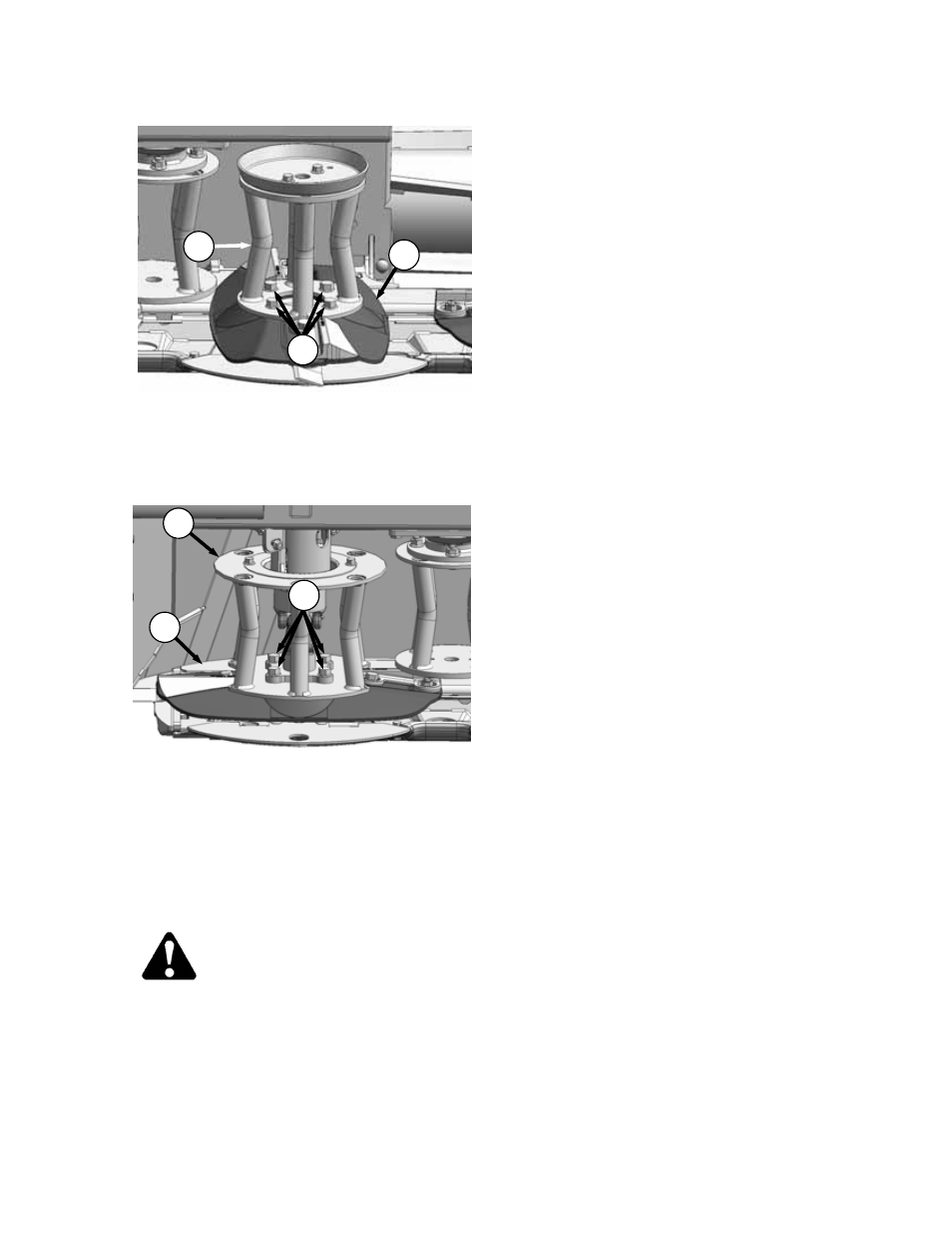

d. If installing end disc;

1. Position new disc (F) on spindle ensuring it

is 90 degrees to adjacent discs.

2. Install deflector (E) and secure with four

bolts (D).

3. Tighten bolts to 92 ft·lbf (125 N·m).

e. If driveline disc is being installed;

1. Lift deflector (H) and driveline and slide disc

(J) onto spindle.

2. Locate deflector (H) and driveline onto disc

(J).

3. Install bolts (G) and torque to 92 ft·lbf (125

N·m).

f. Remove block of wood if used.

WARNING

Ensure cutterbar is completely clear of
foreign objects. These objects can be
ejected with considerable force when the
machine is started and may result in serious
injury or machine damage.

g. Close cutterbar doors.

D

E

F

G

J

H
