OPERATION

Form # 169053

25

Model Year - 2009

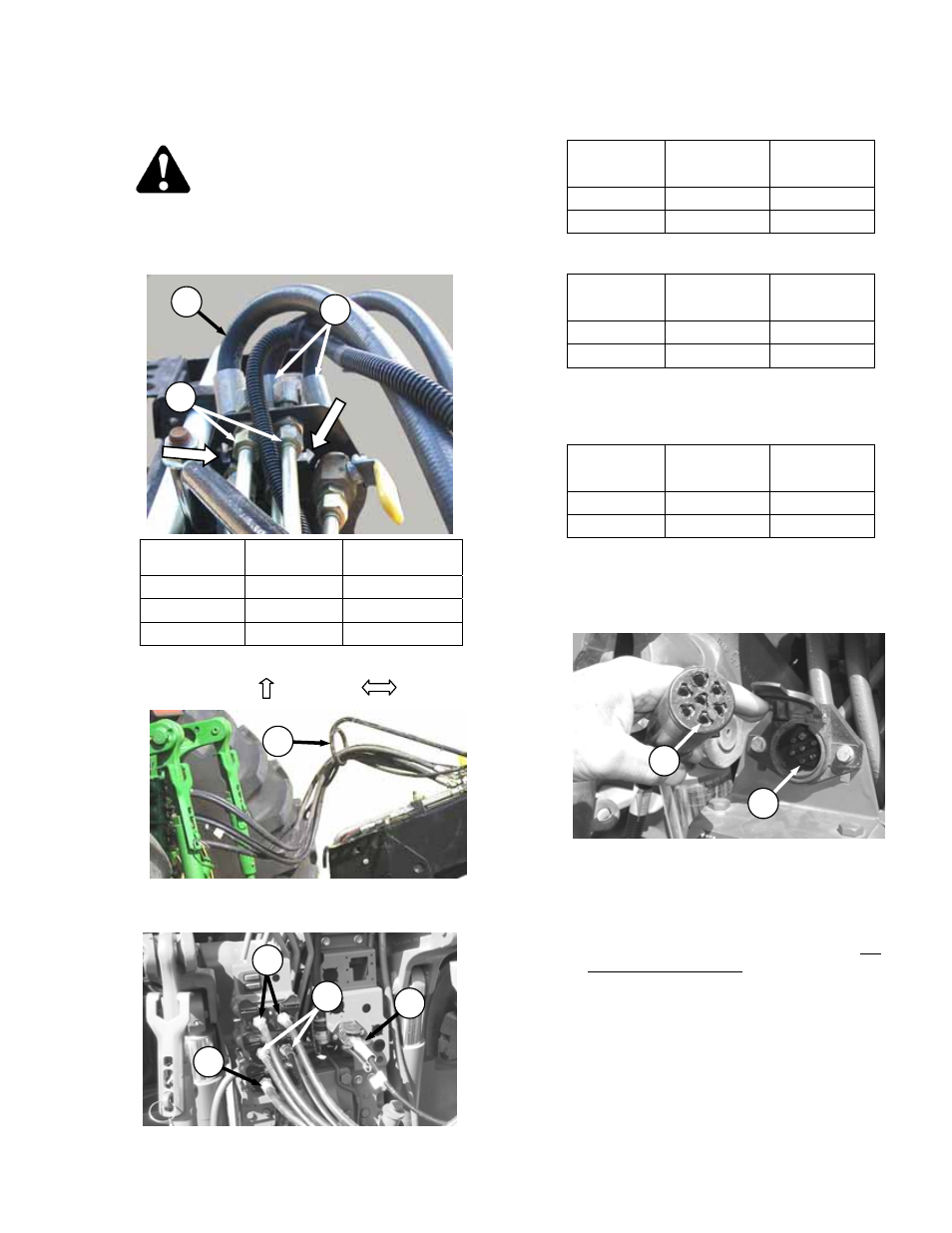

6.4.3 Hydraulic

Connections

WARNING

Do not use remote hydraulic system
pressures over 3000 psi (20684 kPa). Check
your tractor manual for remote system
pressure.

SYSTEM HOSE TRACTOR

HYDRAULICS

Steering

A (2 Hoses)

Control 1

Lift

B (1 Hose)

Control 2

Header Tilt

C (2 Hoses)

Control 3

NOTE

Arrows cut into plate indicate system for
hoses. LIFT STEERING

a. Ensure hoses are routed through guide (E) to

provide proper hose arc as shown.

b. Connect two steering cylinder hoses (A) as

follows:

CONTROL

LEVER

POSITION

CYLINDER

MOVEMENT

MOWER-

CONDITIONER

DIRECTION

Forward

Extend Right

Backward

Retract Left


c. Connect

one

lift cylinder hose (B) as follows:

CONTROL

LEVER

POSITION

CYLINDER

MOVEMENT

HEADER

MOVEMENT

Forward

Retract Lower

Backward

Extend Raise


d. Connect two header tilt cylinder hoses (C) as

follows: (Not required with mechanical center
link).

CONTROL

LEVER

POSITION

CYLINDER

MOVEMENT

HEADER

MOVEMENT

Forward

Retract Lower

Backward

Extend Raise


e. Connect the mower-conditioner wiring harness

connector (D) to tractor. The connector is
designed to fit tractors equipped with a round 7-
pin receptacle (SAE J560).

IMPORTANT

Older model tractors will have Pin #4 (F)
energized as an accessory circuit. The
R80 mower conditioner uses this pin
position (G) for brake lights. Check that
Pin #4 in the tractor receptacle is not
constantly energized – see tractor’s
operator’s manual and remove the
appropriate fuse if required.

F

G

B

A

C

E

A

C

B

D
