MAINTENANCE/SERVICE

Form # 169053

102

Model Year - 2009

7.10 HYDRAULIC DRIVE SYSTEM

The pull-type mower conditioner is hydraulically
powered using the following systems:

• A self-contained hydraulic system to operate

the header functions.

• The tractor remote system to operate the

header lift cylinders, steering, and header tilt
if equipped.

7.10.1 Reservoir

The mower conditioner's self-contained
hydraulic system uses the APT of the machine
for the hydraulic oil reservoir.

7.10.1.1 Oil Level

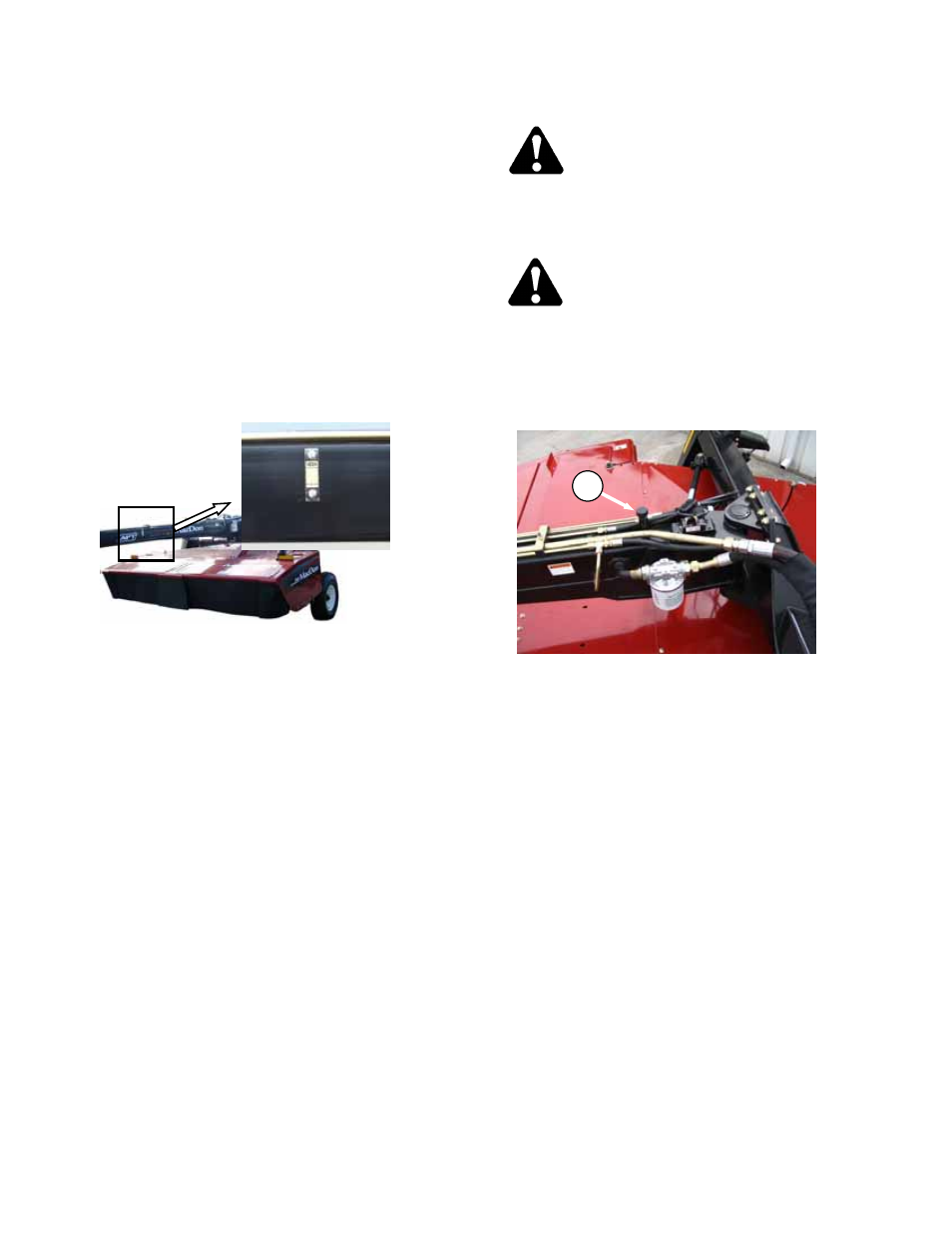

Check oil level daily (before start-up) at the sight
gauge at rear of APT. Oil level should be at or
near FULL mark on the gauge when top surface
of APT is level and oil is cold.

7.10.1.2 Adding Hydraulic Oil

WARNING

To avoid injury from contact with hot oil, do
not remove cap when system is hot. When
removing cap, unscrew it slowly to vent the
build-up of air pressure in the reservoir.

DANGER

Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

a. Level APT by parking on level ground or with the

jack.

b. Slowly unscrew cap (A) from filler tube.
c. Add single grade trans-hydraulic oil until level is

between ADD and FULL marks on gauge. See
Section 7.3.2 Recommended Lubricants.

d. Replace

cap.

7.10.1.3 Draining Reservoir

NOTE

Change hydraulic oil every 500 hours or 3
years.

NOTE

A drain pan with a capacity of 180 litres
(48 U.S. gallons) will be required.

NOTE

Mower conditioner must be disconnected
from tractor. Refer to Section 6.5 Mower
Conditioner/Tractor Unhook.

a. Remove filler cap (A).

(continued next page)

A
