OPERATION
3. Push in shield to engage lower latch (A).
4. Use tool (B) to lock lower latch (A).

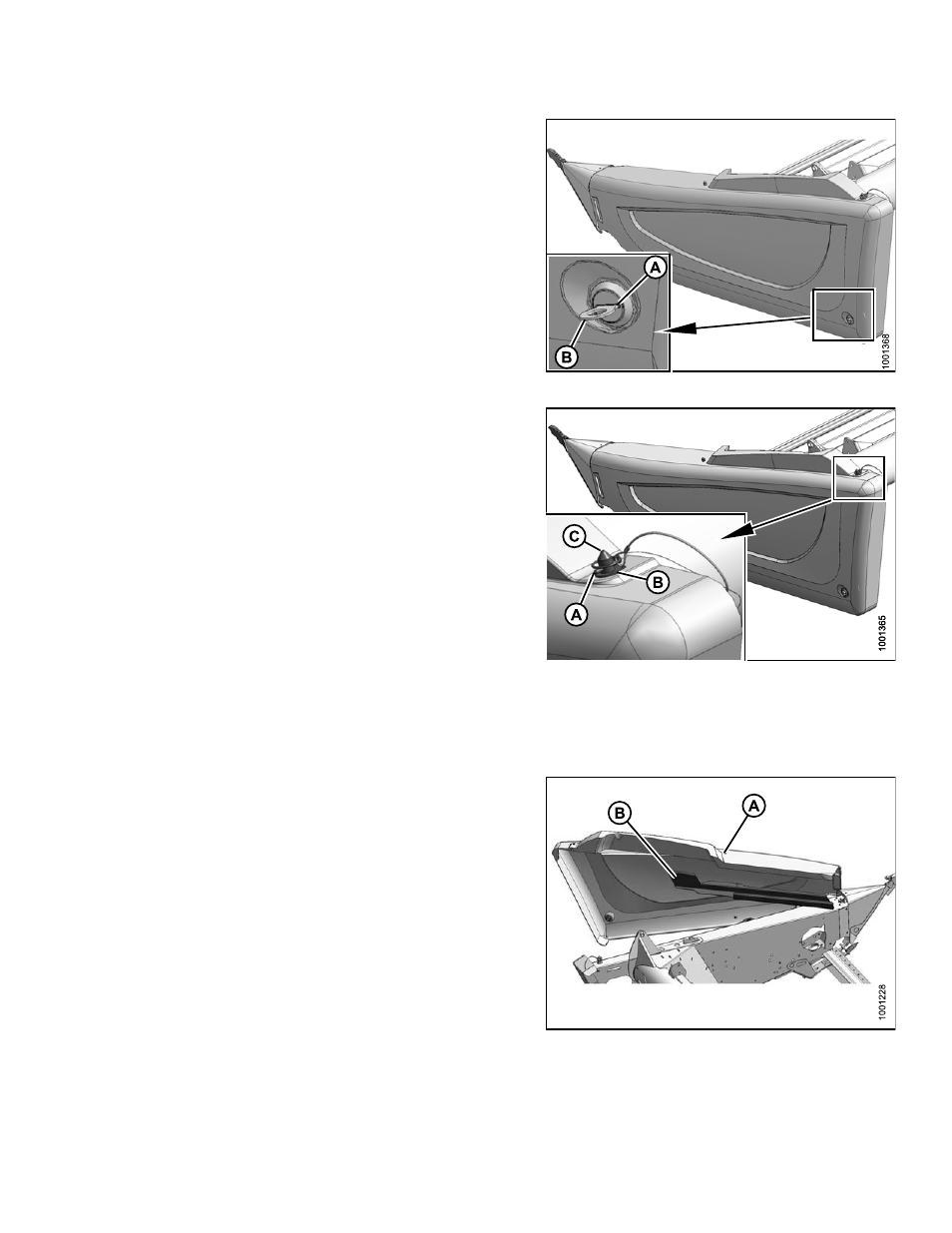

Figure 4.11: Endshield
5. Replace tool (B) and lynch pin (A) on top pin (C).
Figure 4.12: Endshield Pin
Removing Endshields
To remove an endshield, follow these steps:
1. Open endshield. Refer to Opening Endshields, page
37 .
2. Remove acorn nut (A) that secures the endshield to
support (B).
3. Lift endshield off support (B).
Figure 4.13: Endshield
169899 39 Revision A
