MAINTENANCE AND SERVICING

6.9.5

Replacing Drive Chain on Single Reel

Removing Drive Cover

1.

Remove the reel drive cover (A) as follows:

a.

For SINGLE REEL DRIVE, remove the four
bolts (B) that secure the cover (A) to the reel drive.

b.

For DOUBLE REEL DRIVE, remove the six
bolts (B) that secure the upper cover (A) to the
reel drive and to the lower cover (C).

NOTE:
The lower cover (C) may also be removed by
taking off the three bolts (D).

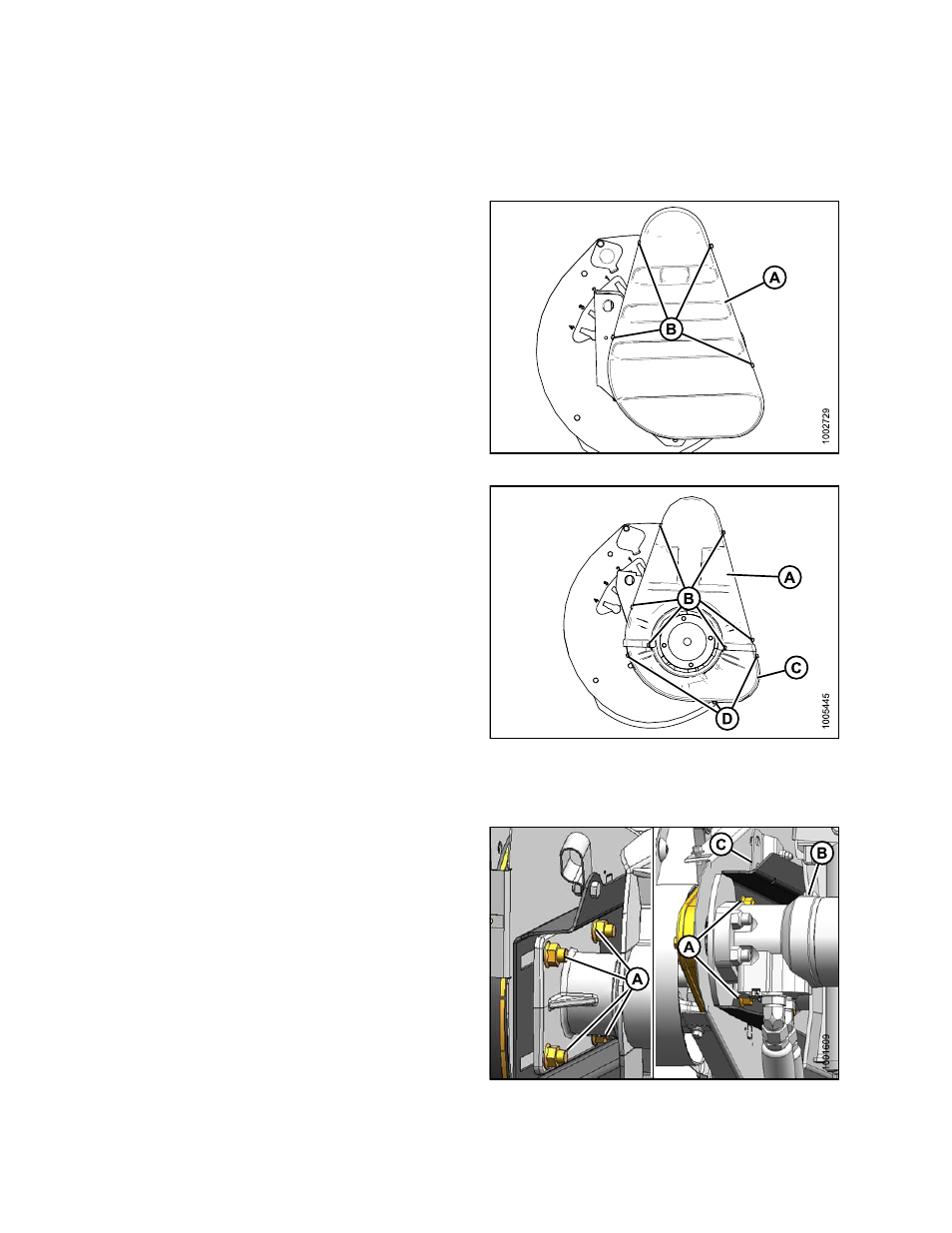

Figure 6.249: Single Reel

Figure 6.250: Double Reel

Loosening Drive Chain

1.

Loosen nuts (A). Slide motor (B) and motor mount (C)
down towards reel shaft.

Figure 6.251: Reel Drive

169899

238

Revision A
