MAINTENANCE AND SERVICING

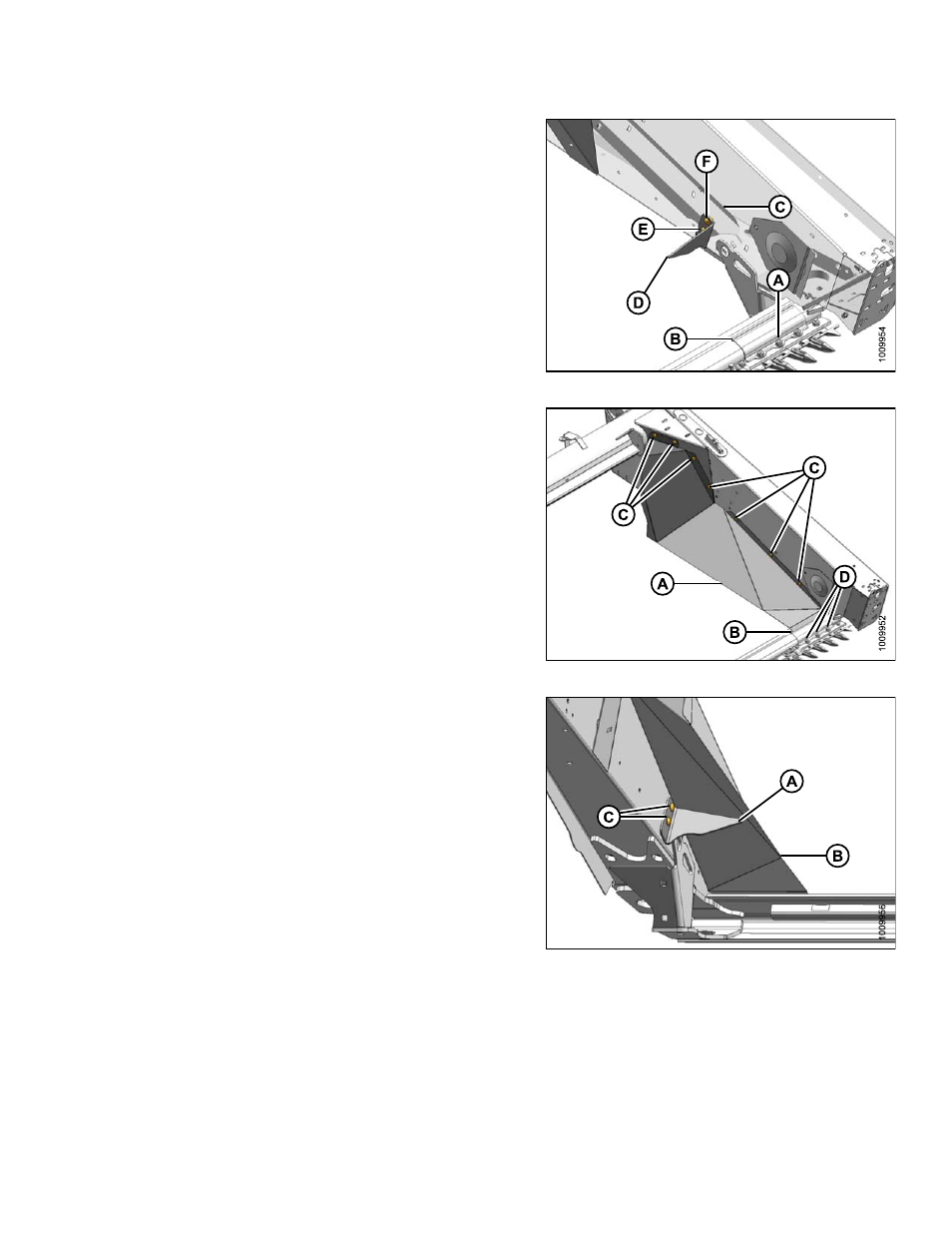

4. Open endshield.
5. Loosen bolts (A) on cutterbar until retainer (B) is loose.
6. Remove existing bolt that secures belt guide (C) on
opposite side of endsheet.
7. Locate support (D) as shown and re-install bolt (E), with
nut on far side.
8. Install a second 3/8 in. x 3/4 carriage bolt (F) and lock
nut. Do not tighten bolts.
Figure 6.145: Deflector Support
9. Position deflector (A) as shown and adjust forward
edge for best fit on cutterbar. Slide deflector under
retainer (B).
10. Loosely install seven 3/8 in. x 3/4 carriage bolts (C)
with lock nuts to attach deflector to endsheet. Bolt
heads face inboard.
11. Adjust position of deflector to obtain best fit at cutterbar
and aft edge. Tighten bolts (C) as required to maintain
best fit.
12. Tighten bolts (D) on retainer (B). Torque to 65 lbf·ft
(88 N·m).
Figure 6.146: Wide Deflector
13. Adjust position of support (A) so that tip contacts the
deflector (B). Tighten bolts (C).
14. Repeat above steps for opposite end.
Figure 6.147: Deflector Support
