MAINTENANCE AND SERVICING
Installing Plastic Fingers
WARNING
To avoid bodily injury from fall of raised reel, always
engage reel safety props before going under raised
reel for any reason.
1. Position finger on rear of finger tube and engage lug at
bottom of finger in lower hole in finger tube.
2. Gently lift top flange and rotate finger until lug in top
flange engages upper hole in finger tube.

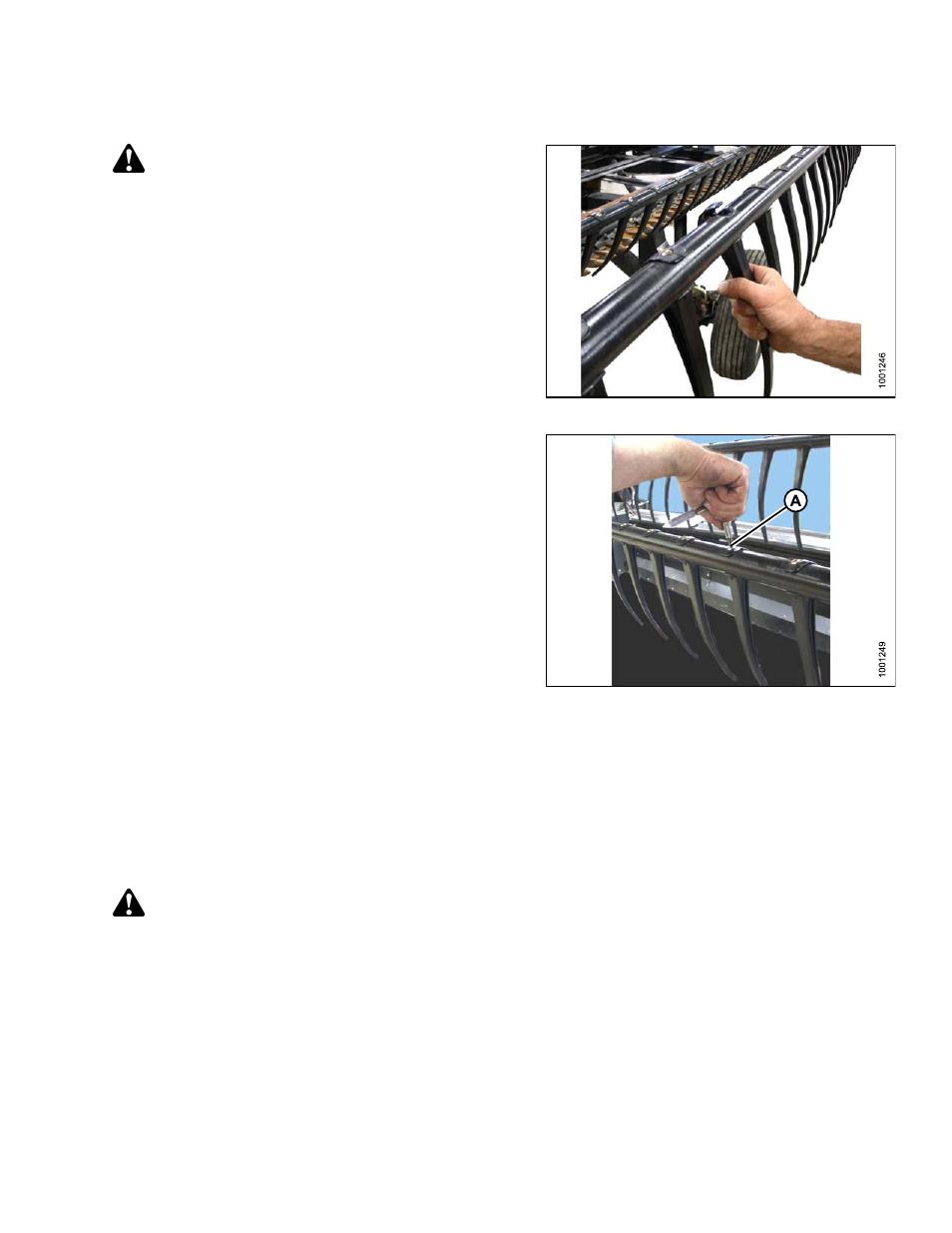

Figure 6.167: Installing Finger
IMPORTANT:
Do NOT apply force to finger prior to tightening mounting
screw. Applying force to finger without screw tightened
will break finger or shear off locating pins.
3. Install screw (A) and torque to 75–80 in·lbf
(8.5–9.0 N·m) with a Torx ® -Plus 27 IP socket wrench.
Figure 6.168: Installing Finger
6.8.5 Tine Tube Bushings
Removing Bushings from 5-, 6- or 9-Bat Reels
NOTE:
If only replacing the cam end bushing, Refer to Cam End Bushings.
Center Disc and Tail-End Bushings
WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.
1. Lower header, raise reel fully, and engage reel safety props.
IMPORTANT:
Ensure tine tube is supported at all times to prevent damage to the tube or other components.
