MAINTENANCE AND SERVICING
Removing Drive Cover
1. Remove the six bolts (B) that secure the upper cover
(A) to the reel drive and to the lower cover (C).
NOTE:
The lower cover (C) may also be removed by
taking off the three bolts (D).

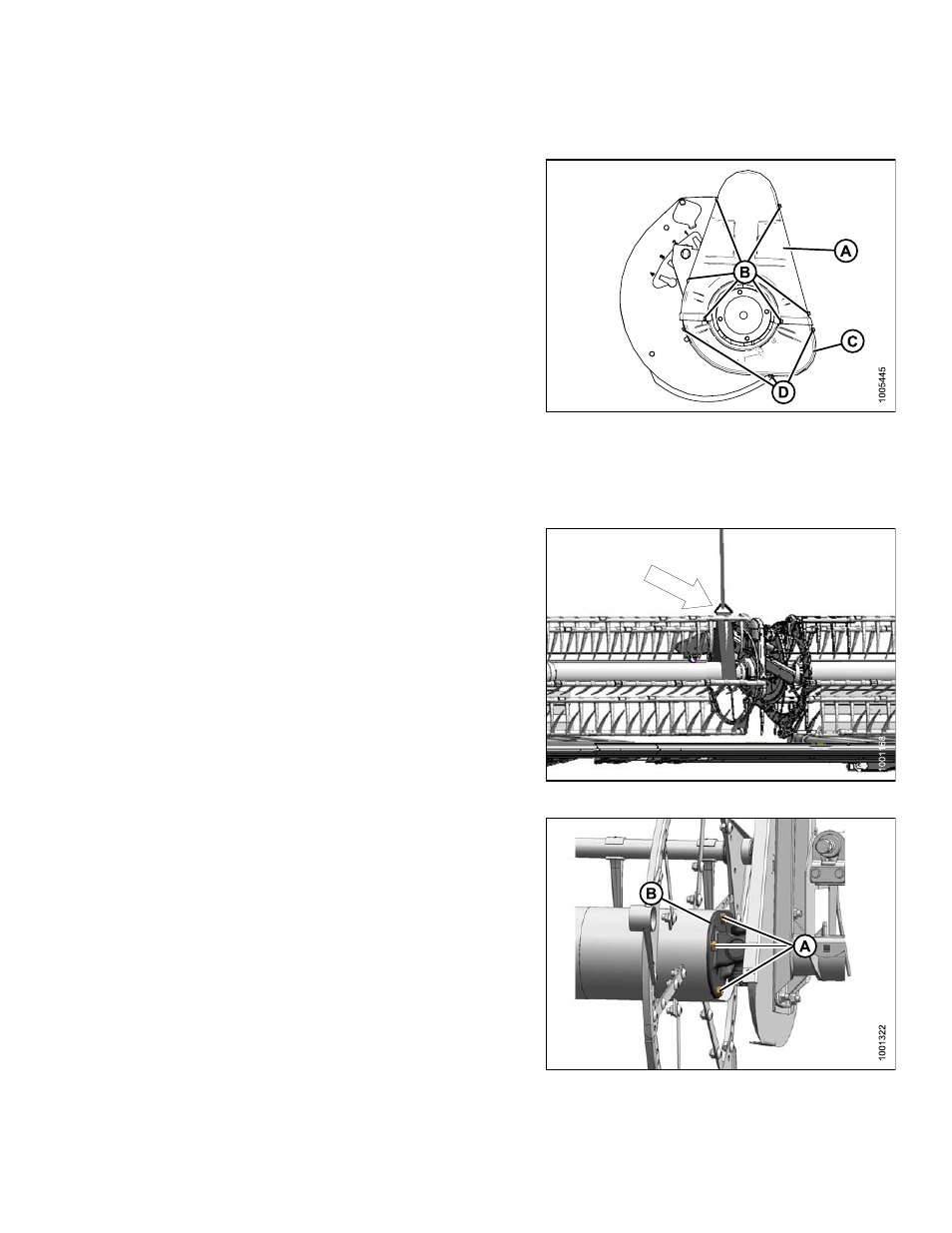

Figure 6.216: Double Reel
Removing Double Reel U-Joint
To remove the U-joint, follow these steps.
1. Support inboard end of right reel with a front end loader
and nylon slings (or equivalent setup).
IMPORTANT:
To avoid damaging or denting center tube, support reel
as close as possible to the end disc.
Figure 6.217: Supporting Reel
2. Remove four bolts (A) attaching reel tube to U-joint
flange (B) and move reel sideways to disengage stub
shaft from U-joint.
Figure 6.218: U-Joint
169899 225 Revision A
