MAINTENANCE AND SERVICING
6. Remove fasteners securing deflector to endsheet.
Nuts (A) are accessible from endshield side. Nuts (B)
on uppermost fasteners are accessible from behind
the deflector (C).
7. Remove the deflector (C).

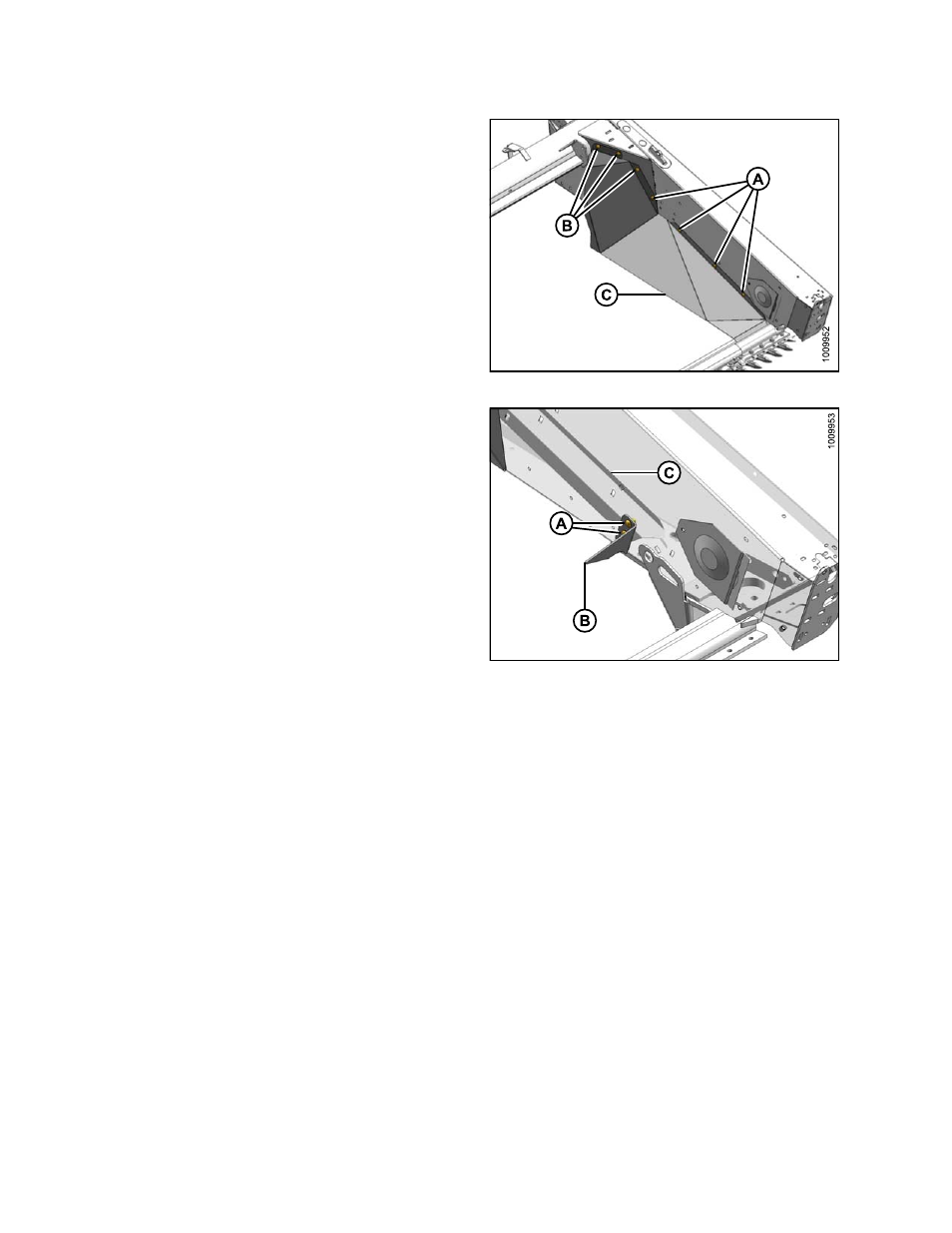

Figure 6.143: Wide Deflector
8. Remove bolts (A) and remove deflector support (B).
9. If support (B) will not be re-installed, replace lower
bolt (B) that holds belt guide (C) on opposite side of
endsheet.
10. Repeat above steps for opposite end.
Figure 6.144: Deflector Support
Installing Wide Draper Deflectors
To install draper deflector, follow these steps: Left installation is illustrated.
1. Raise reel fully and lower header to ground.
2. Shift decks to allow work space at one end of header if hydraulic deck shift installed, otherwise move decks
manually after shutting down windrower.
3. Stop engine, remove key, and engage reel safety props.
169899 196 Revision A
