BigStuff3 Pro SEFI System
Version 2.1 – February 2011
11
Harness
Label
Wire
Color/Connector
Type
Label
Definition
Connect To
Further Details
MAP Green,
3-way
Packard
connector
Manifold
Absolute
Pressure
Sensor
Connect to the
MAP sensor
Crank Black,
2-way
Packard
connector with a
separate ground
wire (3/8” ring)
Crankshaft
position
sensor input
Connect to
crankshaft sensor
System includes a
mating 2-way Packard
connector & terminals
2-Step
Single yellow
wire
2-Step trigger
function
Clutch or trans
brake switch
feature.
Boost Black
4-way
connector with an
orange seal
Staged or
PWM Boost
Control
Connects to
optional 4-way
connector to
solenoid or
PWM boost
valve
Main Fuse &
Relay
N/A N/A N/A
Vehicle
Battery Fuse
N/A N/A N/A
Header
Connector
N/A
No label, see
link to photo
in “Further
Details”
Column
BigStuff Engine
Control Unit
(ECU)
Injector
Harness
Black, 10-way
Packard
connector
Injector
harness
connector
Connect to main
wire harness

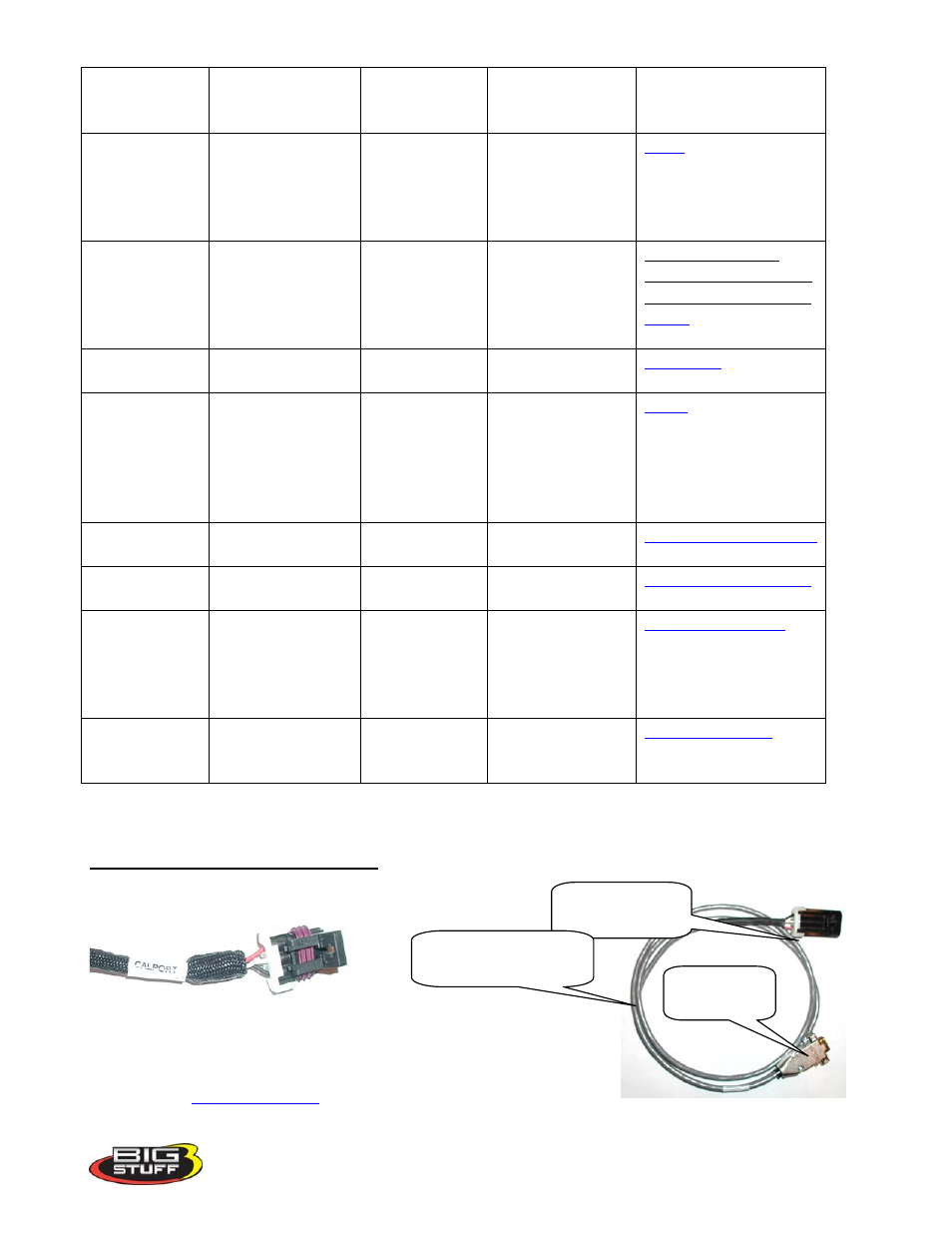

The paragraphs below further support the information outlined in the table above.
Calport - ECU to PC interface cable
Do not connect the communications cable until all the software is
installed on the PC that will interface with the GEN3 system. See
the “Calport Resolution” document on our website for more
information.
3-way, black
Packard connector
AMP RS-232
connector
Communications Cable
(supplied)
