T-ARMOR
74

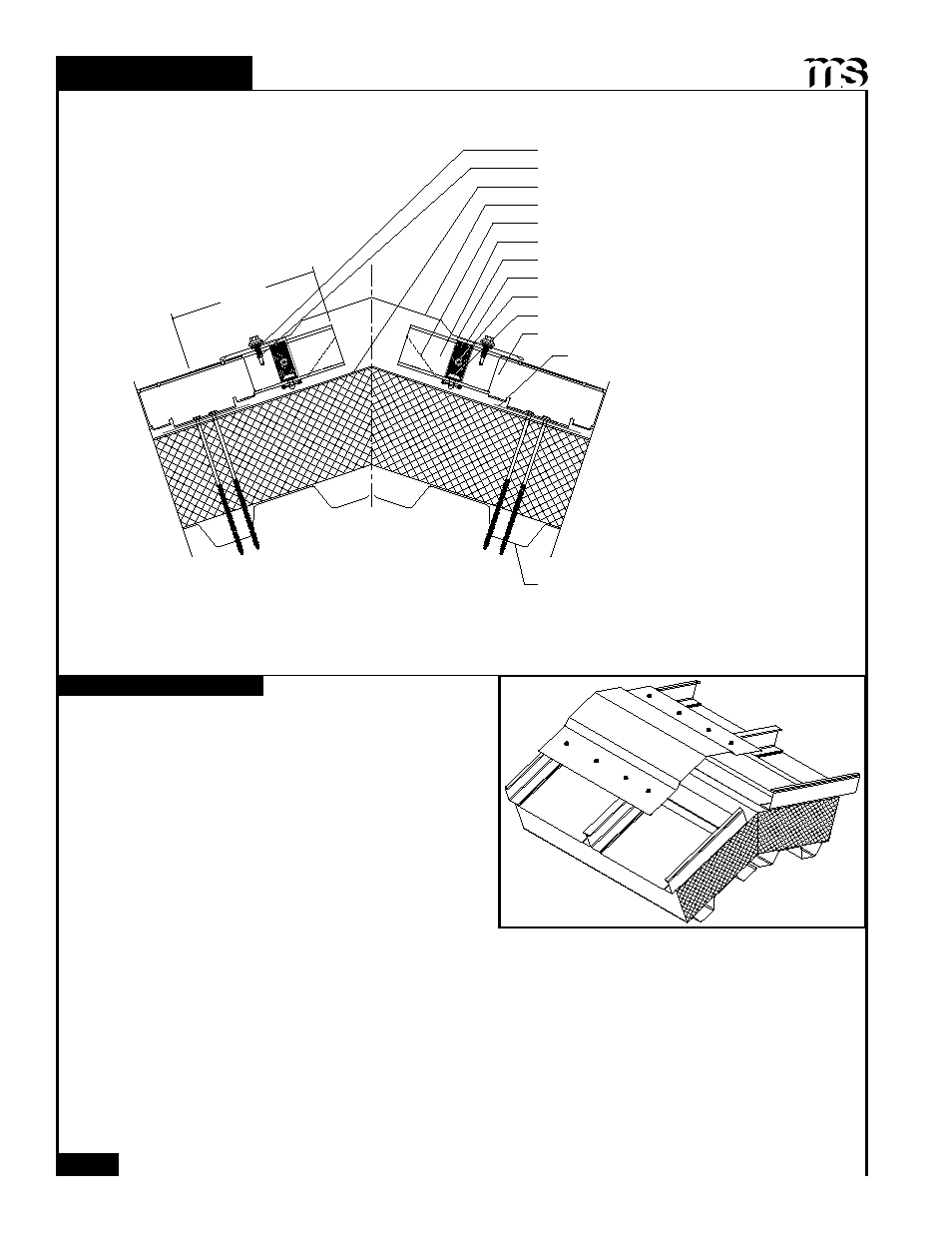

RIDGE/HIP - FLOATING
INSTALLATION NOTES
1. Once panels have been installed, apply a row of Double
Bead Tape Sealant across panel, up and over all ribs
approximately 2" to 3" from panel end.
2. Field-cut Z-Closure to fit between the panel ribs, install
Z-Closure over Tape Sealant. Before continuing, make
sure Z-Closure placement will accommodate SSR Ridge
flashing.
3. Once Z-Closure is set in Tape Sealant, fasten through
Z-Closure, Tape Sealant and T-Armor panel with 9 /
32
"
Bulb-Tite Rivets and one #12-14x1" Self Driller N/W
screw in the rib (see page 52 for number of fasteners
required).
4. Install SSR Ridge flashing by applying Double Bead Tape Sealant to the top of the Z-Closures, locating the
SSR Ridge and securing with 3 Pop Rivets per panel.
5. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of
2" placing a bead of Tube Sealant between the flashings and secure with Pop Rivets, 2.5" oc.
Moisture Barrier (by others)
Double Bead Tape Sealant
1 /
4
"-14 x 7 /
8
" Stitch XL (3 per panel)
Clip w/ (2) #14-13 Deck Screws
Bearing Plate
SSR Ridge
Panel Turn Up
Double Bead Tape Sealant
#12-14x1" SD N/W (1 per rib)
Z-Closure (see Page 75)
T-Armor Panel
CL
1 /
2
:12 Slope
Minimum
*Can only be used with the
low and high clip systems
9 /
32
" Bulb-Tite Rivet (see page 52)
Metal Decking (By others)
*Panel cap not shown for clarity
9" max
