Metal Sales T-Armor Series - Manual (Page 57)

© Metal Sales Manufacturing Corporation / Subject to change without notice 09/14
57
T-ARMOR
CAUTION
In locations where heavy rainfall or severe ice and
snow may occur, Metal Sales' standard gutters may
not be suitable for use.
INSTALLATION NOTES
All Eave flashings must be installed prior to panel
installation.
1. Install new Eave flashing over top of rigid board
insulation to hold Eave flashing into place, fasten to
substrate at 4'-0" oc.
2. Apply a continuous row of Double Bead Tape Sealant
across the Eave flashing.
3. Install Offset Cleat at Double Bead Tape Sealant
locations and secure with #14-13 Deck Screws at 1'-0" oc.
4. Install the panels by hooking the hemmed edge of the
panel (see 76 for Hemming Instructions) around the end of
the Offset Cleat.
5. Apply Tube Sealant up the side and across the top of the
panel ribs before installing the next panel.
6. Install the Post Hung Gutter by sliding it behind the Eave.
Install the Post Hung Gutter Hanger at 2'-0" oc fastening through the Eave into the roof framing.
7. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of
2" placing two rows of Tube Sealant between the flashings and secure with Pop Rivets, 2.5" oc.

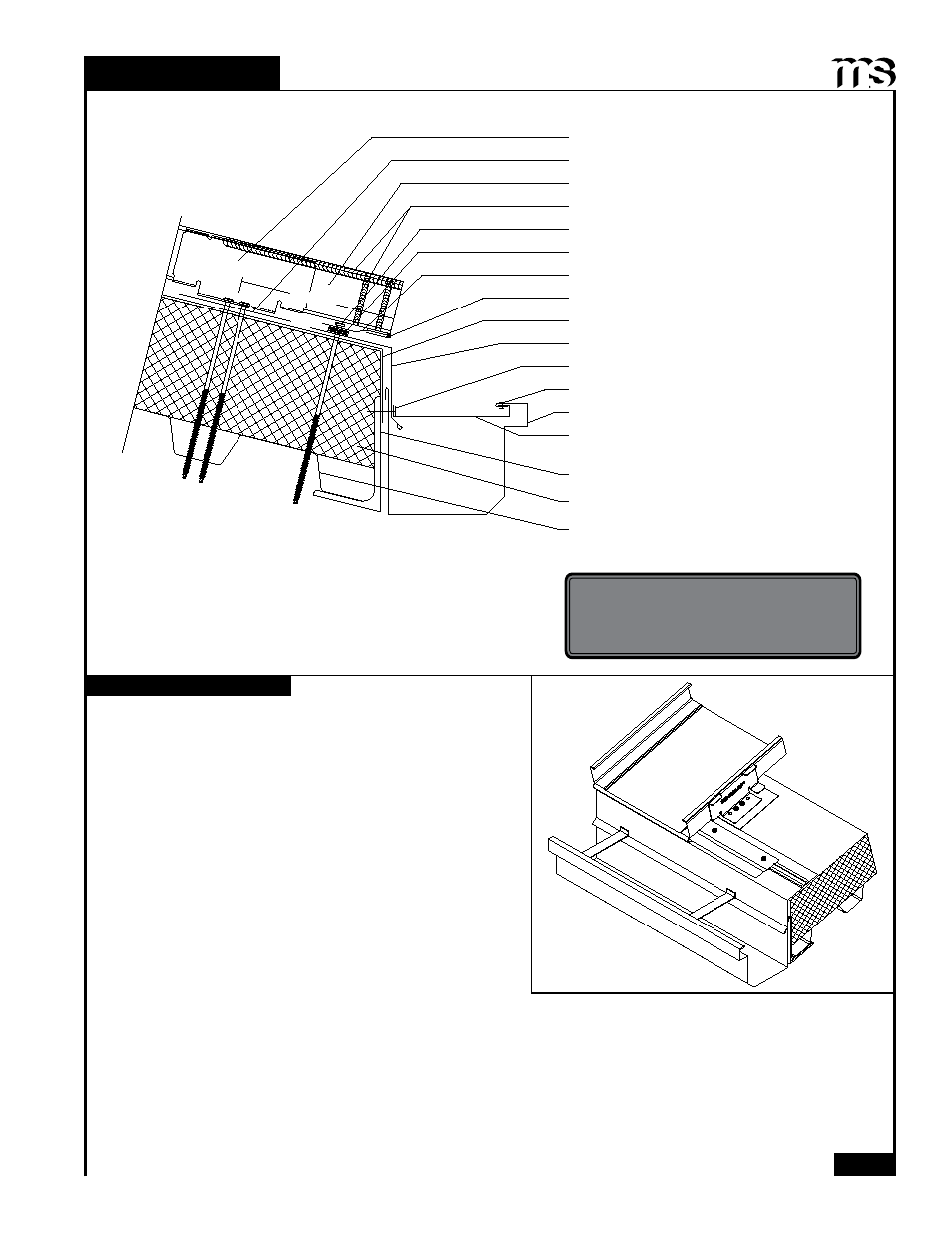

POST HUNG GUTTER - FLOATING
Double Bead Tape Sealant
Eave
Bearing Plate
Panel Clip w/ (2) #14-13 Deck Screws
T-Armor Panel
Fasteners (By others)
Bent Angle (By others)
Rigid Insulation By others)
Metal Decking (By others)
*Panel cap not shown for clarity
Tube Sealant (In panel hem, see page 58)
Tube Sealant (between panel ribs)
#14-13 Deck Screws (1'-0" oc)
Offset Cleat
Moisture Barrier (By others)
1 /
8
"x 3 /
16
" Pop Rivet (1 per Hanger)
Post Hung Gutter
Post Hung Gutter Hanger (2'-0" oc)
1 /
2
:12 Slope
Minimum
9" max
