T-ARMOR

ENDWALL - FIXED

INSTALLATION NOTES

1. Install Eave Plate and fasten through wood blocking and

into metal deck with #14-13 Deck Screws at 1'-0" oc. If

more than one Eave Plate is required then butt the ends

together.

2. Place panels on to the Eave Plate and apply a row of

Double Bead Tape Sealant across panel, up and over all

ribs approximately 2" to3" from panel end.

3. Field-cut Z-Closure to fit between the panel ribs, install

Z-Closure over Tape Sealant. Before continuing make

sure Z-Closure placement will accommodate Pitch Break.

4. Once Z-Closure is set in Tape Sealant, fasten through

Z-Closure, Tape Sealant, T-Armor panel and into the

Eave Plate with #12-14x1" Self Driller N/W screws (see

page 75 for number and location of fasteners required).

5. Install Pitch Break by applying Double Bead Tape

Sealant to the top of the Z-Closure and hooking the open

hem around the Z-Closure. Fasten into the wall substrate with fasteners at 1'-0" oc maximum.

6. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of

2" placing a bead of Tube Sealant between the flashings and secure with Pop Rivets, 2.5" oc.

7. Install Counter Flashing, Reglet, or wall panel and fasten to parapet wall with appropriate fastener, 1'-0" oc. If

Counter Flashing or Reglet is used, seal at wall with Tube Sealant.

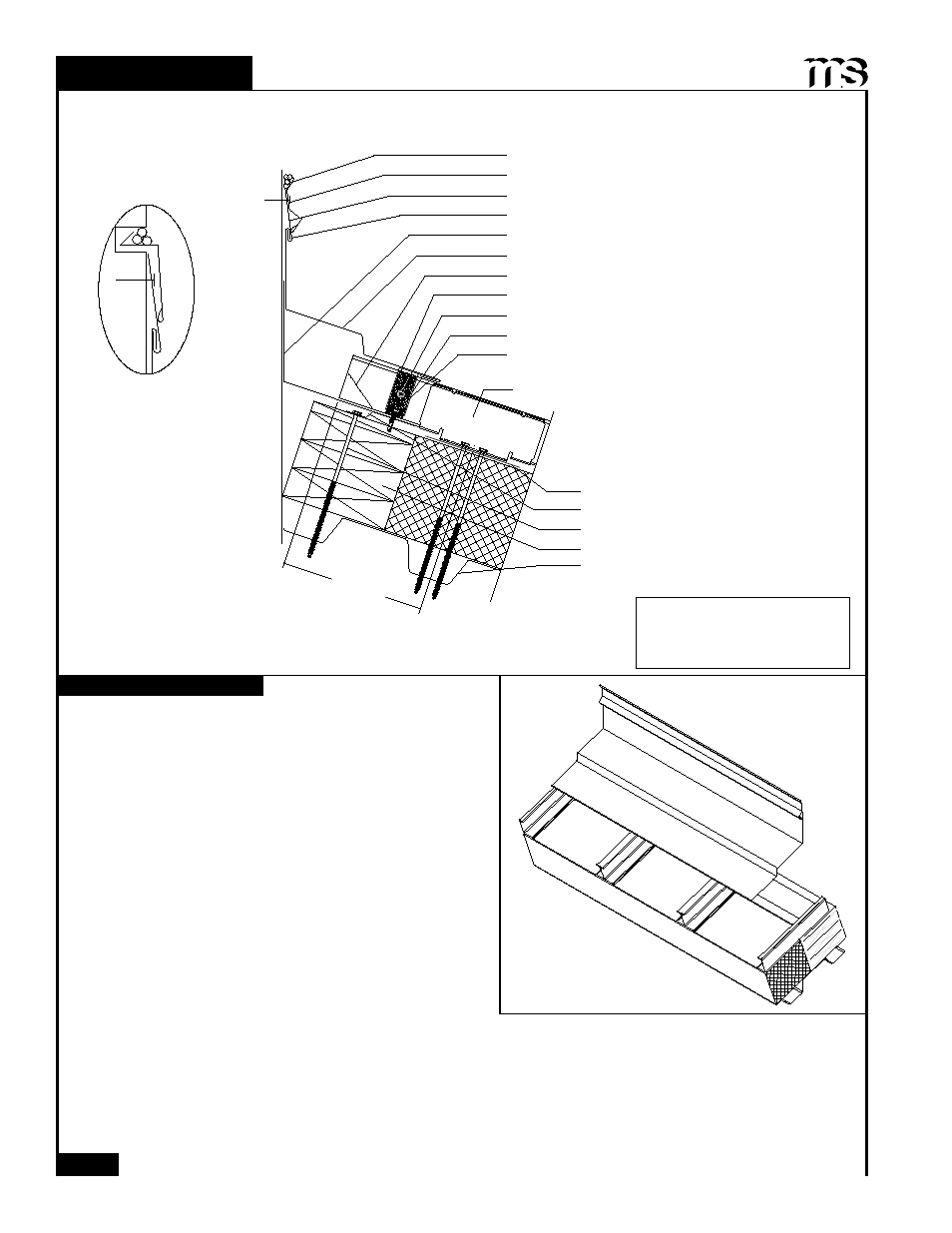

Tube Sealant

Fastener (by others)

Counter Flashing

Moisture Barrier (by others)

Starter

Pitch Break

Panel Turn Up
Double Bead Tape Sealant

#12-14x1" SD N/W (1 per rib)

Z-Closure (see Pg 75)

#14-13 Deck Screws (1'-0" oc)

Clip w/(2) #14-13 Deck Screws

#12-14x1" SD N/W (see Pg 75)

Eave Plate

Bearing Plate

:12 Slope

Minimum

Wood Blocking

Metal Decking (By others)

With Reglet

With Counter

12" max

Additional #14-13 Deck

Screws may be required for

areas with large snow loads

*Panel cap not shown for clarity
